Cisco ASR 1001 Hardware Installation Guide

The following shows all the lead wires installed.

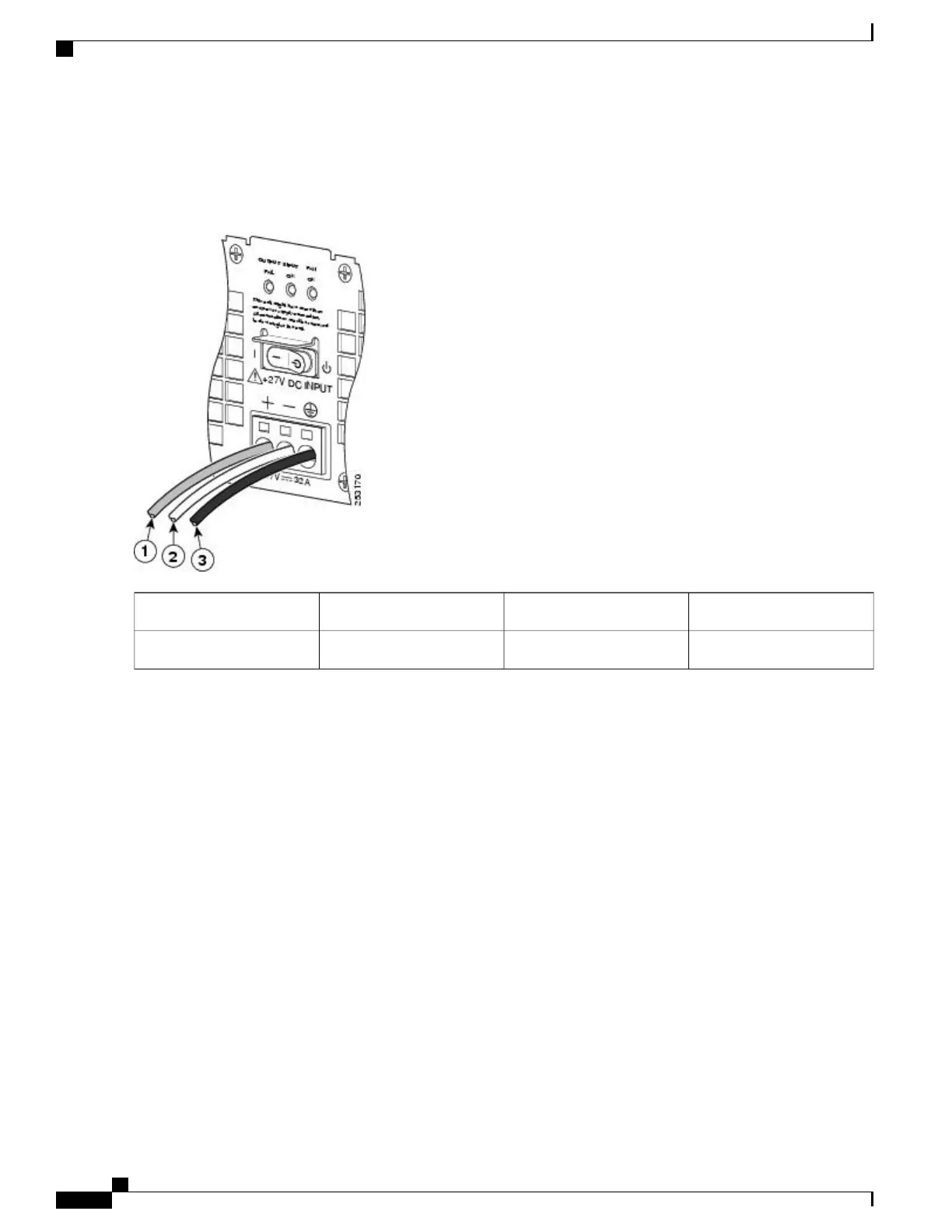

Figure 112: Cisco +24 VDC Power Supply Terminal Block With Lead Wires Installed
Ground lead wire3Positive lead wire1
——
Negative lead wire2
Make sure the stripped end of each lead wire is twisted tightly together. This makes insertion easier. Then make
certain the entire lead wire is inserted all the way into its receptacle. If any exposed wire at the stripped end of
a lead is visible after inserting the lead into its receptacle, remove the lead from the receptacle, use the wire
stripper to cut the stripped end of the lead, and then reinsert.
Note
When securing the ground, positive, and negative +24 VDC-input leads to the power supply faceplate, leave
extra service loop in the ground (GND) lead to ensure that the ground lead is the last lead wire to disconnect
from the power supply if a great deal of strain is placed on all three leads.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
270
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
