Cisco ASR 1001 Hardware Installation Guide

LINK7BITS2
CARRIER8MGMT3
BOOT9AUX4
Cisco integrated RP
STAT LED
10Cisco integrated ASR
1002-SIP10-F LEDs:
PWR, STAT
5

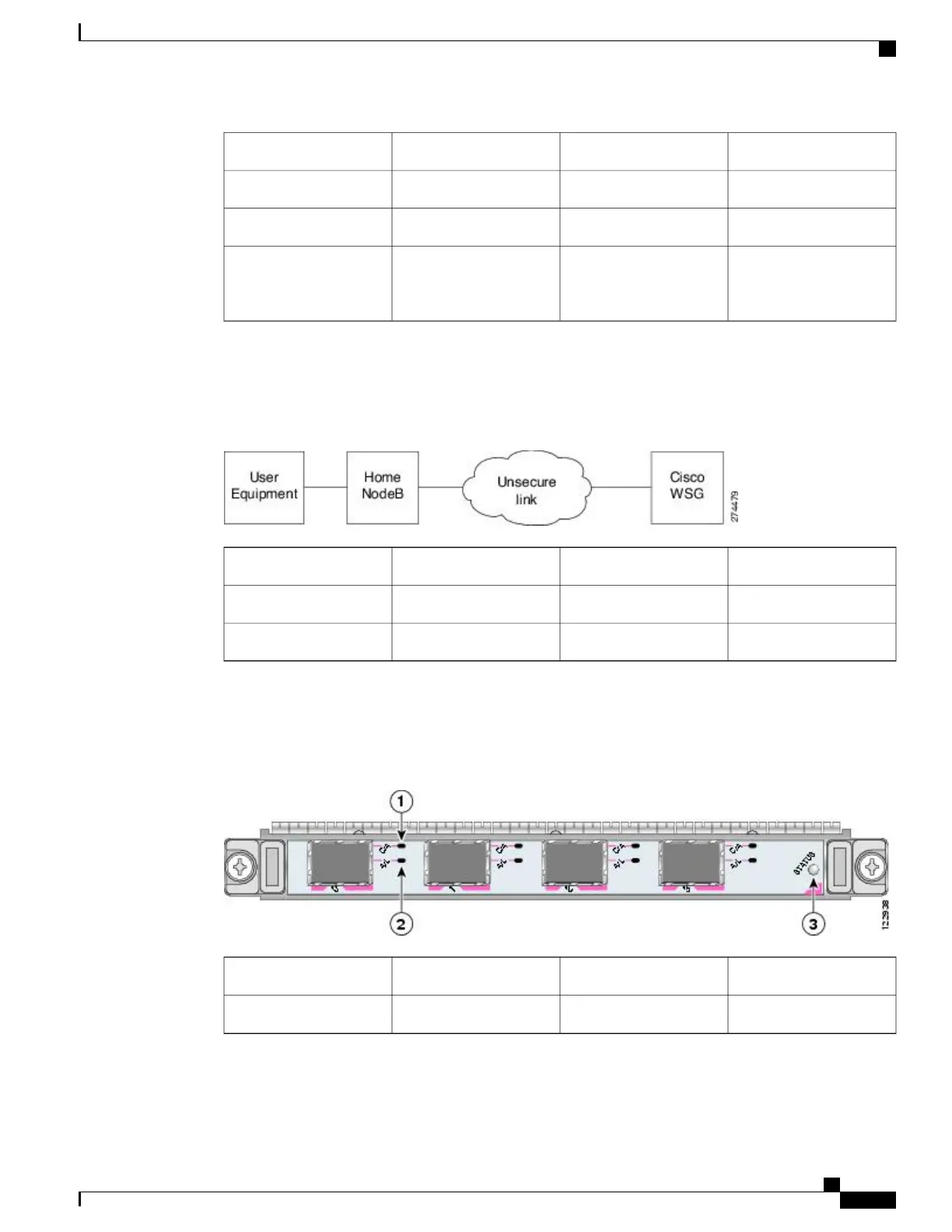

The following image shows the labels for the Cisco ASR 1002-SIP10-F SPA interface processor (SIP). The
ASR 1002-F router has only one half-height removable SPA.
Figure 121: Cisco ASR 1002-SIP10-F SPA Interface Processor
Port 24Cisco ASR 1002-SIP10-F1
Port 15SPA STATUS LED2
Port 06Port 33
The Cisco ASR 1002-F Router SPA has three types of LEDs: two LEDs for each port on the SPA and one
STATUS LED, as shown in the following image.
Figure 122: Cisco ASR 1002-F Router SPA Faceplate
SPA STATUS3C/A (Carrier/Alarm)1
——
A/L (Active/Loopback)2
The following table describes the Cisco ASR 1002-F Router SPA LEDs.
Cisco ASR 1000 Series Router Hardware Installation Guide
281
Cisco ASR 1002-F Router Overview and Installation
Cisco Integrated RP and Cisco ASR 1002-ESP-F Description

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
