Cisco ASR 1001 Hardware Installation Guide

SUMMARY STEPS
1.
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (1.905 cm).
2.
Insert the AWG #6 wire into the wire receptacle in the grounding lug. Use the manufacturer's recommended
crimping tool to carefully crimp the wire receptacle around the wire. This step is required to ensure proper
mechanical connection.
3.
Attach the grounding lug to the wire on the left to avoid having the grounding wire overlapping the power
supply.
4.
Locate the chassis ground connector on the side of your chassis.
5.
The following image shows how to attach the grounding lug to the chassis ground connector.
6.
Insert the two screws through the holes in the grounding lug.
7.
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly
to the chassis. Do not overtighten the screws.
8.
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure
an adequate chassis ground.
DETAILED STEPS
Step 1
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (1.905 cm).
Step 2
Insert the AWG #6 wire into the wire receptacle in the grounding lug. Use the manufacturer's recommended crimping
tool to carefully crimp the wire receptacle around the wire. This step is required to ensure proper mechanical connection.

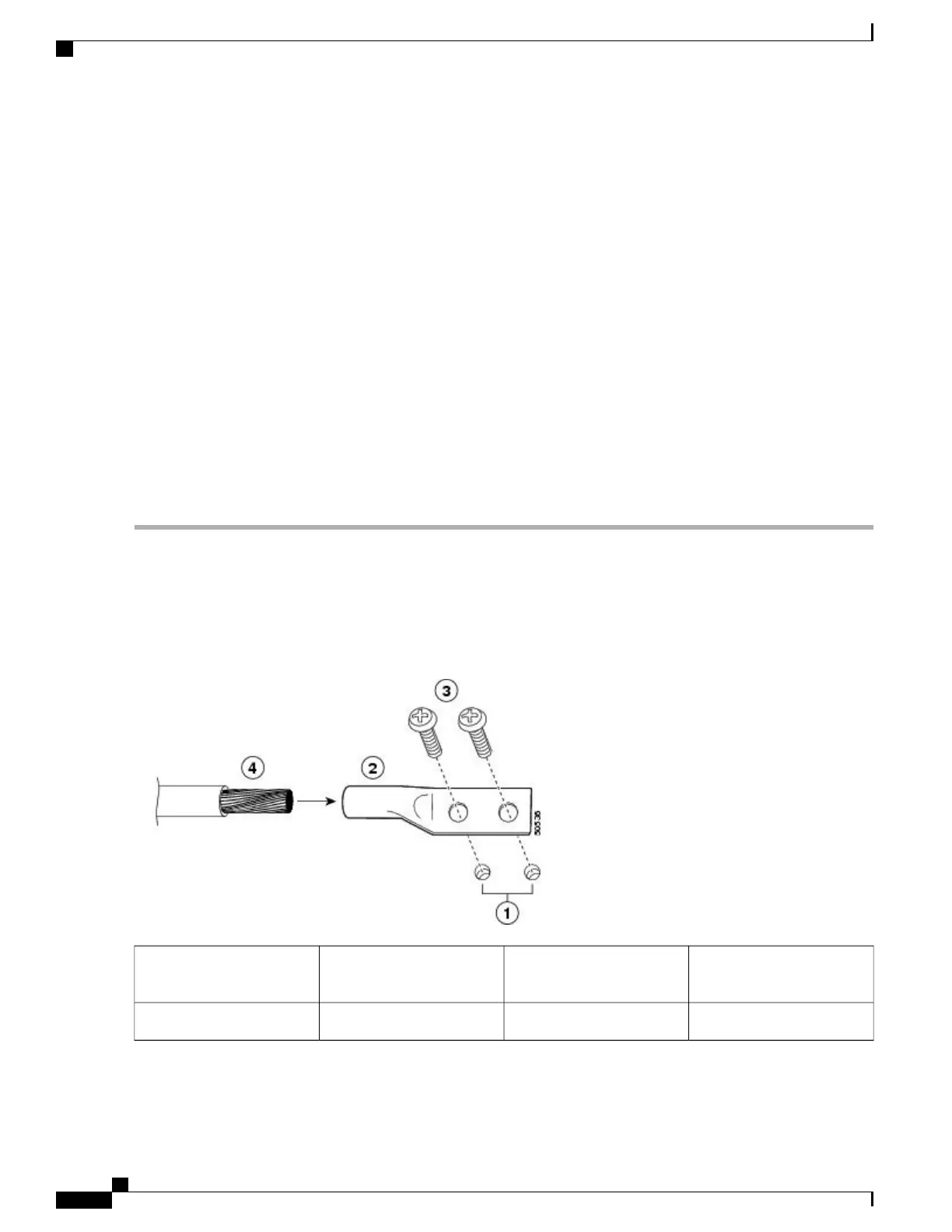

The following image shows the parts of the grounding lug.
Figure 160: Parts of the Grounding Lug
Ground lug screws3Chassis ground connector
holes
1
Ground wire4Grounding lug2
Cisco ASR 1000 Series Router Hardware Installation Guide
348
Cisco ASR 1002-X Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
