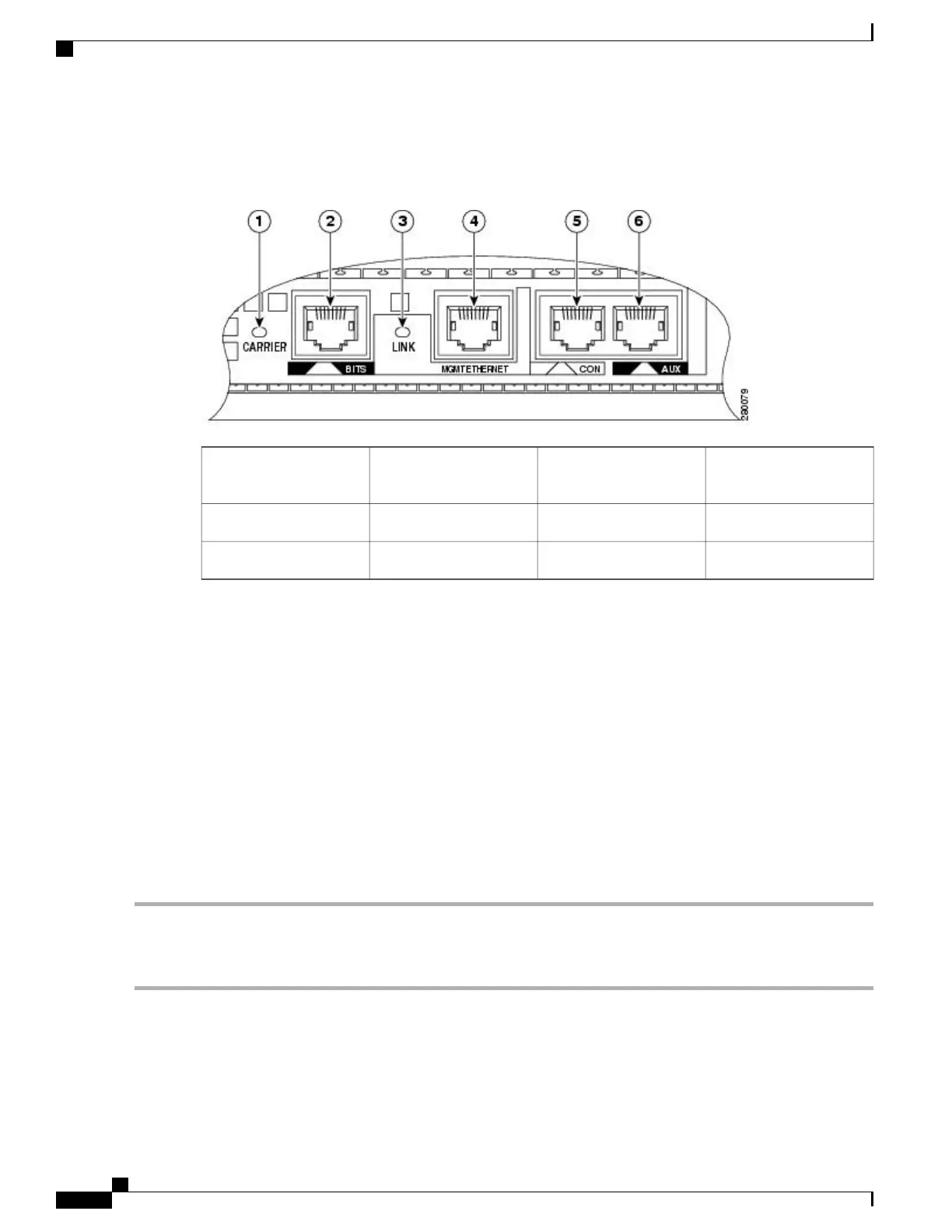

Figure 188: Cisco ASR 1000 Series Route Processor Faceplate Connectors
MGMT Ethernet
connector
4CARRIER LED1
CON connector5BITS connector2
AUX connector6LINK LED3
The Cisco ASR 1013 Router uses RJ-45 ports for both the auxiliary port and the console port. Both the console
and the auxiliary ports are asynchronous serial ports; any devices connected to these ports must be capable
of asynchronous transmission.
For console and auxiliary port pinouts for the RJ-45 connector, see the “Cisco ASR 1000-RP1 Pinout
Specifications” section on page B-1 . Both ports are configured as asynchronous serial ports.
SUMMARY STEPS
1.
Before connecting a terminal to the console port, configure the terminal to match the chassis console port
as follows: 9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
2.
After you establish normal router operation, you can disconnect the terminal.
DETAILED STEPS
Step 1
Before connecting a terminal to the console port, configure the terminal to match the chassis console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2
After you establish normal router operation, you can disconnect the terminal.
Cisco ASR 1000 Series Router Hardware Installation Guide
392
Cisco ASR 1013 Router Overview and Installation
Connecting the Console and Auxiliary Port Cables

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
