Cisco ASR 1001 Hardware Installation Guide

DETAILED STEPS
Step 1
At the rear of the chassis, check that the power switch on the power supply is in the Standby position.
Step 2
Plug the power cable into the inlet.
For additional AC power cable strain relief, secure the cable to the power supply handle by inserting a nylon
cable tie through the hole in the handle and around the cable.
Note
The following image shows the Cisco ASR 1013 Router AC power supply.

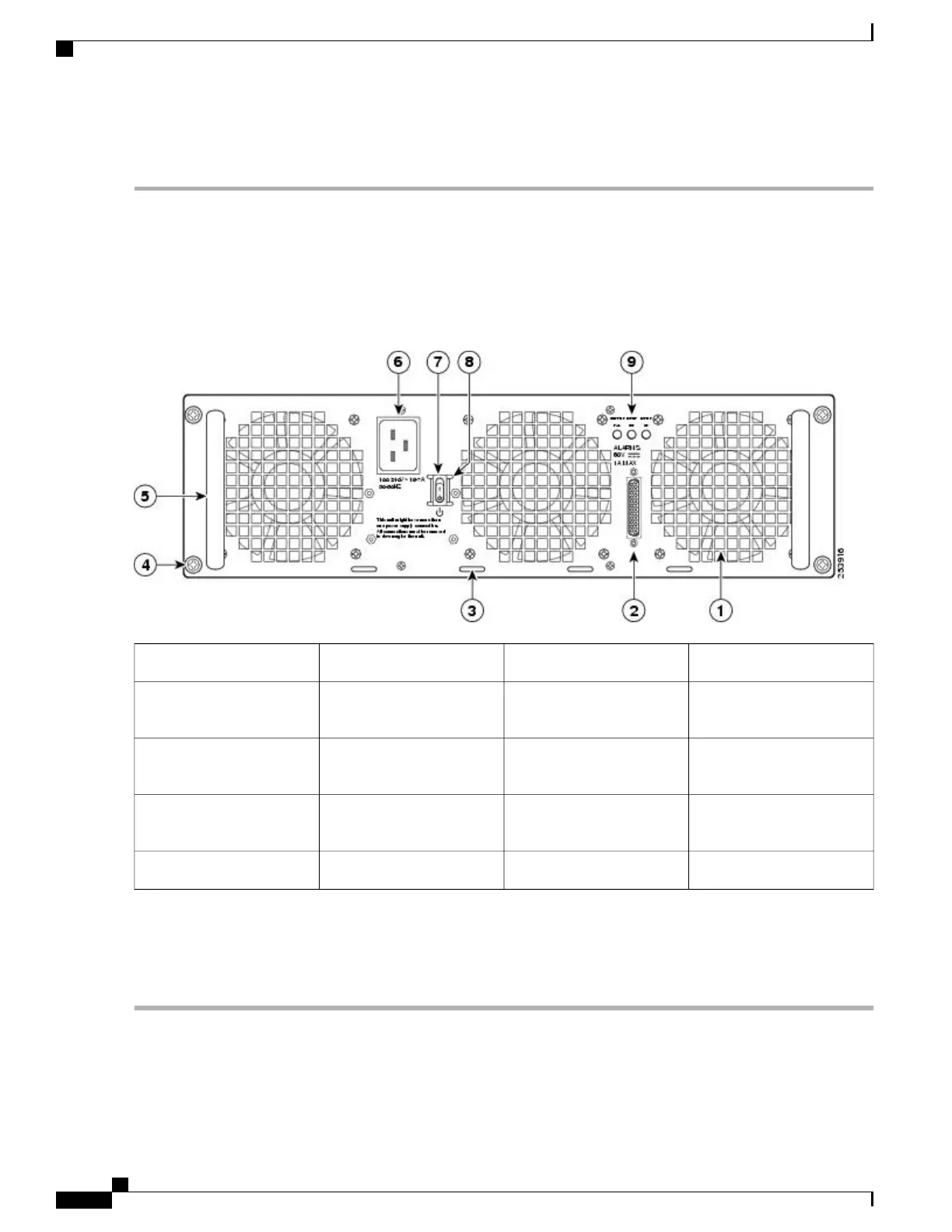

Figure 189: Cisco ASR 1013 Router AC Power Supply
AC power inlet6AC power supply fan1
AC power supply Standby
switch
7DB-25 alarm connector2
Protective shielding on both
sides of the Standby switch
8Tie-wrap tab3
AC power supply LEDs9AC power supply captive
screw
4
——
AC power supply handle5
Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power supplies
in order to comply with FCC/EN55022/CISPR22 Class A emissions requirements. See the “How Cisco
ASR1000-RP Alarm Monitoring Works” section on page 2-22 .
Note
Step 3
Plug the AC power supply cable into the AC power source.
What to Do Next
This completes the procedure for connecting AC-input power.
Cisco ASR 1000 Series Router Hardware Installation Guide
396
Cisco ASR 1013 Router Overview and Installation
Connecting AC Input Power to Cisco ASR 1013 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
