Cisco ASR 1001 Hardware Installation Guide

The Cisco ASR 1001 Router can accommodate different integrated daughter cards. The chassis top cover
includes the integrated daughter card front panel with a common base chassis.There will be different top
covers for each integrated daughter cards and one for orders with no integrated daughter card.
The Cisco ASR 10001 Router can be shipped with different orderable configurations. The following IDC
configurations are available:
See the MIBs for the Cisco ASR 1001 Router appendix for information about the MIBs that can be used
to manage these IDCs.
Note
•
IDC-HD80G
IDC-HD80G can support a single 2.5-inch SATA HDD/SSD (see the following image).

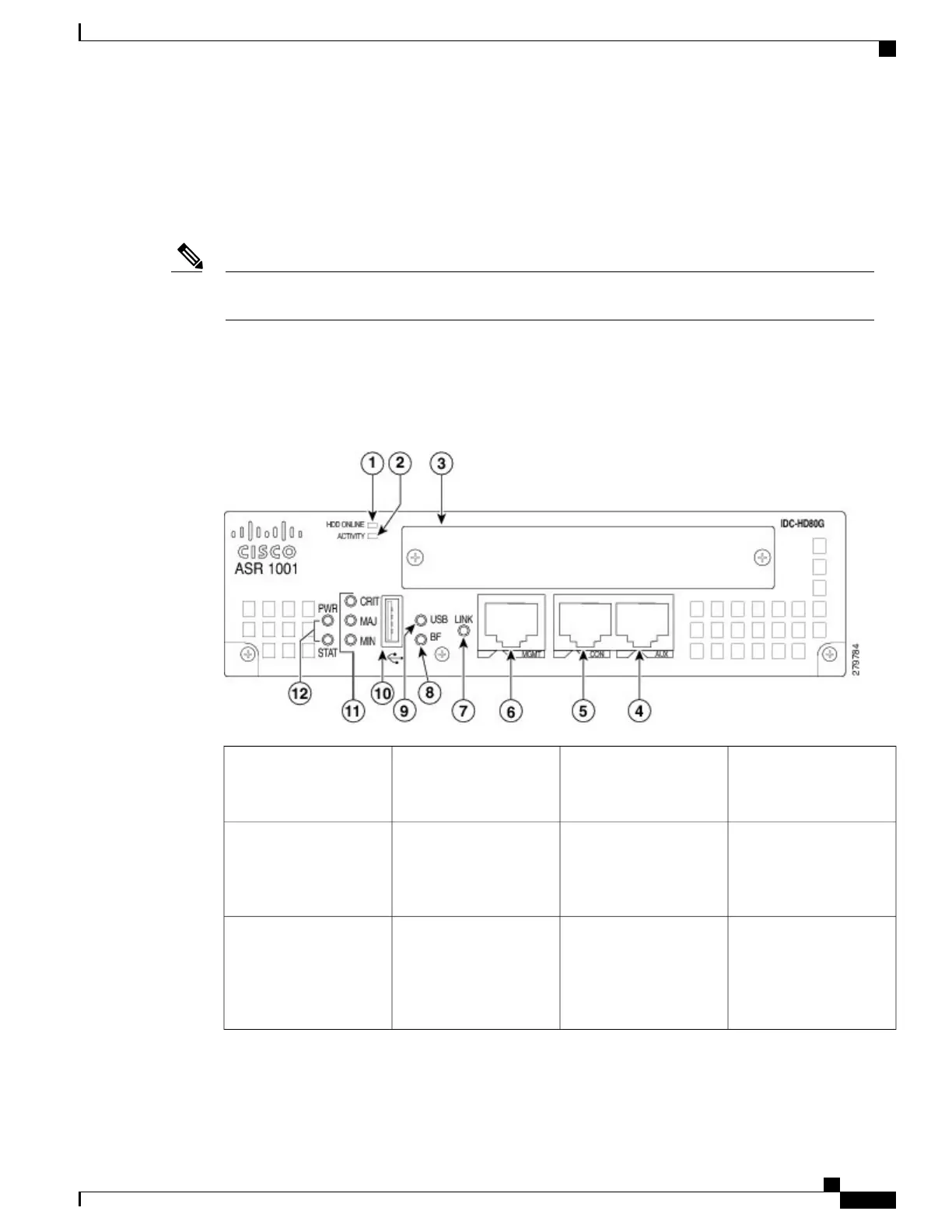

Figure 196: Cisco ASR 1001 Router with IDC-HD80G
LINK LED—Indicates
MGMT Ethernet port
activity
7
HDD Online—LED
indicates that the disk is
ready and can be accessed
1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
8
HDD Activity—LED
indicates that the disk is
currently being accessed
2
USB LED9
HDD Slot—Slot into
which the HDD is
inserted (the figure shows
an HDD inserted into the
slot)
3
Cisco ASR 1000 Series Router Hardware Installation Guide
409
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
