Cisco ASR 1001 Hardware Installation Guide

USB LED10
POS OC3—Port 0
This POS port is a small
form-factor pluggable
(SFP) port.
3
USB port—USB
high-speed (480 Mbps)
port used for secure key
storage, VPN credentials
storage, or bulk flash
storage of image and
configuration backup
This USB port is an A
port.
11
POS OC3—Port 1
This POS port is an SFP
port.
4
STAT—Status LED
12
AUX—RS-232 auxiliary
port
5
PWR—Power LED
13
CON—RS-232 console
port
6
——MGMT—RJ-45
10/100/1000 management
Ethernet port
7
•
IDC-4XGE
IDC-4XGE can support up to four small form-factor pluggable (SFP) transceivers, each of which supports a
1-Gigabit Ethernet connection (see the following image).

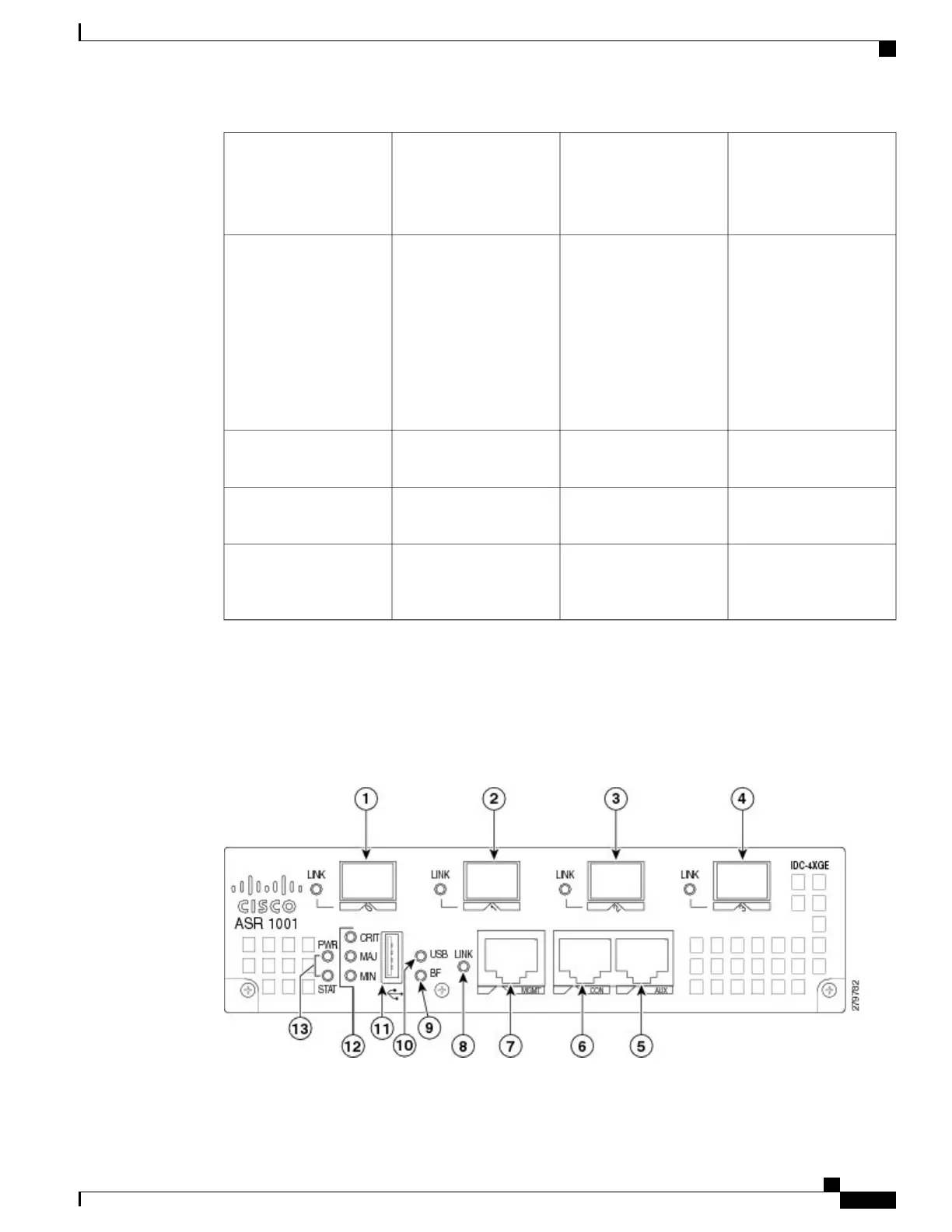

Figure 198: Cisco ASR 1001 Router with IDC-4XGE
Cisco ASR 1000 Series Router Hardware Installation Guide
411
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
