Cisco ASR 1001 Hardware Installation Guide

SUMMARY STEPS
1.
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount
bracket with the ear and holes facing outward and towards the front of the chassis.
2.
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes.
3.
Insert and tighten the black screws on one side.
4.
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount
brackets to the chassis.
DETAILED STEPS
Step 1
Locate the threaded holes on the side of the chassis. Make certain that you hold the front rack-mount bracket with the
ear and holes facing outward and towards the front of the chassis.
The following image shows where to attach the front rack-mount brackets to the Cisco ASR 1001 Router.

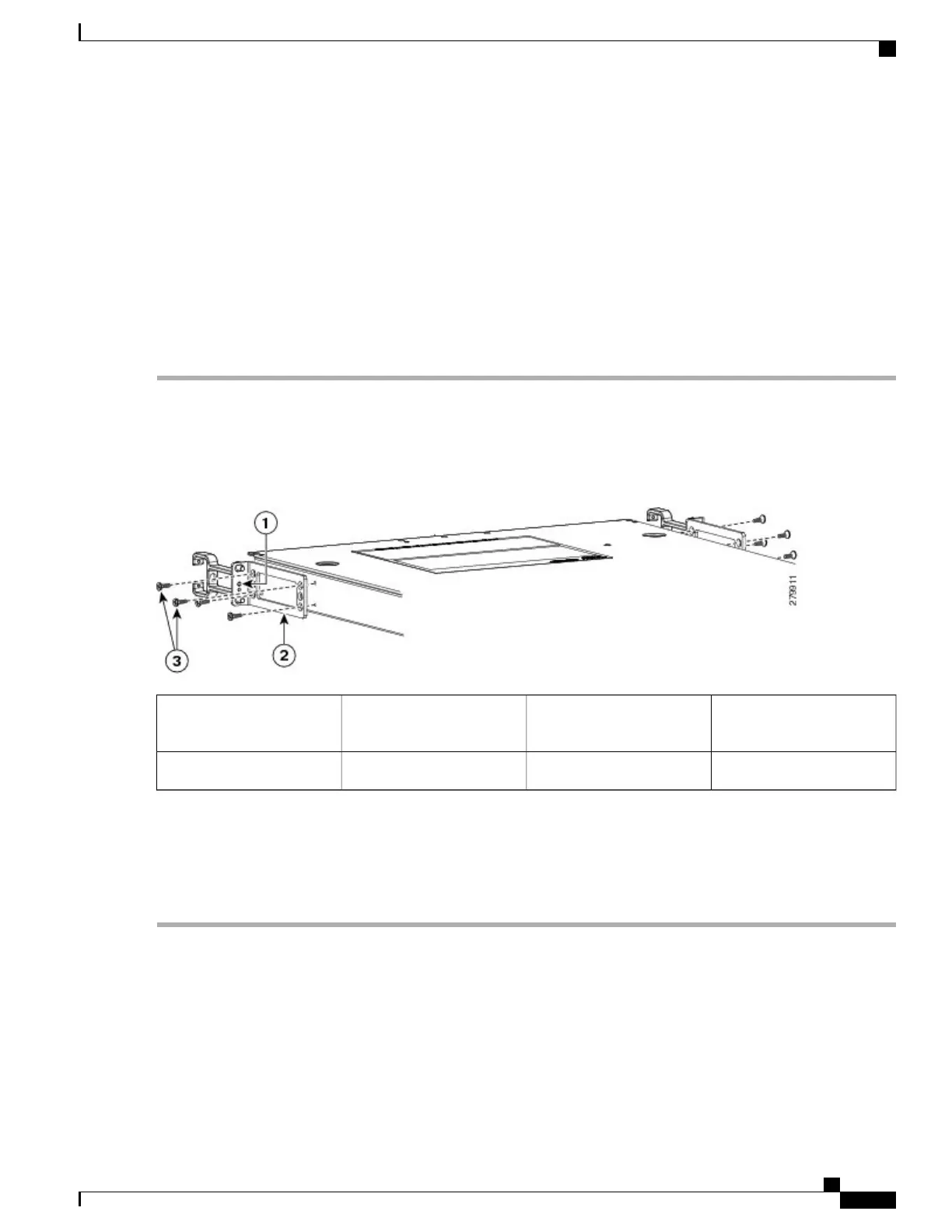

Figure 209: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1001 Router
Front rack-mount bracket
screws
3Front rack-mount bracket ear
and holes
1
——
Front rack-mount bracket2
Step 2
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes.
Step 3
Insert and tighten the black screws on one side.
Step 4
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount brackets to the
chassis.
What to Do Next
This completes the steps for attaching the front rack-mount brackets to the Cisco ASR 1001 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
431
Cisco ASR 1001 Router Overview and Installation
Chassis Front Rack-Mount Brackets

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
