Cisco ASR 1001 Hardware Installation Guide

The following image shows both the AC and DC power supplies for the Cisco ASR 1001 Router.

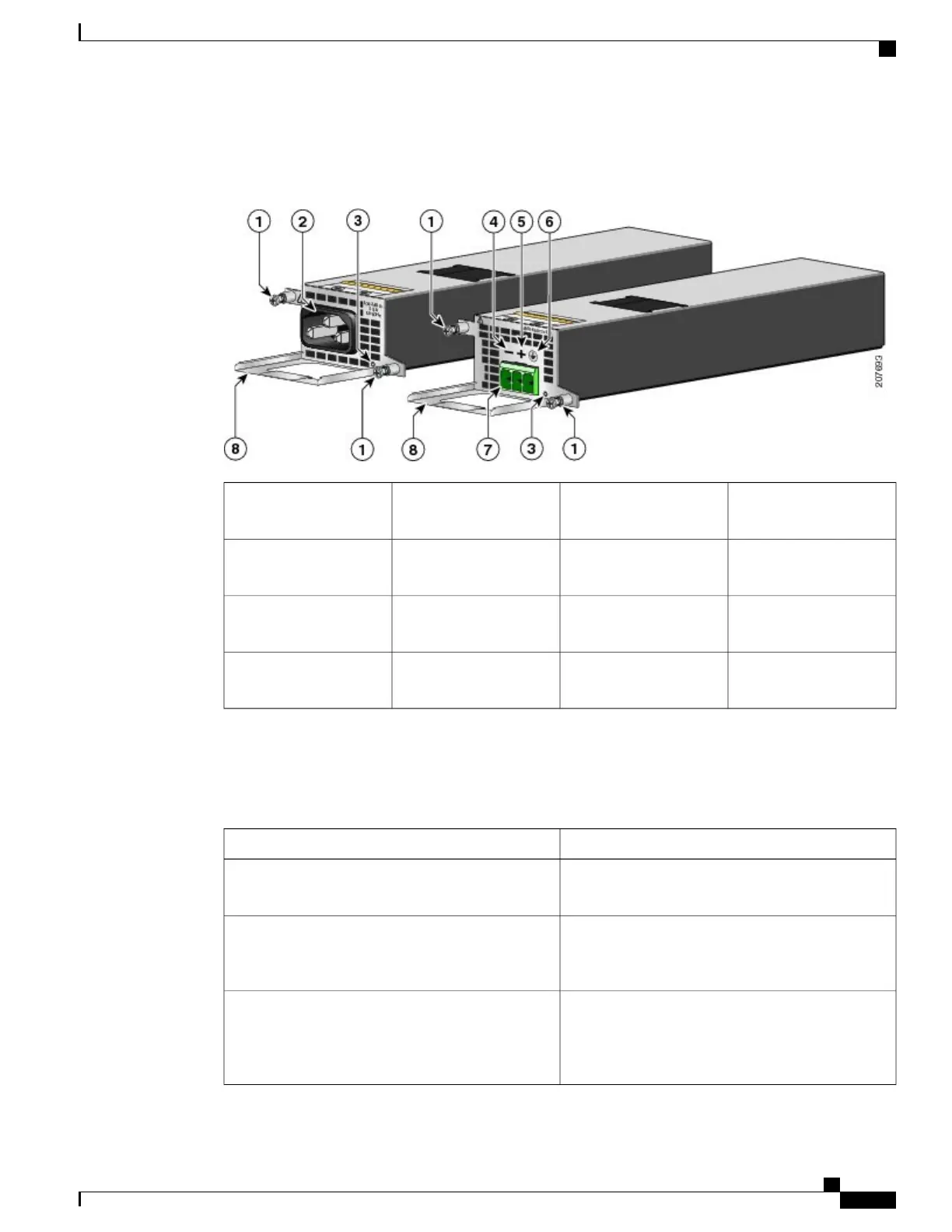

Figure 214: Cisco ASR 1001 Router AC Power Supply and DC Power Supply
DC power supply positive
(+) connection
5AC and DC power supply
fasteners
1
DC power supply ground
symbol
6AC power supply inlet2
DC power supply
terminal block connection
7Power supply LED3
AC and DC power supply
handles
8DC power supply
negative (-) connection
4
The following table describes the power supply LED. The function of the LED is the same for both the AC
and DC power supplies.
Table 88: Cisco ASR 1001 Router AC and DC Power Supply LED
DescriptionLED Color and State
Power output is on and within the normal operating
range.
Solid green
Input power that is within the normal operating range
is being supplied, but the Standby switch is in the
Standby position (and not in the On position).
Blinking green, at the rate of one blink per second
A power supply critical event has occurred, and the
power supply has shut down. The critical event can
be temperature, voltage, current, or fan operating
outside the normal operating range.
Solid amber
Cisco ASR 1000 Series Router Hardware Installation Guide
445
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Power Supply Installation

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
