Cisco ASR 1001 Hardware Installation Guide

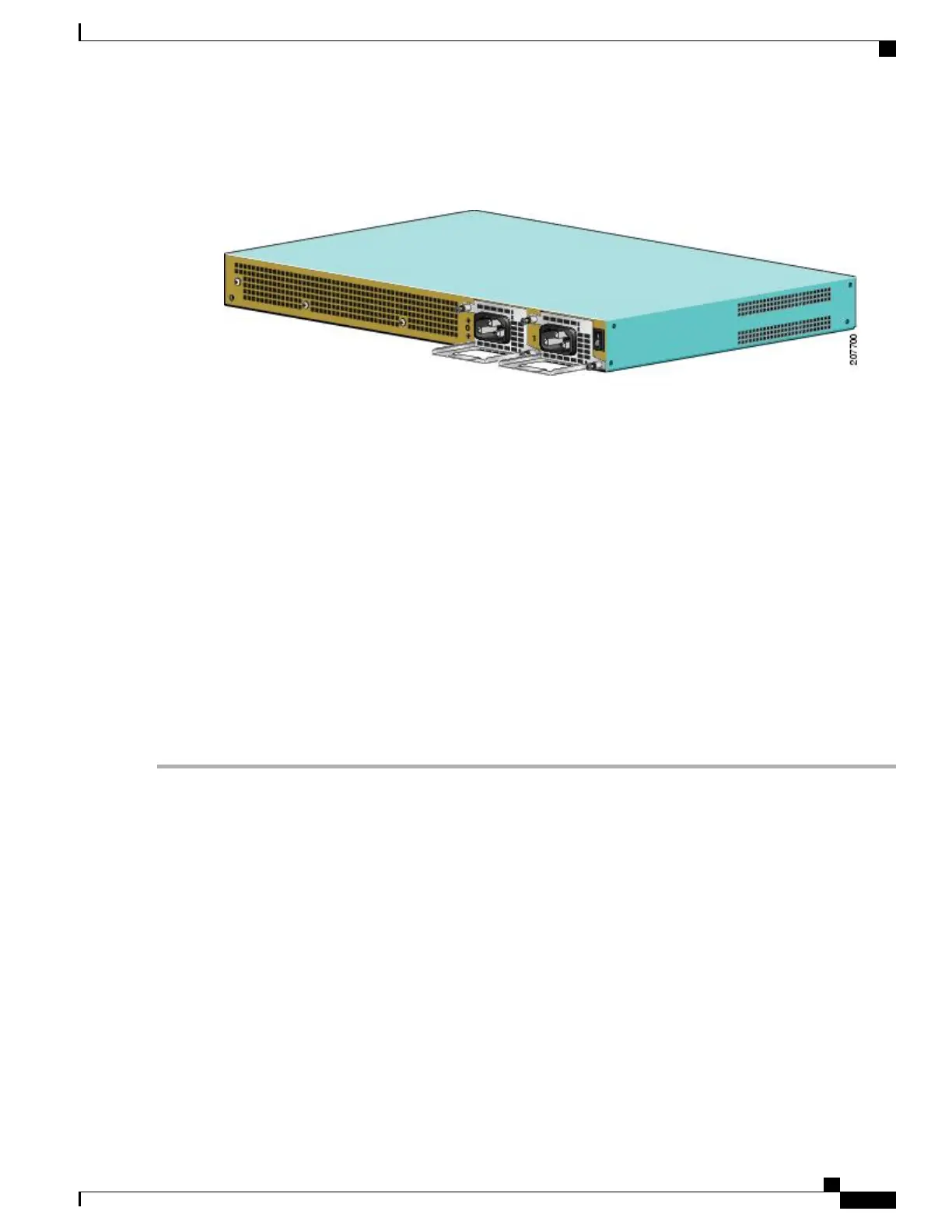

The following image shows the Cisco ASR 1001 Router AC power supplies.
Figure 215: Cisco ASR 1001 Router AC Power Supplies
Follow these steps to connect an AC input power supply to the Cisco ASR 1001 Router.
SUMMARY STEPS
1.
There are two power supplies installed. At the rear of the chassis, check that the power switch on the
chassis is in the standby position.
2.
Turn off the circuit breaker to the power supply.
3.
For easier installation, plug the power cable into the inlet on power supply slot 1 first.
4.
Then insert the power supply cable into the power supply in slot 0 on the right.
5.
Make certain that the AC power cords are positioned as shown in the following image.
6.
Plug the AC power supply cables into the AC power source.
7.
Turn on the AC breaker.
8.
Turn the Standby switch to On (|) on the chassis.
9.
The power supply LED illuminates green.
DETAILED STEPS
Step 1
There are two power supplies installed. At the rear of the chassis, check that the power switch on the chassis is in the
standby position.
Cisco ASR 1000 Series Router Hardware Installation Guide
447
Cisco ASR 1001 Router Overview and Installation
Installing AC Input Power to Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
