Cisco ASR 1001 Hardware Installation Guide

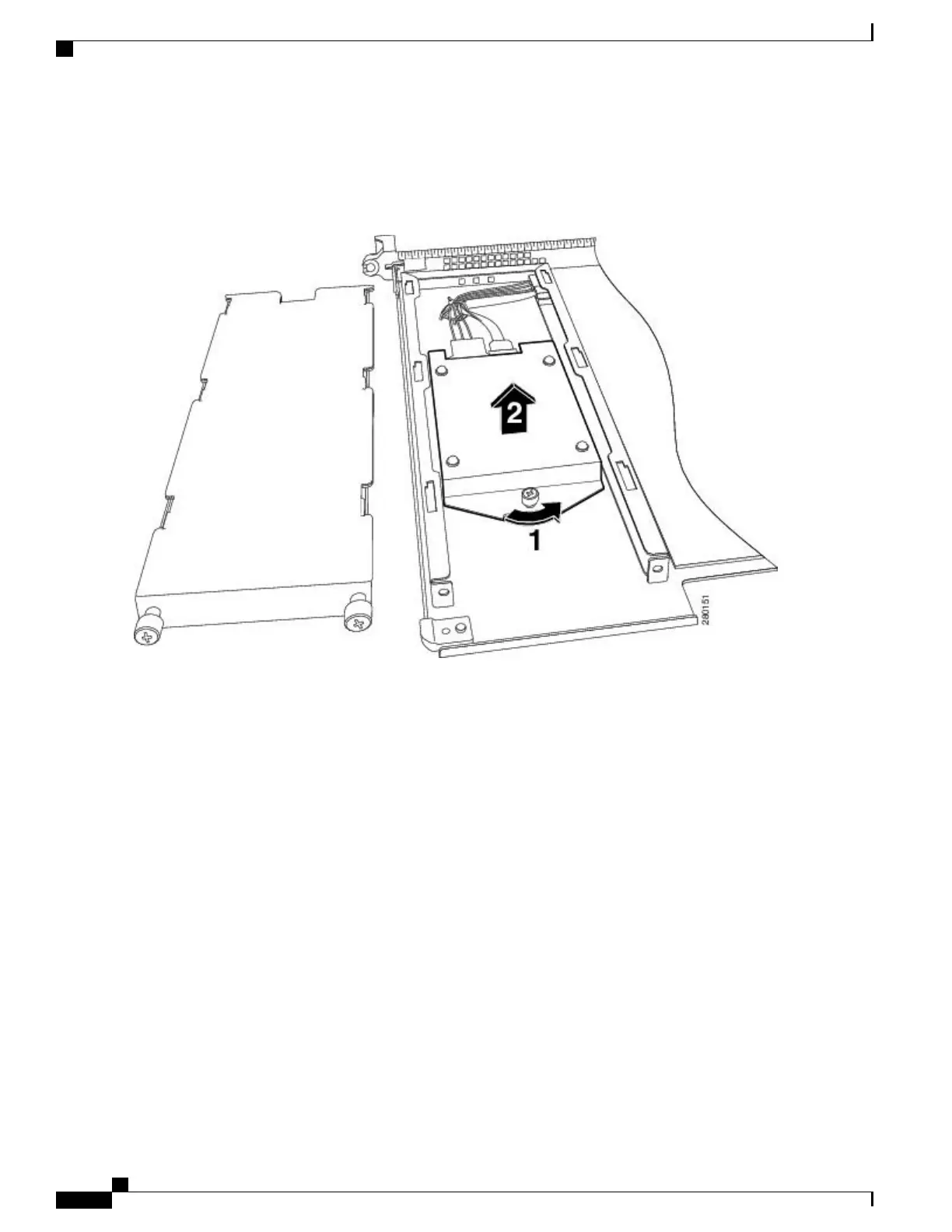

The following figure shows the Cisco ASR1000-RP1 module with the hard drive cover removed.
Figure 228: Cisco ASR1000-RP1 Module Hard Drive Cover and Screw Fastener
Step 5
Remove the internal drive cover:
a) Using a # 2 Phillips screwdriver or a flat head screwdriver, loosen the screw fasteners on the cover.
b) Slide the cover off as shown in xref Figure 14-2.
c) Lift the cover up from the board.
Step 6
Inspect the existing cables and replace them only if they are damaged. If you do not need to replace them, leave the
connection to the Cisco ASR 1000 Series Route Processor 1 in place and only remove the connection to the internal hard
drive.
Step 7
Carefully disconnect the cables at the rear of the hard drive. These cables are tie-wrapped in to prevent them from
disconnecting from the Cisco ASR 1000 Series RP1 itself. If the cables are not damaged, leave the cables connected to
the Cisco ASR 1000 Series RP1 with the tie wrap in place. Remove the old hard drive.
Cisco ASR 1000 Series Router Hardware Installation Guide
480
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 Module Internal Hard Drive

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
