Cisco ASR 1001 Hardware Installation Guide

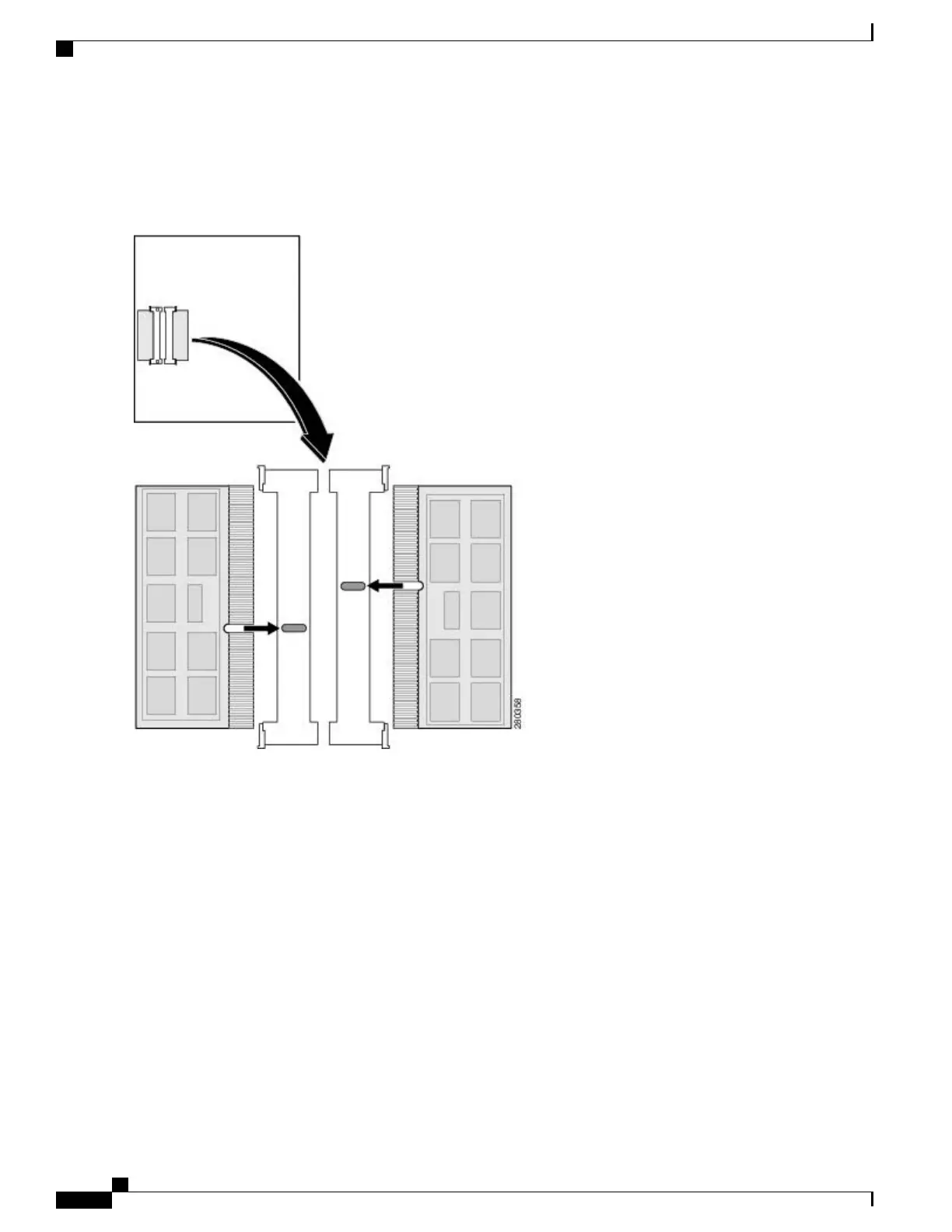

The following figure shows the Cisco ASR 1000 Series RP DIMM module alignment.
Figure 240: Cisco ASR 1000 Series RP DIMM Module Alignment
Hold the DIMM with two hands at its edge and insert the
card.
Note
Step 7
Make certain that both latches on the DIMM connector are open.
Step 8
Gently insert the new DIMM, taking care not to damage the pins on the edge of the DIMM.Using two hands, place the
index fingers on the edge of the DIMM and place the thumbs on the socket, being careful not to touch the socket pins.
Press on the back of the DIMM towards the socket by squeezing the index fingers and the thumbs together, being careful
to only apply force onto the DIMM parallel with the plane of the DIMM.
Step 9
To allow the DIMM to slide into the socket smoothly with minimum force, one can alternate applying force back and
forth between the left hand and the right hand, allowing one side to engage prior to the other. Carefully and firmly press
the DIMM into the connector until the spring latches lock the DIMM in place. See Figure 14-12.
Strong insertion force introduces excessive mechanical stress on the DIMM. To prevent any stress on the
soldering joints, there should be no up, down, or wiggling motion to be done on the DIMM during the insertion.
Forcing the DIMM into the socket can damage the DIMM. Check that the notches on the DIMM are properly
aligned with the ones on the connector before fully inserting the DIMM.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
500
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 DIMM Memory Modules

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
