Cisco ASR 1001 Hardware Installation Guide

SUMMARY STEPS
1.
Align the replacement eUSB device over the connector and standoff. The device fits over the threaded
post that sticks up off the board and accepts a screw to hold the eUSB firmly to the Cisco ASR 1000 Series
RP board.
2.
Gently insert the new eUSB device by pressing it into the connector keeping aligned with the standoff and
secure the eUSB device with the small Phillips screw as displayed in the following figure.
3.
Replace the Cisco ADR1000-RP into chassis and remove any external USB sticks.
4.
Restore the backup copy of the startup-config and boot image to the eUSB device.
5.
Verify that the Cisco ASR1000-RP1 is operating properly. Check that the internal hard drive LED (labeled
as DISK HD) is flashing green. To check if the LED flashes green, from the ROMMON or IOS prompt,
perform a:
6.
To restore data after the internal hard drive replacement, type:
DETAILED STEPS
Step 1
Align the replacement eUSB device over the connector and standoff. The device fits over the threaded post that sticks
up off the board and accepts a screw to hold the eUSB firmly to the Cisco ASR 1000 Series RP board.
Step 2
Gently insert the new eUSB device by pressing it into the connector keeping aligned with the standoff and secure the
eUSB device with the small Phillips screw as displayed in the following figure.

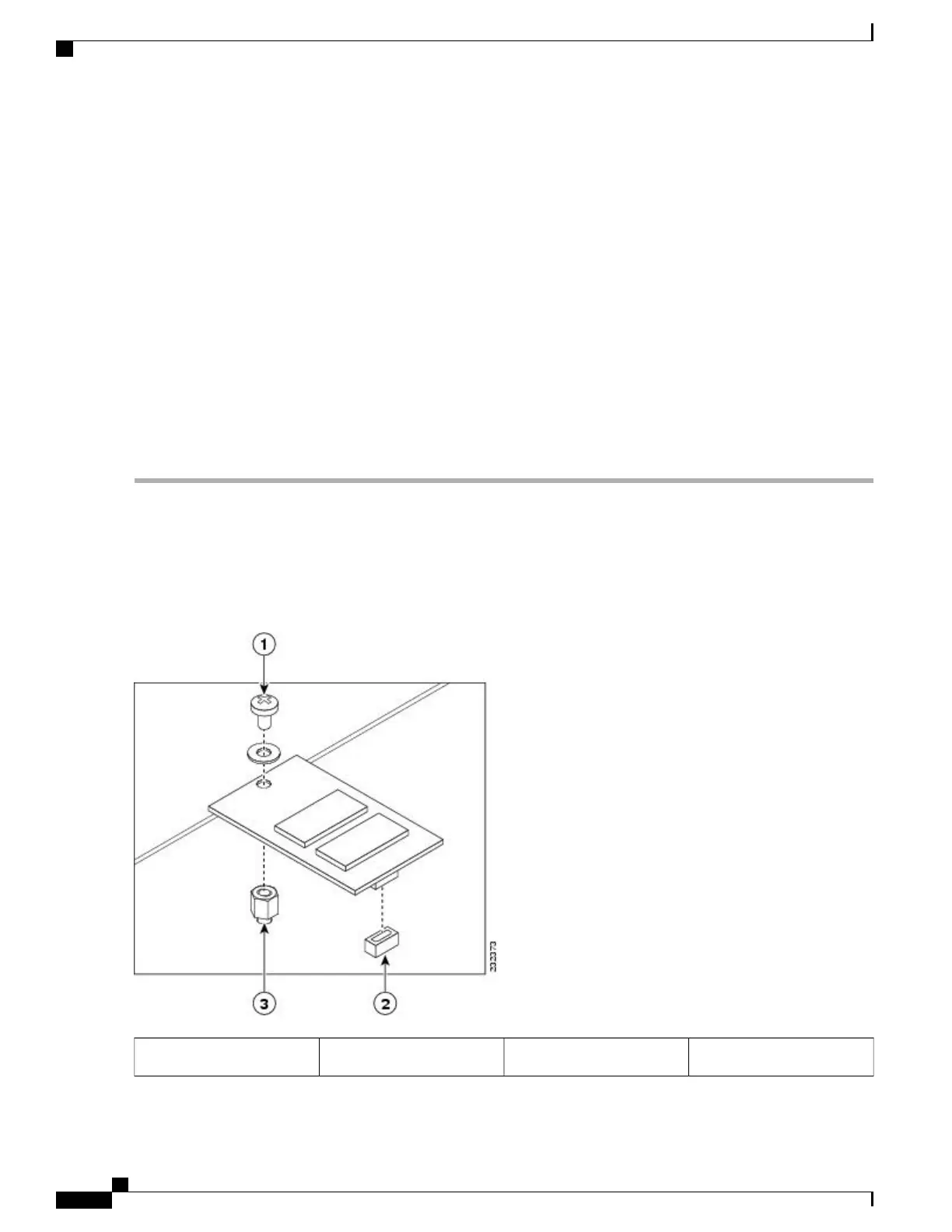

Figure 257: Cisco ASR1000 Series RP eUSB Device Removal and Replacement
Standoff3Phillips screw1
Cisco ASR 1000 Series Router Hardware Installation Guide
522
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Remove and Replace the eUSB Device on the Cisco ASR 1006 and Cisco ASR 1004 Routers

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
