Cisco ASR 1001 Hardware Installation Guide

DETAILED STEPS
Step 1
Before you physically replace the eUSB device, create a backup of the startup-config and the boot image. For example,
to backup to an external USB flash drive, enter:
Example:
router# copy nvram:startup-config usb0
router# copy bootflash:asr1000rp1-adventerprisek9.02.01.00.122-33.XNA.bin usb0:
Step 2
Remove the power supplies from the chassis before you remove the chassis cover. For instructions about how to remove
the AC and DC power supplies from the Cisco ASR 1001 Router, see: xref sections.
Step 3
After the power supplies are removed, remove the chassis top cover and follow theses steps:
a) Loosen all top surface screws on the chassis cover, as shown in xref figure, callout number 3.
b) Loosen the three screws on the faceplate at the front of the chassis, as shown in xref figure, callout 6.
c) Using both hands, gently slide the cover forward and off of the chassis.
The cover will not come off the chassis if the power supplies are installed.Note
d) Place the cover aside and ensure that you are wearing an antistatic device, such as a wrist strap.
Step 4
Position the chassis so that you are facing the front.
Step 5
Locate the eUSB device on the ASR 1001 chassis. See xref figure, callout number 2.
Step 6
Remove the small Phillips screw holding the eUSB board in place. See the following figure.

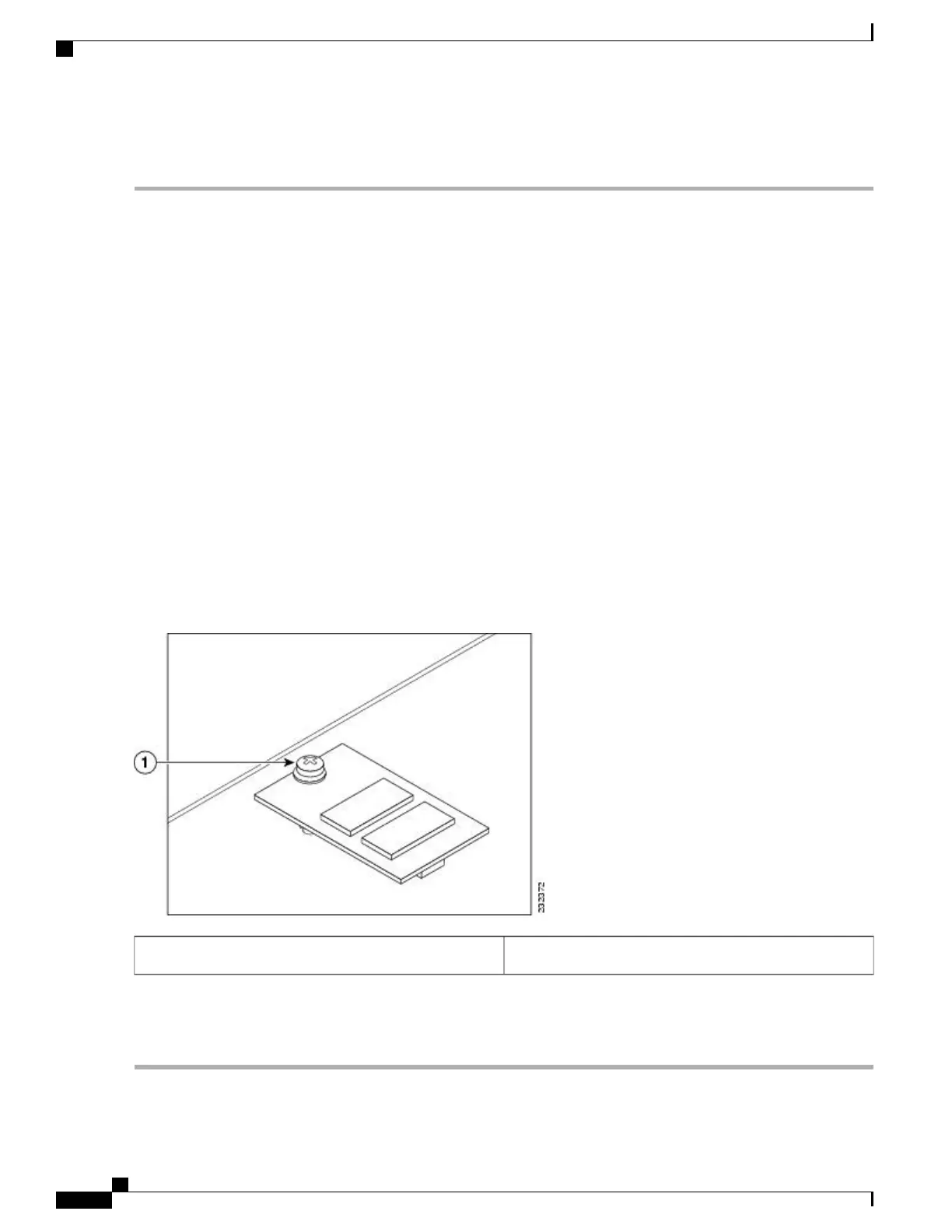

Figure 258: Cisco ASR 1001 Router eUSB Device
Cisco ASR 1001 router eUSB device Phillips screw1
Step 7
Gently pull the eUSB device up from its connector, and remove it.
Step 8
Place the eUSB device in an antistatic bag for return.
Cisco ASR 1000 Series Router Hardware Installation Guide
524
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Remove and Replace the eUSB Device on the Cisco ASR 1001 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
