Cisco ASR 1001 Hardware Installation Guide

AC power supply
Standby switch. A
Standby switch is not
considered a disconnect.
7Cable tie-wrap tabs3
AC power supply LEDs8AC power supply captive
screws
4
*For information about
the DB-25 alarm
connector, how it works,
and Cisco ASR 1000
series route processor
LEDs, see xref “How
Cisco ASR1000-RP
Alarm Monitoring
Works” section on page
2-20.
Note: Shielded cables
must be used to connect
to the DB-25 alarm
connector on both the AC
and DC power supplies,
in order to comply with
FCC/EN55022/CISPR22
Class A emissions
requirements.

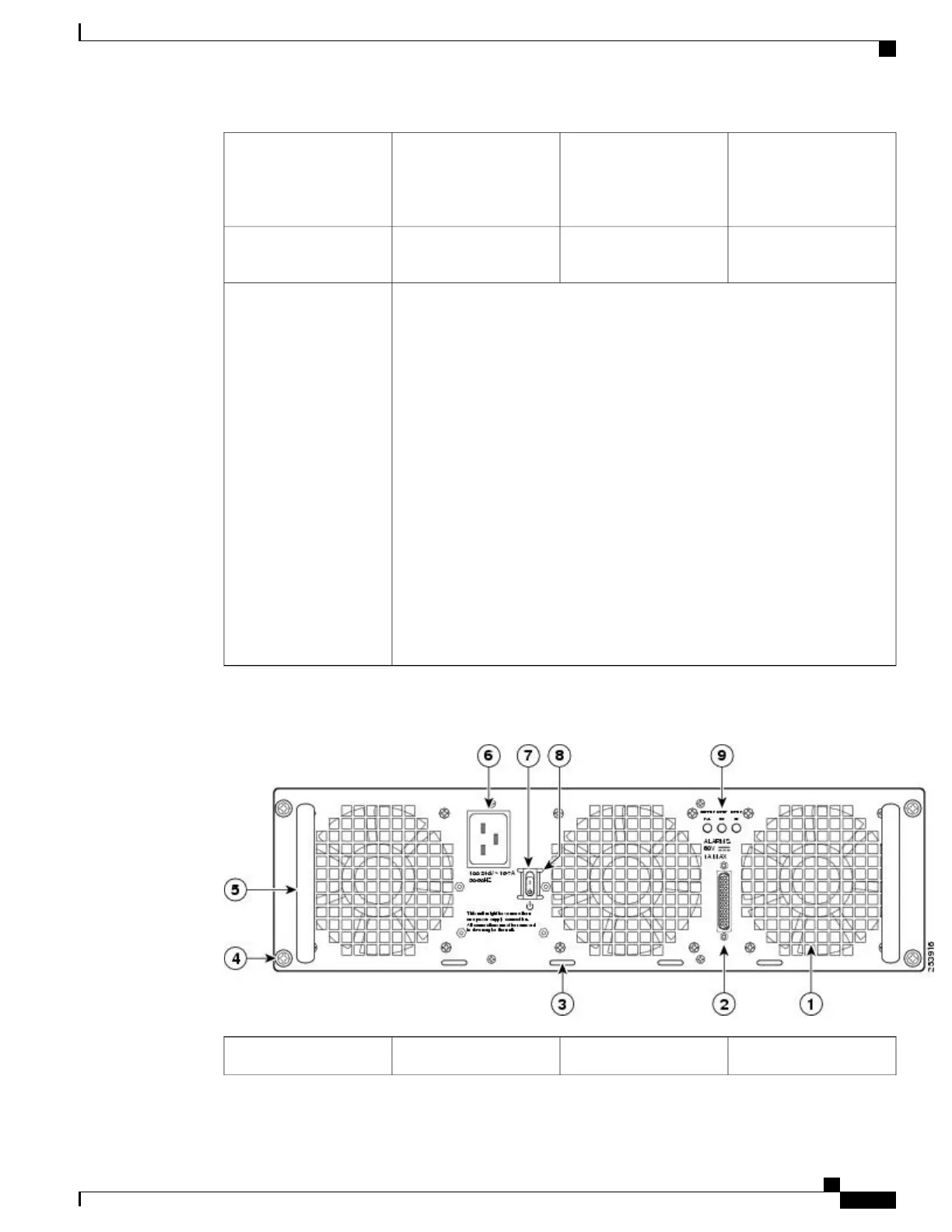

The following figure shows the ASR1013/06-PWR-AC power supply of the Cisco ASR 1006 Router.
AC power inlet6AC power supply fan1
Cisco ASR 1000 Series Router Hardware Installation Guide
541
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a AC Power Supply in Cisco ASR 1006 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
