Cisco ASR 1001 Hardware Installation Guide

The following figure shows the DC power supply terminal block for the ASR1013/06-PWR-DC power supply of the
Cisco ASR 1006 Router.

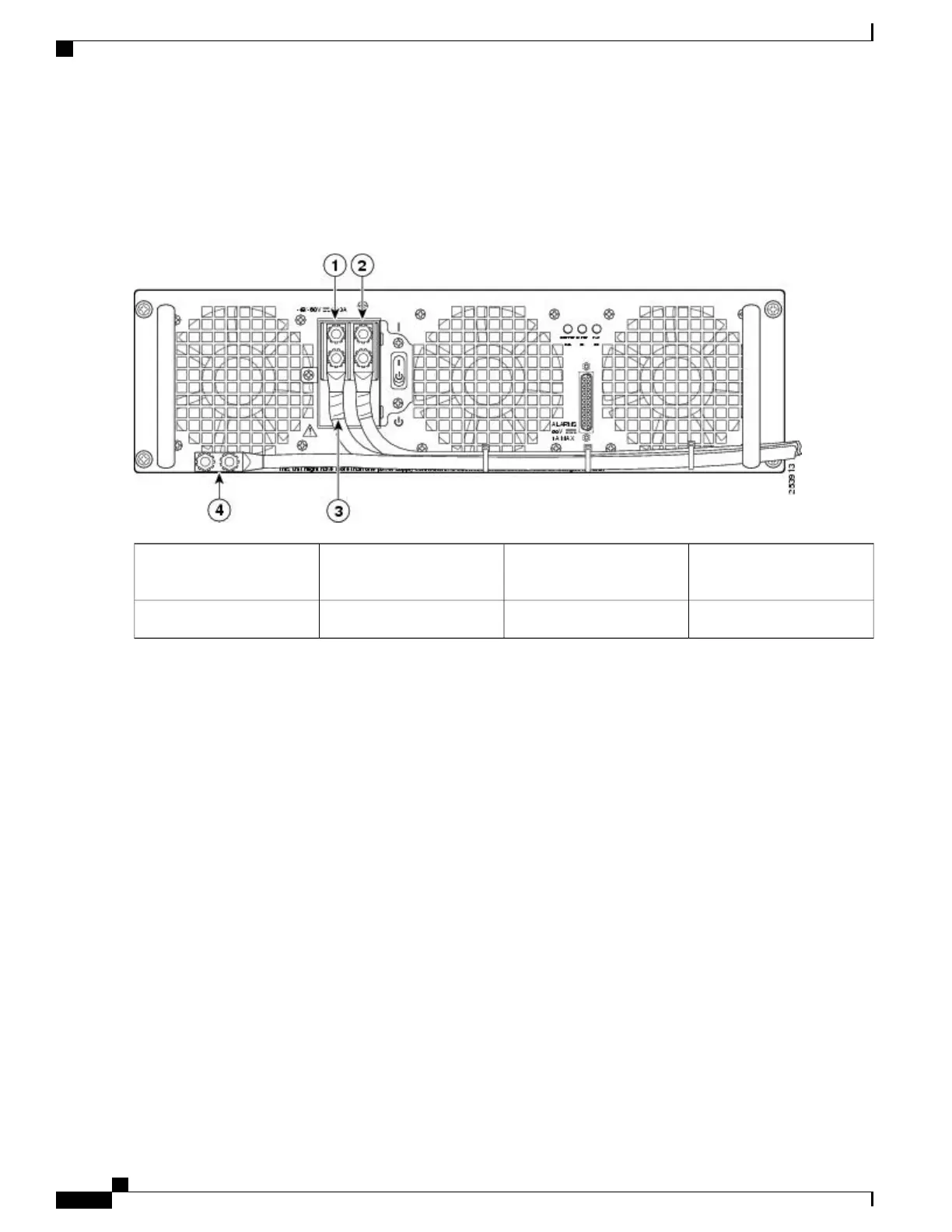

Figure 268: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC) Terminal Block and Plastic Cover
Protective sleeving around
the stud and cable
3Negative lead1
Ground stud and cable4Positive lead2
Step 5
Remove the slotted plastic cover from the terminal block (see xref figure).
a) Loosen and remove the single screw on the plastic cover. The plastic cover has slots that help to slide it out diagonally
from the terminal block.
b) Using a nut driver (7/16 size), unsrew the positive kepnut, positive cable, and the flat washer, in that order. The
terminal block houses two double-hole barrel lugs.
c) Follow Step 4b and remove the negative cable.
Cisco ASR 1000 Series Router Hardware Installation Guide
548
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a DC Power Supply in Cisco ASR 1006 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
