Cisco ASR 1001 Hardware Installation Guide

a) Leave a small service loop in the AC power cord from the inlet and then secure the power cord through the AC power
supply handle as shown in the following figure. Alternatively, go to step 3b.

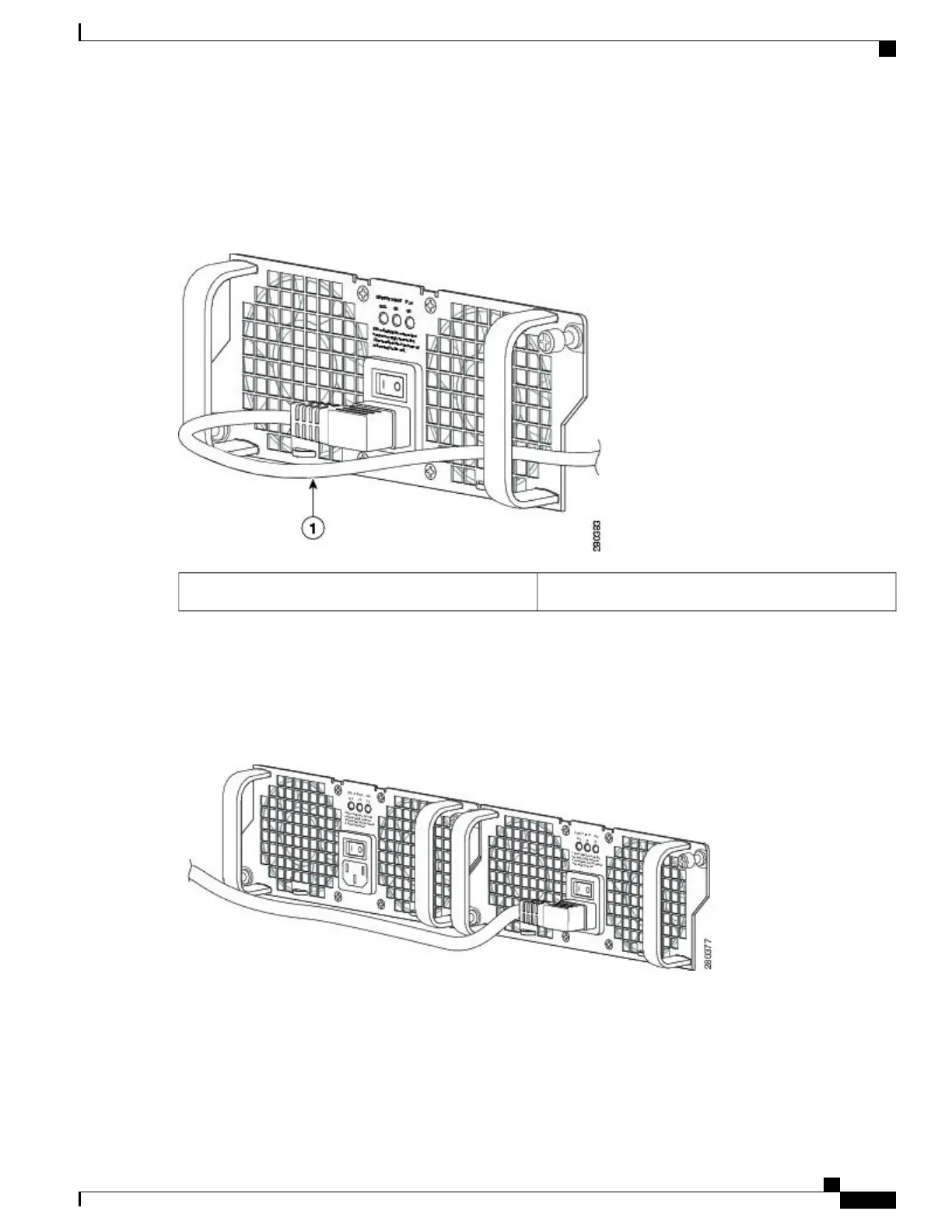

Figure 278: Cisco ASR 1002 Router AC Power Supply and Cord in Slot 1
AC power cord1
b) Take the power cord and run it below the handles of the power supply in slot 1and the power supply in slot 0 (left).
Make sure the power cord is hanging loosely so that it cannot be disconnected from the AC power inlet (see the
following figure).
Figure 279: Cisco ASR 1002 Router AC Power Cord Through AC Power Supply 0 and 1
Cisco ASR 1000 Series Router Hardware Installation Guide
569
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing an AC Power Supply in Cisco ASR 1002 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
