Cisco ASR 1001 Hardware Installation Guide

SUMMARY STEPS
1.
Slip on the ESD-preventive wrist strap that was included in the accessory kit.
2.
Place the power supply Standby switch in the Standby (see the following figure) position.
3.
Turn off the branch circuit breaker before touching terminal screws. Then start loosening the terminal
block screws to remove wires.
4.
Remove the leads from the terminal block in the following order.
5.
Unscrew all of the power supply captive screws.
6.
Grasping the power supply handles, pull the power supply from the chassis.
7.
Replace the –48 VDC power supply within five minutes.
DETAILED STEPS
Step 1
Slip on the ESD-preventive wrist strap that was included in the accessory kit.
Step 2
Place the power supply Standby switch in the Standby (see the following figure) position.

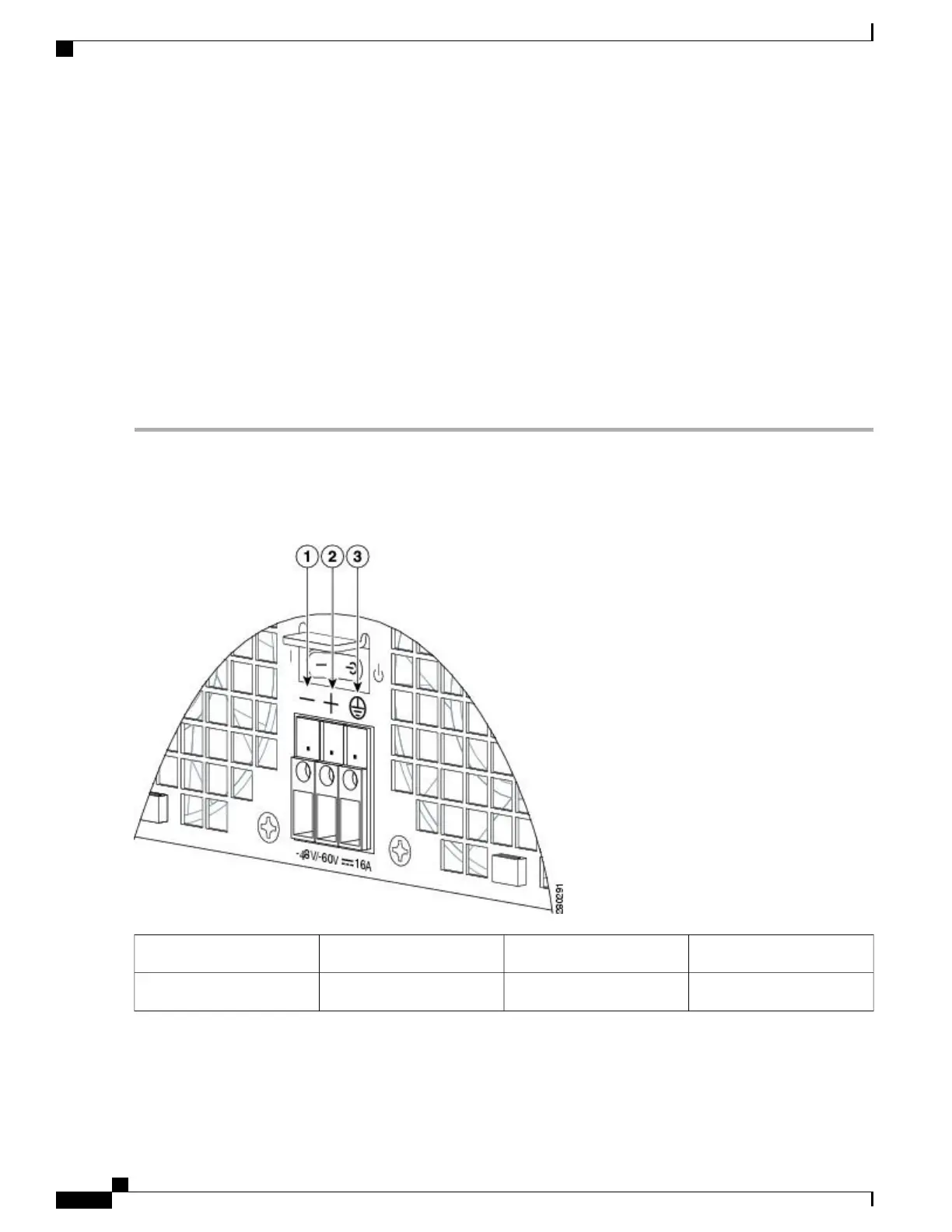

Figure 282: Cisco ASR 1002 Router – 48 VDC Power Supply Terminal Block
Ground terminal3Negative terminal1
——
Positive terminal2
Cisco ASR 1000 Series Router Hardware Installation Guide
572
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a –48 VDC Power Supply in Cisco ASR 1002 Router

Cisco ASR 1001 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN tunnels quantity	8000
Product color	Gray
Rack capacity	1U
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	8192 MB
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	11350 g
