CDM-625A Advanced Satellite Modem MN-CDM625A
CDM-625A ODU (Transceiver, BUC, LNB) Operation Revision 4
10–4
10.3.2 CDM-625A Front Panel Menus – ODU Menu Hierarchy
Figure 10-2 identifies the CDM-625A front panel menu hierarchies allocated to the configuration,
monitor, and control of a Comtech EF Data ODU. More specifically, menu branches that
incorporate
ODU operations are shown in bold; menu content that is dedicated to ODU
operations is additionally italicized.

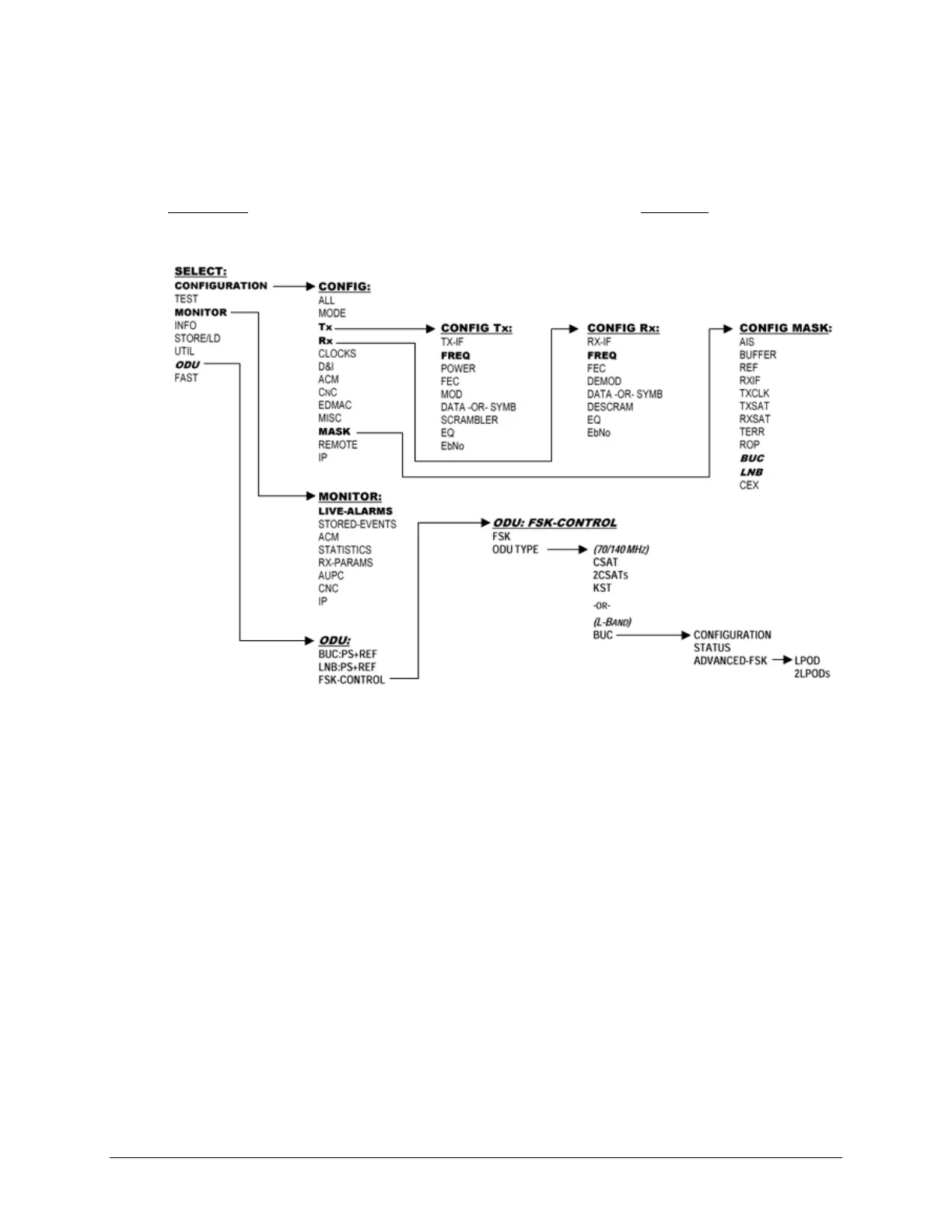

Figure 10-2.CDM-625A Front Panel ODU Operation Menu Tree – (FW Ver. 1.4.1)
To Next Page
