CDM-625A Advanced Satellite Modem MN-CDM625A
Appendix A Revision 4
A-2
A.1.1 EIA-530 to EIA-422/449 DCE Conversion Cable
Use this EIA-530-to-EIA-422/449 DCE Conversion Cable for connections between the CDM-625A and the user data.

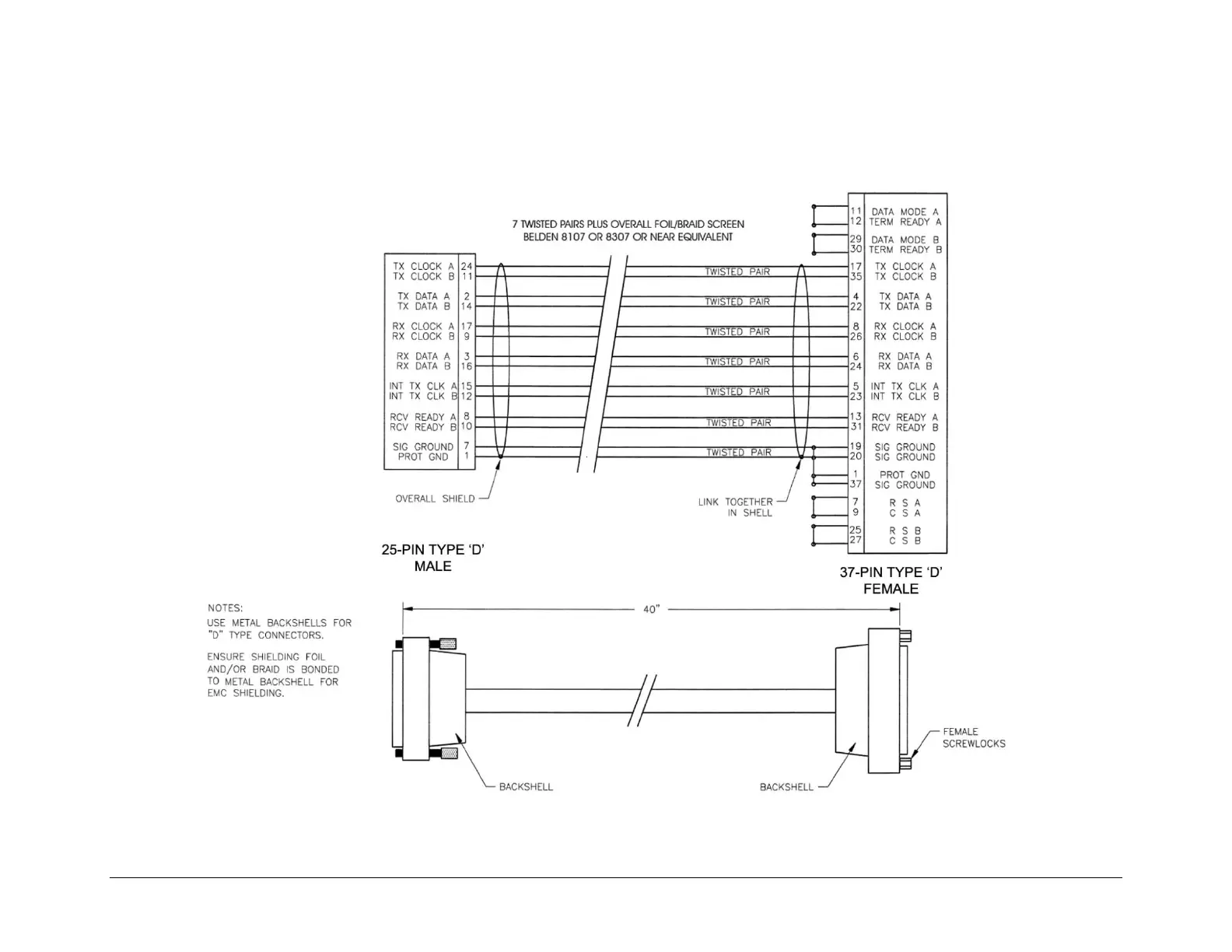

Figure A-1. EIA-530 to EIA-422/449 DCE Conversion Cable (CEFD P/N CA/WR0049)
