CDM-625A Advanced Satellite Modem MN-CDM625A
Appendix A Revision 4
A-3
A.1.2 EIA-530 to V.35 DCE Conversion Cable
Use this EIA-530 to V.35 DCE Conversion Cable for connections between the CDM-625A and the user data.

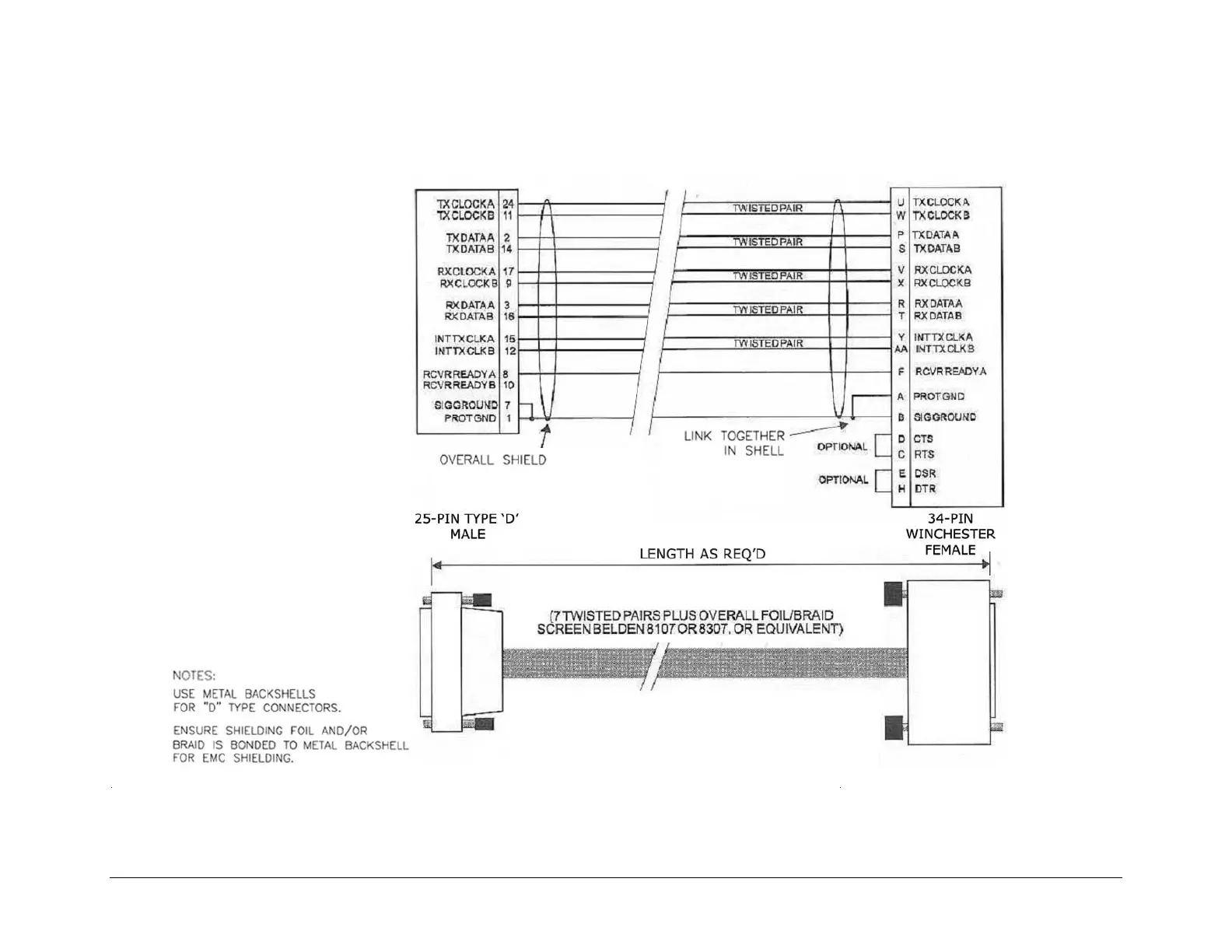

Figure A-2. EIA-530 to V.35 DCE Conversion Cable
