CDM-625A Advanced Satellite Modem MN-CDM625A
Appendix A Revision 4
A-4
A.1.3 EIA-232 Remote Control Cable
Use this EIA-232 Remote Control Cable for firmware updates in the absence of an Ethernet-based connection. You may also use this
cable for serial-based M&C of the CDM-625A. Connect this cable from the CDM-625A Rear Panel “Remote Control” port to any User PC
serial port.

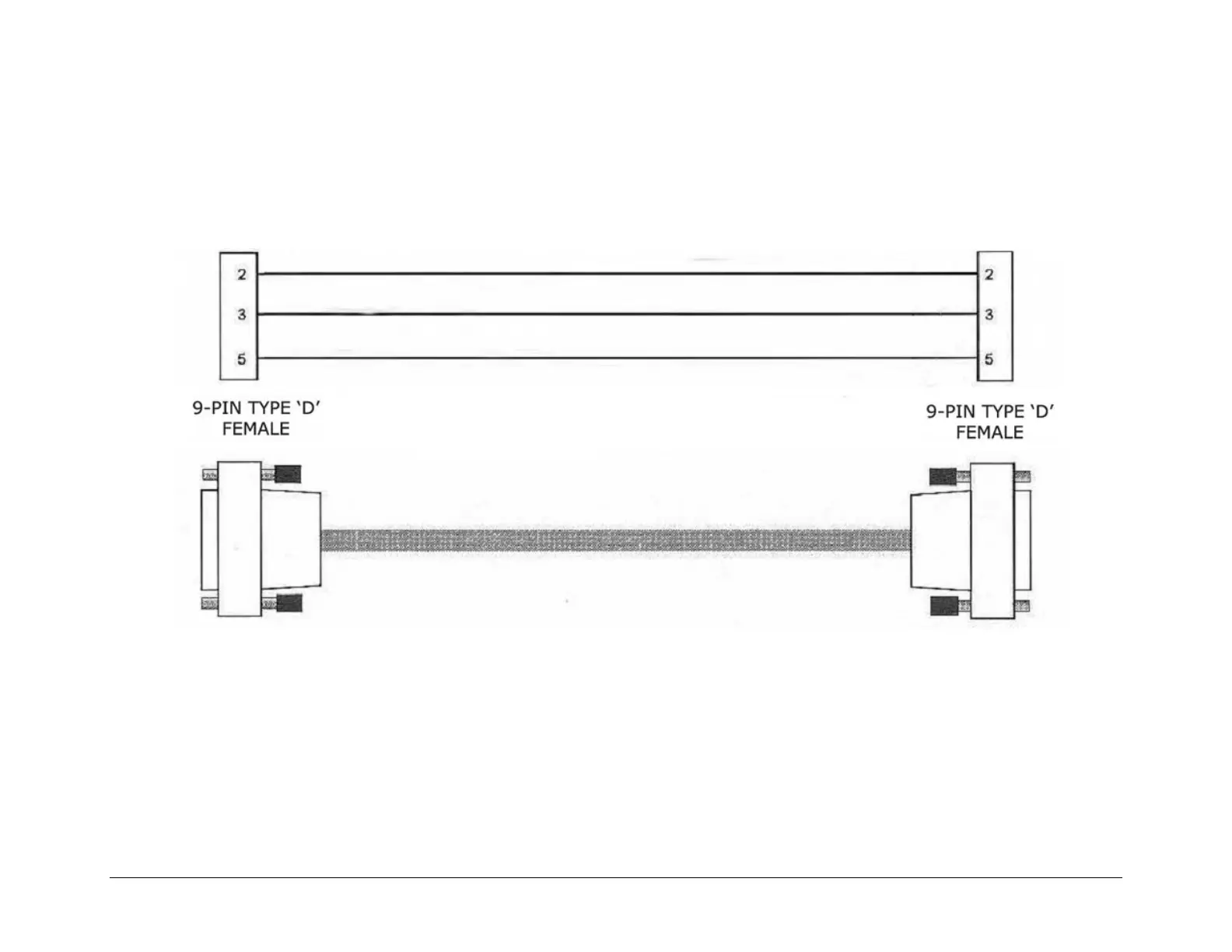

Figure A-3. EIA-232 Remote Control Cable (CDM-625A “Remote Control” Port to User PC 9-Pin Serial Port)
