CDM-625A Advanced Satellite Modem MN-CDM625A
Appendix K Revision 4
K–4
K.2.3.1.2 Hub-to-Hub Using Ethernet Routers

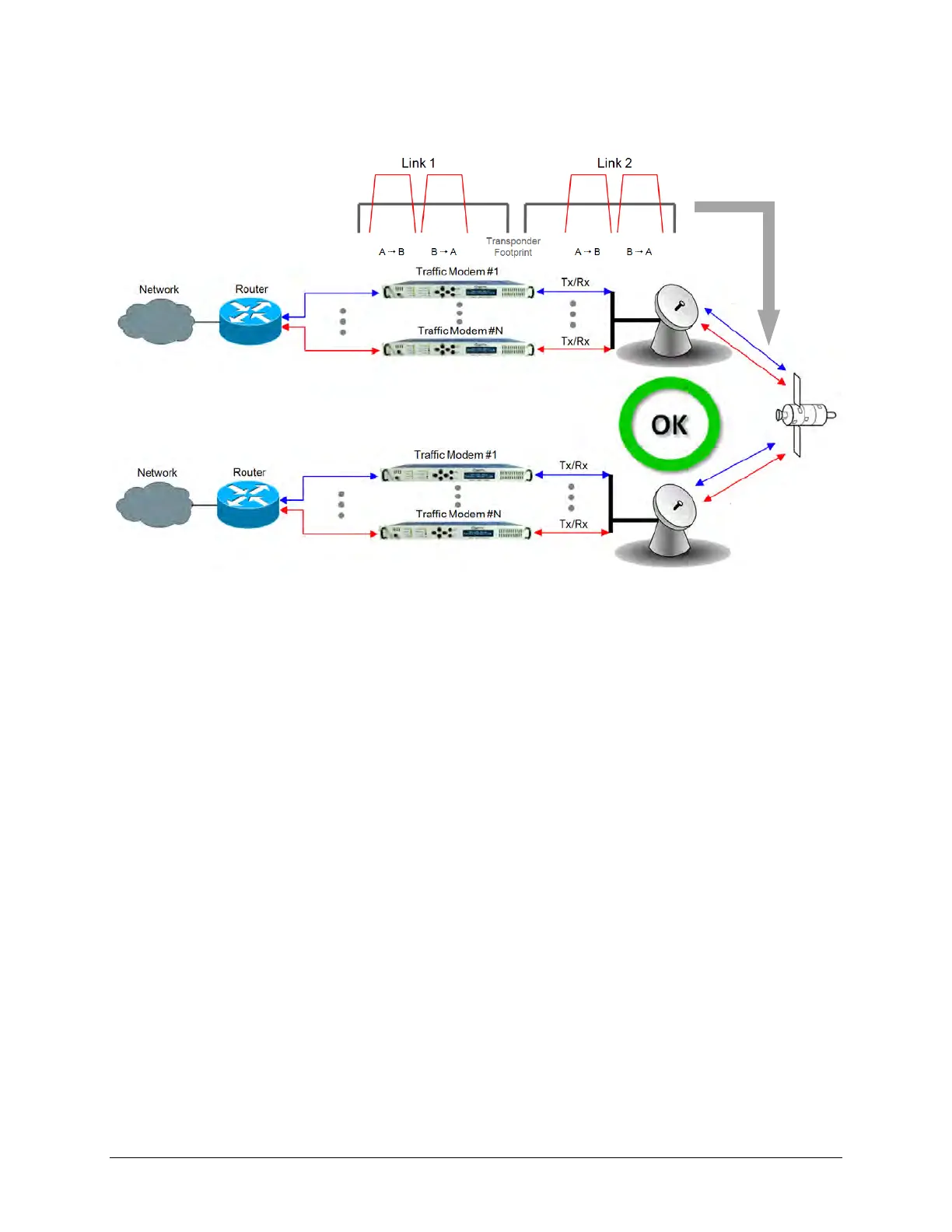

Figure K-5. Hub-to-Hub with Standard Traffic Using Routers
Figure K-5 shows two hub-sites connected with standard Ethernet traffic, using routers instead
of switches for the Ethernet connection. The routers will block the broadcasts coming from the
remote network; therefore, the creation of a broadcast storm is prevented and there is no
possibility of having a remote MAC on the Hub networks.
