K.4 Ethernet Network Configurations in Router Mode (with IP Packet
Processor)
K.4.1 Point-to-Multipoint (Router Multipoint Hub) Mode

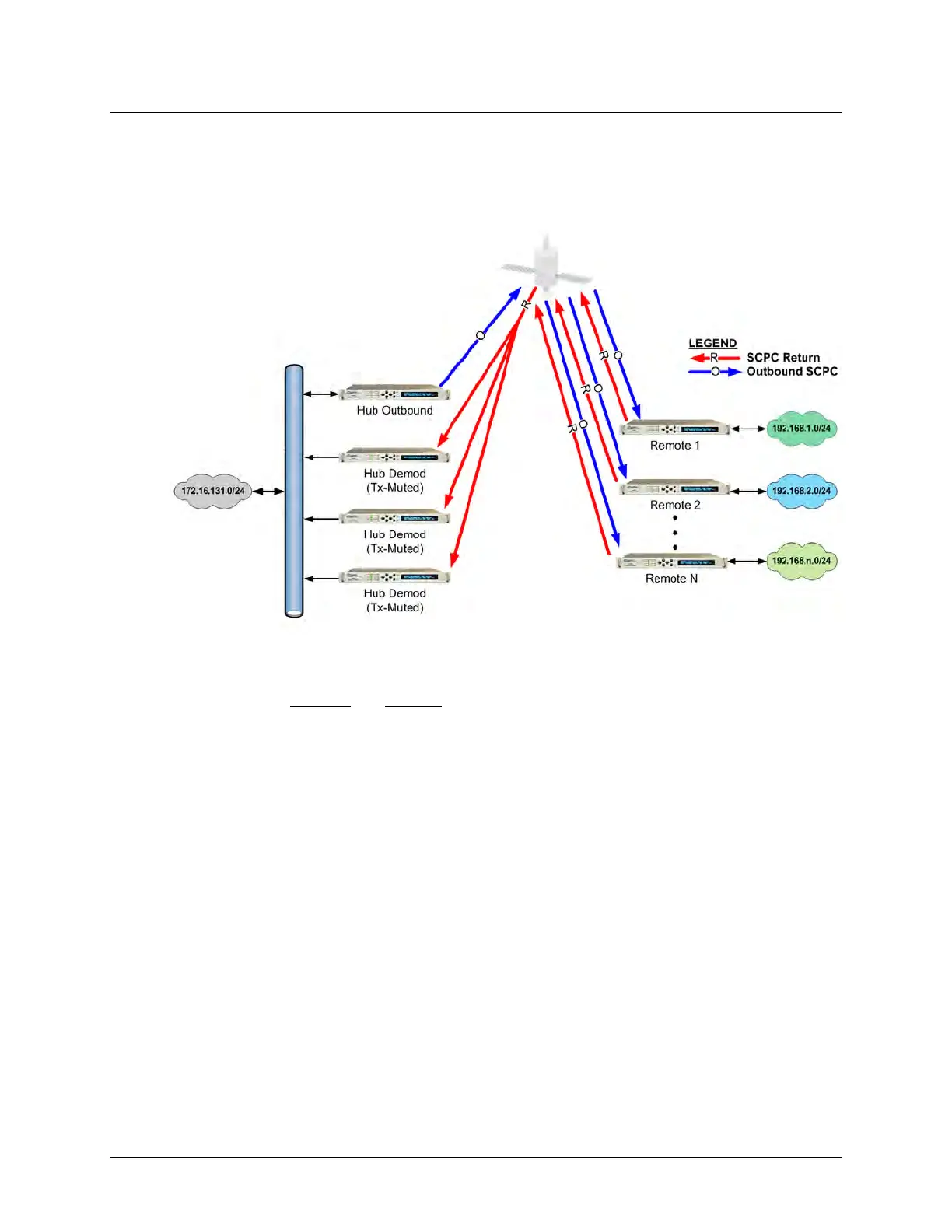

Figure K-10. Point-to-Multipoint (Router Multipoint Hub Mode)
Figure K-10 depicts a Point-to-Multipoint (Router Multipoint Hub) setup, with the optional IP
Packet Processor
installed
and enabled
in the CDM-625A and configured for Router Mode. This
configuration features a Hub Outbound CDM-625A, with a rack of Hub Demods (Rx-only CDM-
625As are connected on single LAN networks), and Remotes (each) connected to a separate LAN
network).
