Doremi IMS1000 - Page 32

IMS.OM.002949.DRM Page 32 of 310 Version 1.4
Doremi Labs
AES-OUT 9-16
● Digital Audio Channels 9-16 Output
● RJ-45 Connector
Channels 1-8
Signal
1
Channel 9 & 10 plus
2
Channel 9 & 10 minus
3
Channel 11 & 12 plus
4
Channel 13 & 14 plus
5
Channel 13 & 14 minus
6
Channel 11 & 12 minus
7
Channel 15 & 16 plus
8
Channel 15 & 16 minus
LEDs
 See Figure 5 for LED placement.

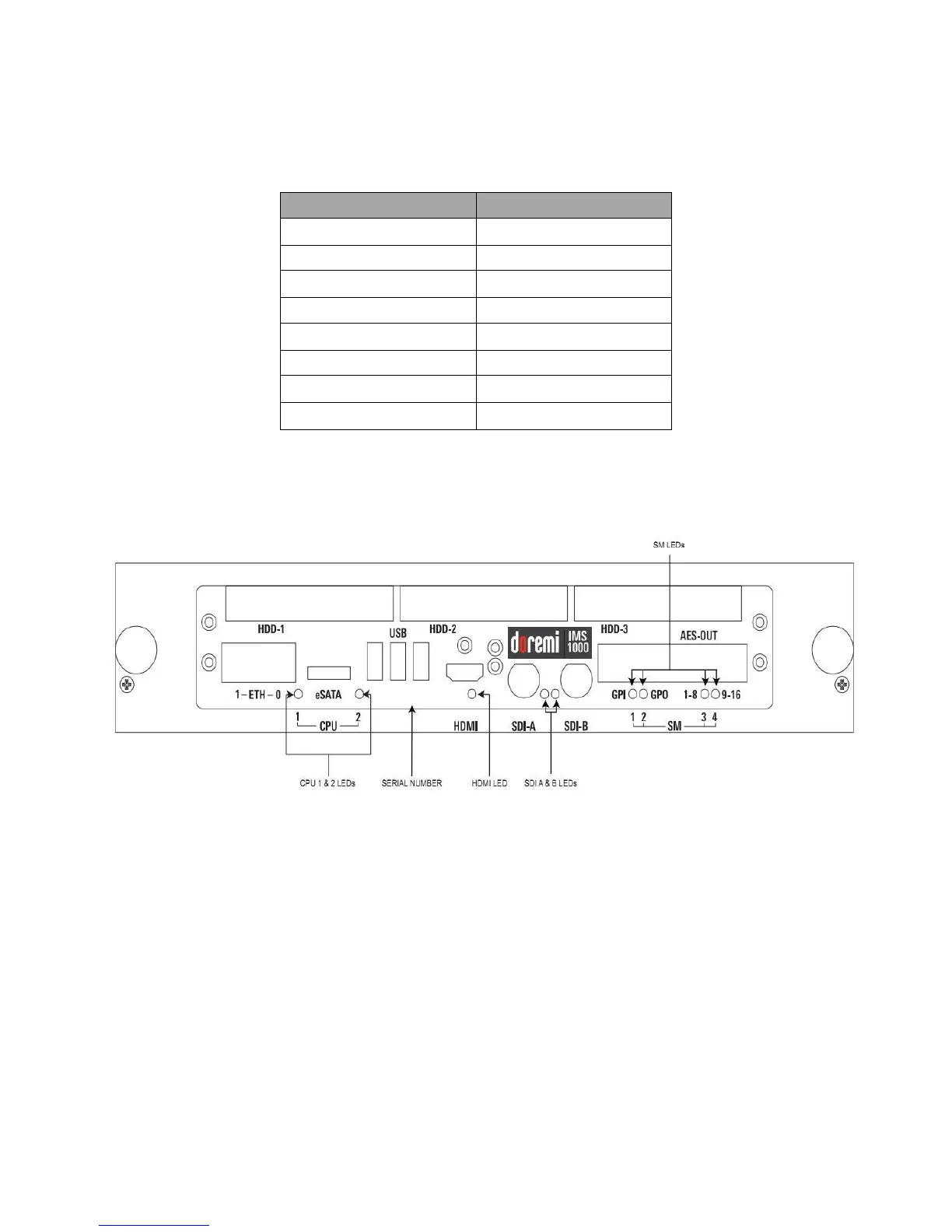

Figure 5: LED Diagram
For more information, please refer to Section 20.
