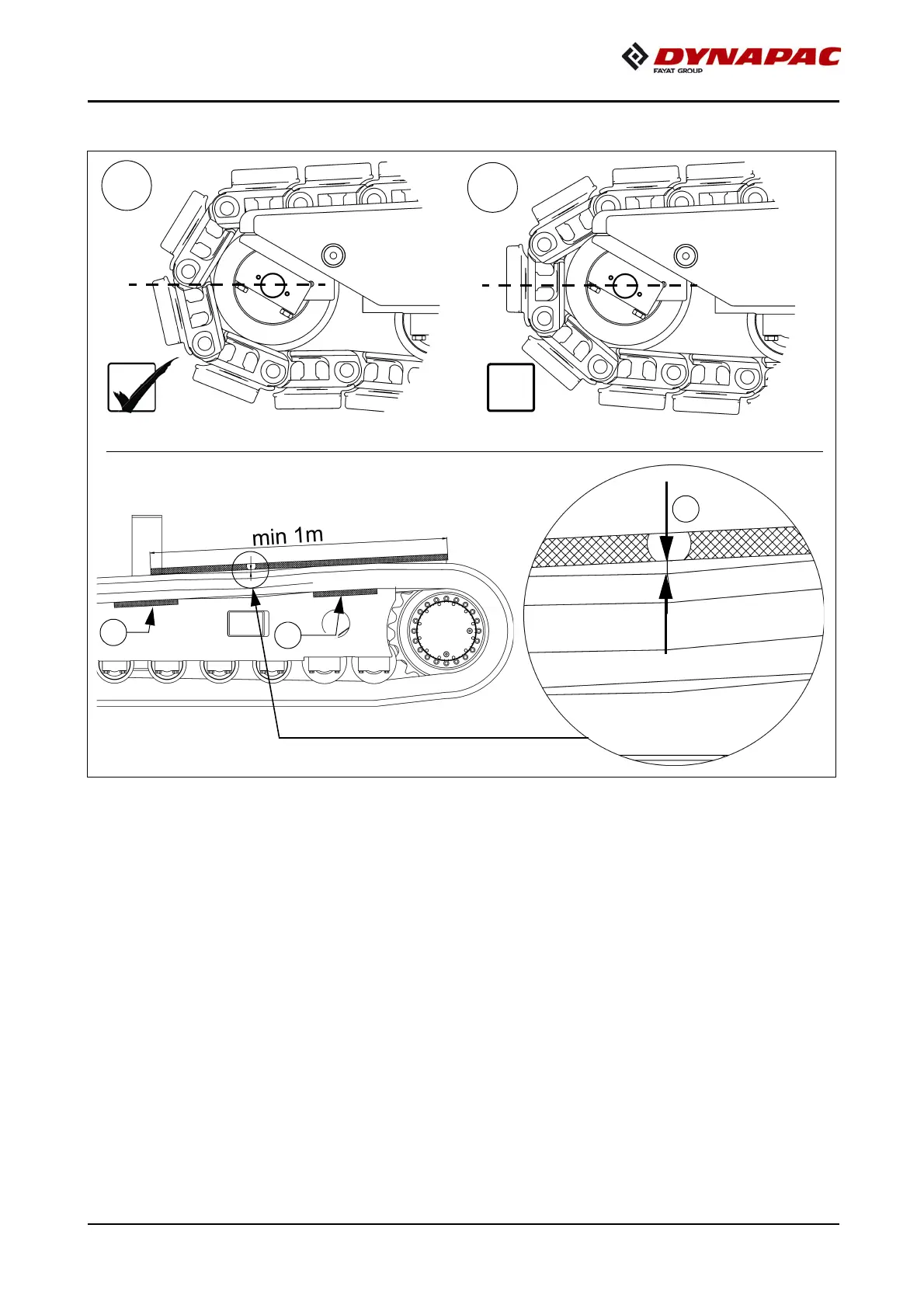

- Before checking/adjusting the chain tension, ensure that the position of the chain
to the idler wheel is as shown in diagram (A).
A
Correct if necessary by moving the vehicle a little.
- Insert a measuring rule between the sliding piece (C) and (D) of the track to
determine the maximum slack:
- the distance (E) between bottom plate and measuring rule must be 10-20 mm.
