Furuno FEA-2107-BB - 10.6 Using Manual Update Editor with True Symbols

8. Vector Chart Material
8-8

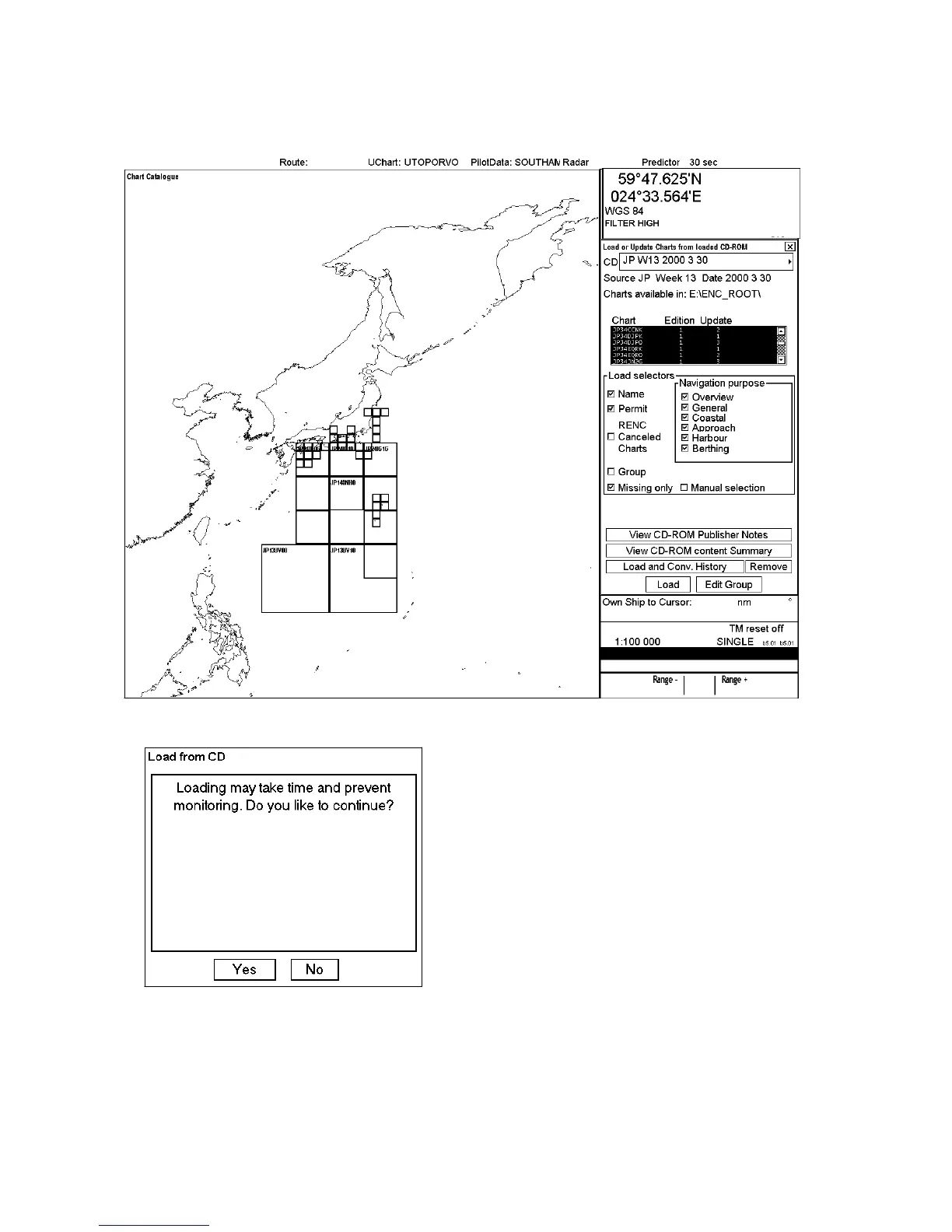

5. In the Load or Update Charts from loaded CD ROM dialog box (see page 8-10), choose the charts to load into
the ECDIS. Click the Load button to load charts into the ECDIS. See also "Interpretation of Load or Update
Charts from loaded CD ROM dialog box" on page 8-10.
North Up TM
ECDIS only
HDG 070.0°
SPD
(CALC)
1.8 Kt
SB
(POSN)
1.7 Kt
COG
(POSN)
045.1°
SOG
(POSN)
2.0 Kt
6. Before loading starts (then automatically converts them into SENC format) you are asked confirmation for this
operation.
