9. Raster Chart Material
9-25
You can select a chart by clicking the limit of the chart in the ARCS Catalogue dialog box. The information about
the selected chart is displayed in the Selected Chart field.

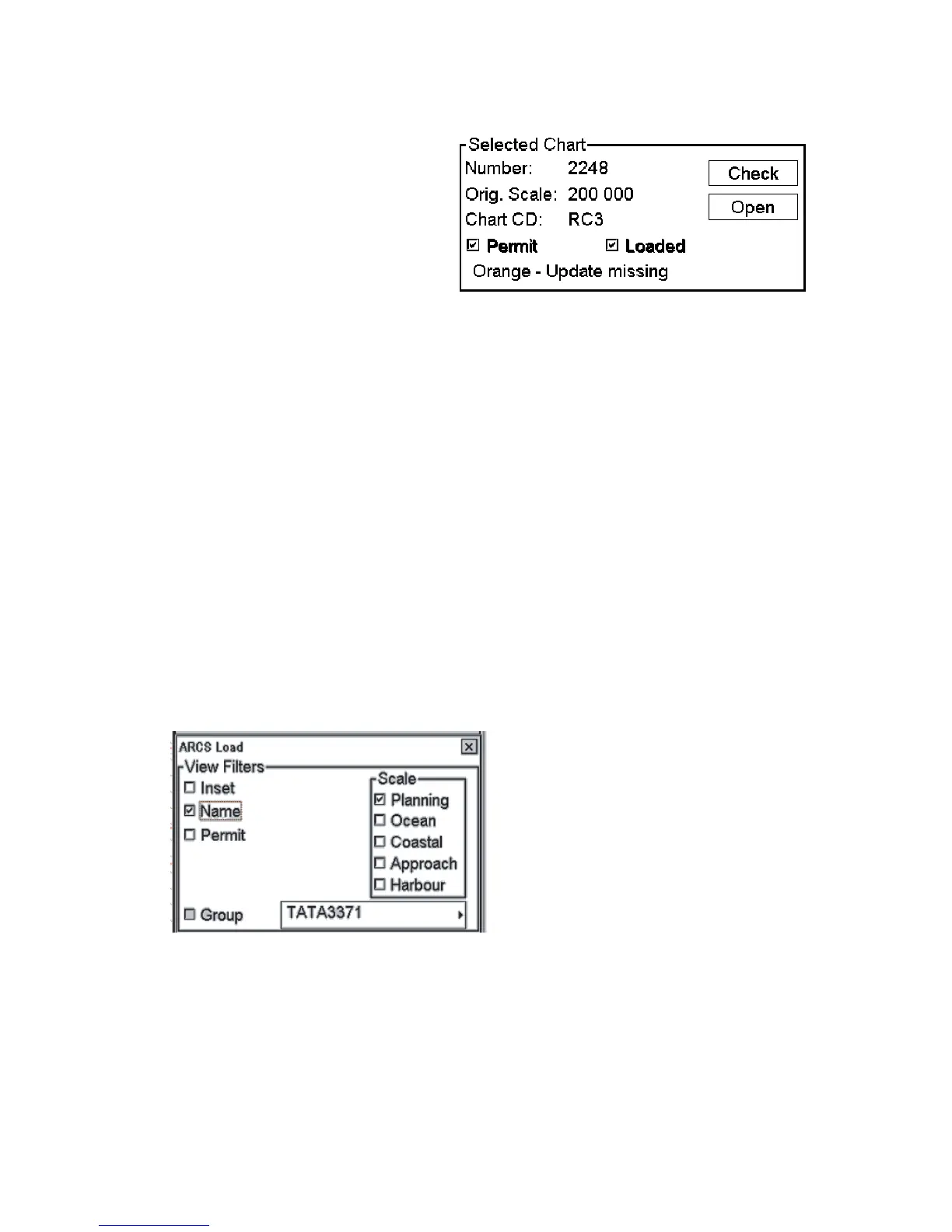

After you have clicked the limit of chart you get
information of the chart in Selected Chart window
as follows:
• Number: Chart number as stated on the
corresponding paper chart.
• Orig. Scale: Scale of original paper chart.
• Chart CD: The number of the CD-ROM in
which selected chart is stored.
• Permit: If selected there is permit in the
ECDIS.
• Loaded: If selected chart is loaded into the
ECDIS.
• Chart usability and Update Status (in the
example at right the update is missing for
orange color chart limit)
The Selected Chart window also contains several buttons for handling charts. The Check button checks if the
edition and updates of the selected chart are valid. The Open button opens selected chart, if it has been loaded and
the system has a permit for selected chart.
9.12 How to Group ARCS Charts
9.12.1 How to create an ARCS chart group
To create a ARCS chart group, do the following:
1. Open the Chart menu.
2. Select Chart Catalogue from the menu to show the ARCS Catalogue dialog box.
3. Click the Groups button to show the Group dialog box. See the figure below.
4. Click the New button, use the scrollwheel to create a name for the new group then click the OK button.
Entered group name (in the example above it is TATA3371) appears in the Edit Group field. Now you can define
chart cells to include in this group, following the procedure on the next page.
