Furuno FEA-2807 - Passage Plan Report

13. Route Planning
13-19
13.9 Passage Plan Report
The Passage Plan report generates WPT report together with Notes report. The system automatically attaches Notes
from the planning mode on the route plan when you select the Passage Plan report. To display the report viewer,
click Route in the information area, click the Plan button, put the cursor on the triangle in the Plan Route dialog
box, select Passage Plan Report then push the scrollwheel. To close the report, click X in the right corner of the
report viewer. You can print the report by clicking the Print Text button.
The example below shows that a passage plan has been generated using the route plan "SOUTHAMPTON
ROTTERDAM" and Notes generated for "SOUTHAMPTOROTTERDAM".

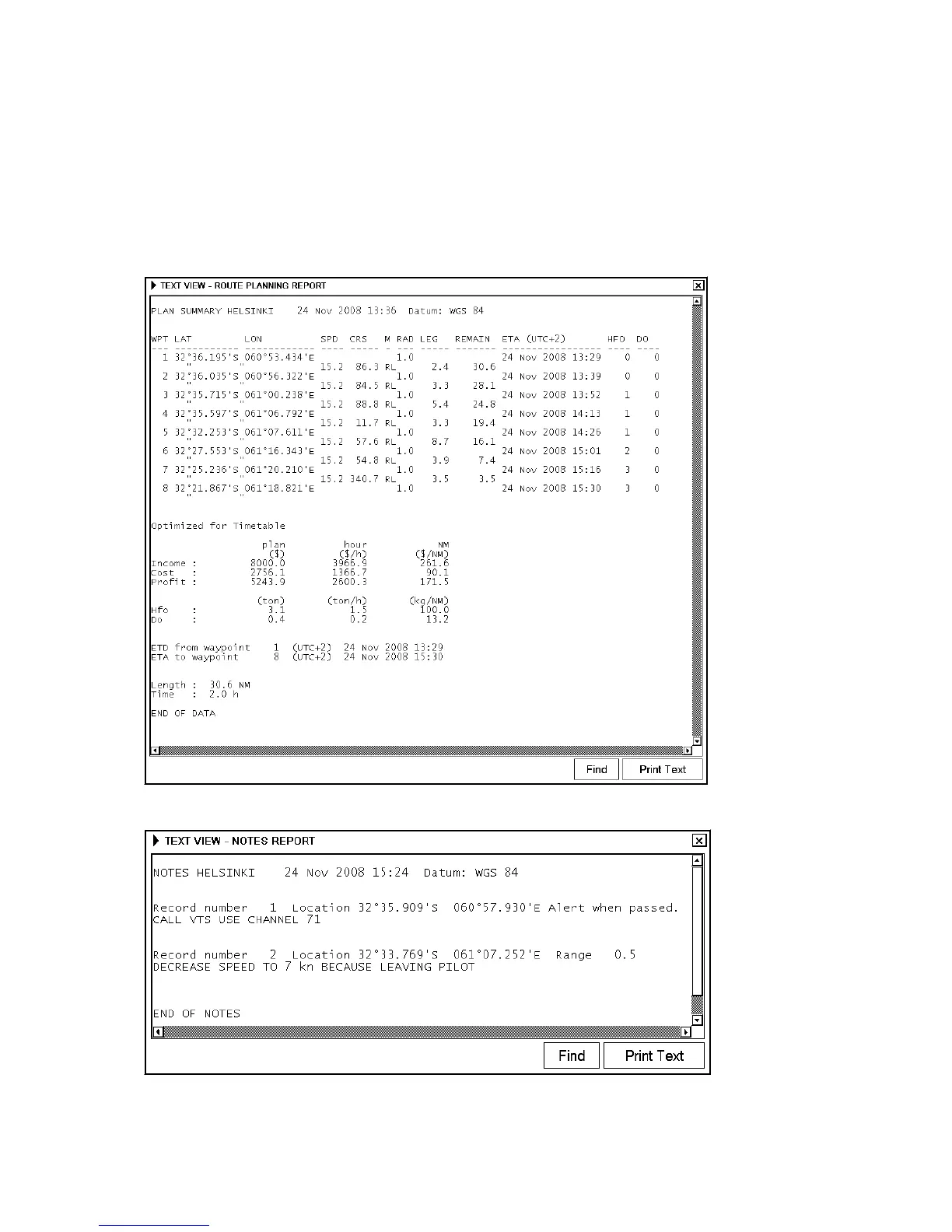

An example of WPT report
An example of Notes report
