11. Chart Alerts
11-9
11.5.1 How to find chart alerts leg by leg
After you have done chart alert calculation, the system is able to show you legs on the route where danger areas are
located. All the alerts for each leg where alerts occur are shown in the Alerts list. The list of alerts is based on
selections made in the Chart alert parameters sub menu. To find chart alerts by route leg, do the following:

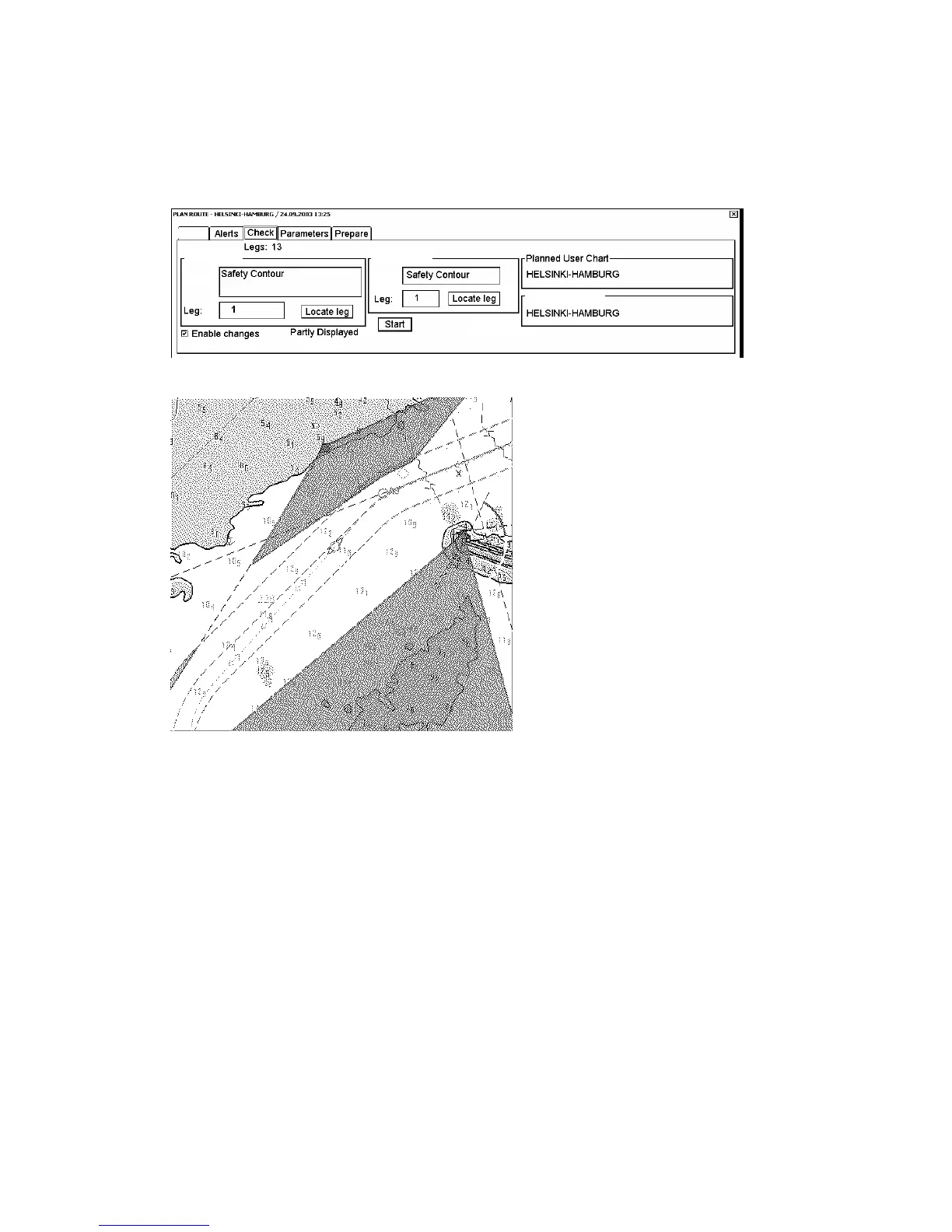

1. In the Check page of the Plan Route dialog box, the Alerts by leg field has a selection box where you may select
desired leg number.
Alerts by leg
Legs by alert
Alerts: 11
Legs by alert
Alerts by leg
Alert:
Alerts:
Planned Notes
WPT
2. Select the Alert from the Alerts by leg field then click Locate leg button in the same field. The system will
display selected leg on the electronic chart area as shown below.
