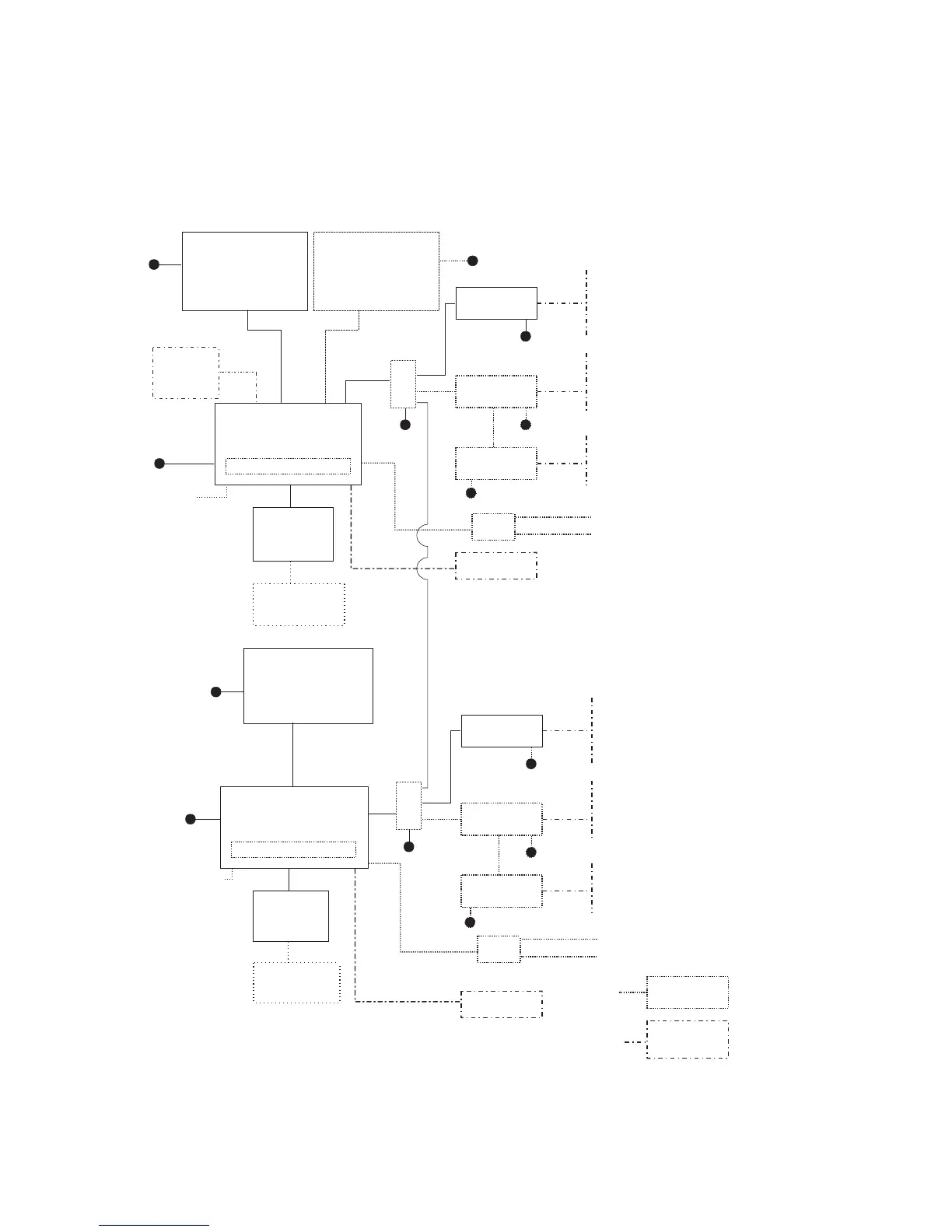

1.2.2 Multiple workstation configuration
In the multiple workstation configuration, there are two workstations connected together by a Local Area Network
(LAN). In this configuration, one workstation is used as the "sensor source" for navigation sensors and the other
workstation is used as the sensor source workstation that communicates with sensors, receiving and transmitting
data from/to workstation via the LAN. In the multiple workstation configuration (two fully redundant navigation
workstations), where navigation sensors are connected to two workstations, the sensor source may be changed and
still receive and transmit information from/to the system and to/from navigation sensors.
ECDIS PROCESSOR
EC1000C
LAN-ADAPTER
EC-1010
LAN-ADAPTER
EC-1010
B-ADAPTER
EC-1020
TT RADARS
NAVTEX
TRACKPILOT
LOG/DUAL AXIS LOG
AIS
GYRO COMPASS
NAVTEX
ENGINE CONTROL
ECHOSOUNDER
WIND SENSOR
WATER TEMP. METER
AMWSS
GYRO COMPASS
(SYNCHRO, STEPPER)
LOG (200P/NM)
ANALOG INPUT (8 CHANNELS)
ANALOG OUTPUT
100-230 VAC
100-230 VAC
HUB-
100
100-230 VAC
24 VDC
24 VDC
24 VDC
RADAR OVERLAY PCB
ECDIS PROCESSOR
EC1000C
LAN-ADAPTER
EC-1010
LAN-ADAPTER
EC-1010
B-ADAPTER
EC-1020
TT RADARS
NAVTEX
TRACKPILOT
LOG/DUAL AXIS LOG
AIS
GYROCOMPASS
NAVTEX
ENGINE CONTROL
ECHOSOUNDER
WIND SENSOR
WATER TEMP. METER
AMWSS
GYROCOMPASS
(SYNCHRO, STEPPER)
LOG (200P/NM)
ANALOG INPUT (8 CHANNELS)
ANALOG OUTPUT
OPTION
EXTERNAL
DEVICE
HUB-
100
100-230 VAC
24 VDC
24 VDC
RADAR OVERLAY PCB
100-230 VAC
RADAR 1 (VIDEO, HL, AZ)
Selector
RADAR 2 (VIDEO, HL, AZ)
REMOTE CONTROL
UNIT
RCU-016
Category of Units: All units protected from weather
FAR-2xx7
series radar
FAR-2xx7
series radar
Selector
PRINTER
(USB)
PRINTER
(USB)
24 VDC
RADAR 1 (VIDEO, HL, AZ)
RADAR 2 (VIDEO, HL, AZ)
CALCOMP
DRAWING-
BOARD III
DIGITIZER
100-230
VAC
100-230
VAC
MONITOR UNIT
MU-201CE (FEA-2107)
MU-190 (FEA-2107)
MU-231CE (FEA-2807)
MU-231 (FEA-2807)
MONITOR UNIT*
MU-201CE (FEA-2107)
MU-190 (FEA-2107)
MU-231CE (FEA-2807)
MU-231 (FEA-2807)
*Conning use
CONTROL UNIT
RCU-018
or
CONTROL UNIT
RCU-015
MONITOR UNIT
MU-201CE (FEA-2107)
MU-190 (FEA-2107)
MU-231CE (FEA-2807)
MU-231 (FEA-2807)
CONTROL UNIT
RCU-018
or
CONTROL UNIT
RCU-015
REMOTE CONTROL
UNIT
RCU-016
Multiple workstation with connection to navigation sensors
