Furuno FEA-2807 - 4 Control Units; How to Control the ECDIS; Control Unit RCU-018

4-1
4. Control Units
4.1 How to Control the ECDIS
The operator controls the ECDIS with the Control Unit RCU-018 or the Control Unit RCU-015. Either unit is
equipped with a trackball, right and left mouse buttons and a scrollwheel. The RCU-018 is additionally equipped
with a keyboard. All functions of the ECDIS can be accessed using the trackball, mouse buttons and scrollwheel
alone. To operate from a menu with the mouse, roll the trackball to select desired item, operate the mouse buttons or
scrollwheel (depending on item) to select option then push the scrollwheel to confirm your selection.
4.2 Control Unit RCU-018
The Control Unit RCU-018 consists of a keyboard, the trackball, scrollwheel and mouse buttons. The trackball
functions like a mouse; the operator rolls the trackball and operates the left and right mouse buttons to access
functions.
1
MARK
2/ABC
P BRILL
3/DEF
MODE
4/GHI
OFF CNT
5/JKL
SCROLL
6/MNO
RECORD
7/PQRS
PLAN
8/TUV
MONITOR
9/WXYZ
NEXT
CANCEL
SENSOR
0/|_|
CU/TM R
SHIFT
HELP
OFF ON OFF ON
MOB
EVENT
TARGET
DATA
MENU
+
RANGE
-
F1
ALARM
ACK
SYSTEM
FAILURE
F2
STD
DSP
RADAR
EBL VRM
A/C RAIN A/C SEA
GAIN

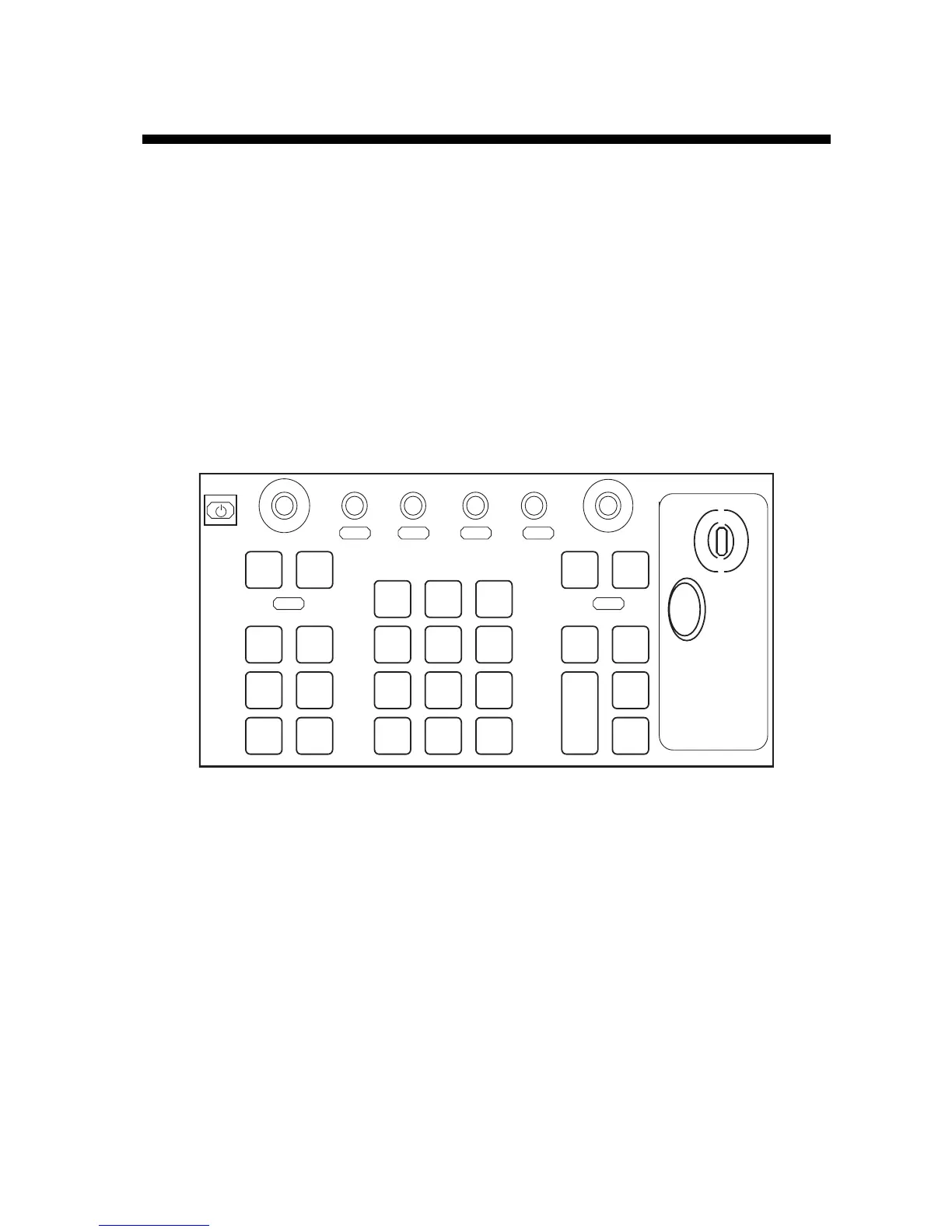

Layout of the Control Unit RCU-018
