15.7.5 Area page
The Area page lets you inscribe
areas on a user chart. To select this
page, push the right mouse button
(Next Card) then click the tab with
the left mouse button.

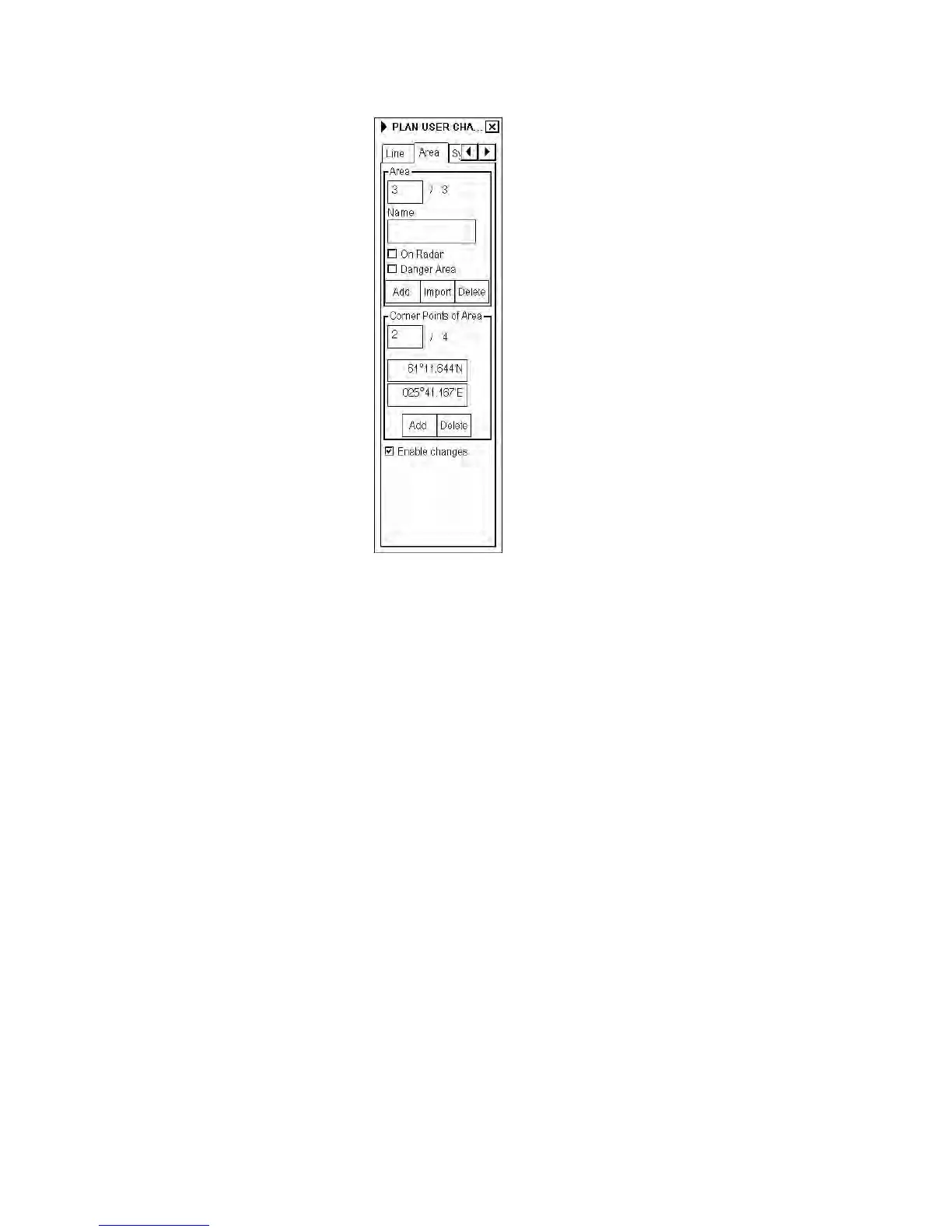

Area window
When a operator defines an area for a user chart he adds an area object then gives a name and selects if it is
displayed on radar and/or if it is used for safe water calculation (Danger Area).
Area box:
Number of current area appears in this field. User can select area by editing desired
number in the Current box or create new one.
Name:
Name the current area.
On Radar:
Check to also display the area on the radar display.
Danger Area:
Check to include the current area in chart alert calculation.
Add:
Set different area. Click button then set area.
Import:
Import area.
Delete:
Delete area.
Corner Points of Area:
See description on next page.
Enable changes:
Check in order to modify user chart.
Note: The user chart may only be modified in the Course-up or North-up mode.
