How to edit position of chart objects
An object can be a point, line or area.
• A Point has only one point in its presentation.
• A Line can consist of one or more chains. A chain consists of two or more points.
• An Area consists of a line that is closed.
2.
3.
5.
4. Set cursor on
position and push
left mouse button.
Click Accept
button.

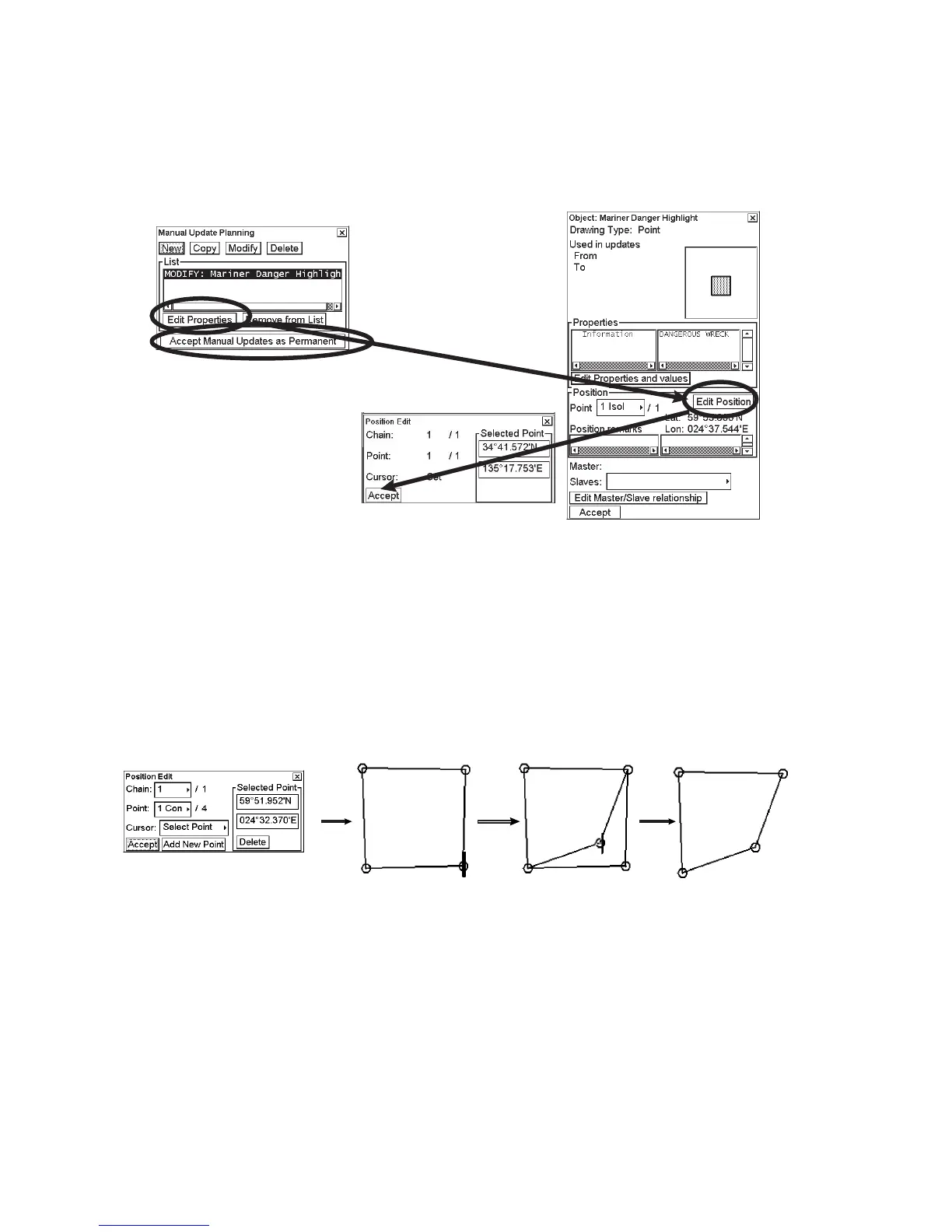

1. Follow steps 1-3 on page 10-6 to display the Manual Update Planning dialog box.
2. Press the Modify button, select object on the chart then click the Edit Properties button. An Object window
appears.
3. Click the Edit Position button.
4. With the Position Edit window open, you can edit the position of the selected chart feature. For further details,
see the next several pages.
5. Click the Accept Manual Updates as Permanent button.
Example of how to modify a line
1) Activate Position Edit.
3) Keep left mouse button pushed down
when you modify position of a point.
2) Place cursor on
point desired.
