5.10.2 LCD Monitor
The Voluson E-Series system has a free adjustable LCD Flat panel monitor in relation to the user interface.
Monitor Arm MTD20 (DAEIL) Monitor Arm (Ergotron)
•
tilt: + 40° / - 90°
•
rotate: +/- 90°
•
tilt: + 30° / - 75°
•
rotate: +/- 90°
5.10.3 Control Console Positioning
The control console can be rotated, translated and adjusted in height.
•
height adjustment: 20 cm (7.9 inch)
•
translation adjustment: 20 cm (7.9 inch)
•
rotation adjustment: +/- 40°

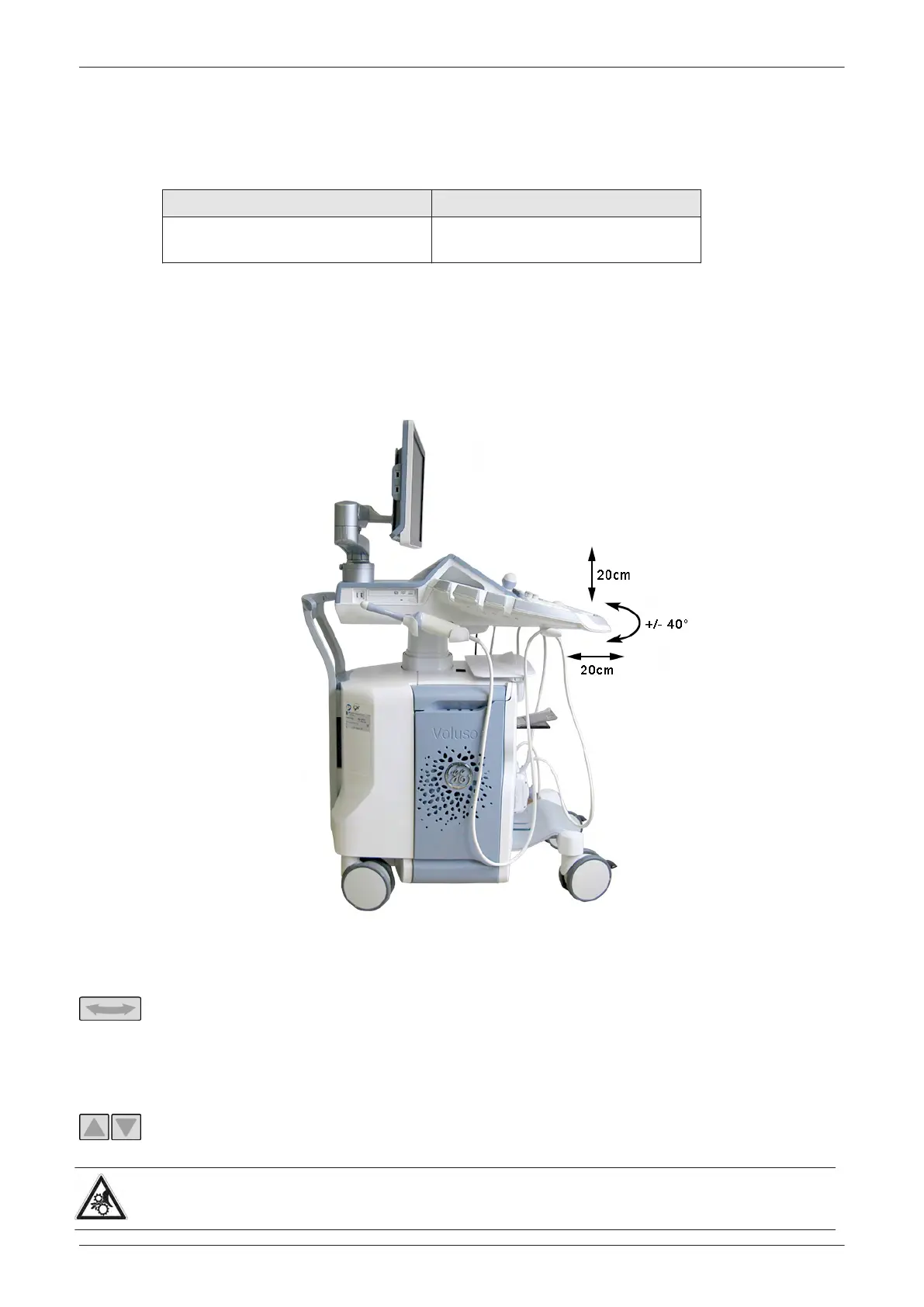

Figure 5-22 adjustable control console
5.10.3.1 Rotation/Translation of the Control Console
Press the Brake button inside of the handlebar opening to rotate/translate the console to the
desired position. Press the Brake button again in order to secure the console against
uncontrolled movement.
5.10.3.2 Height Adjustment (Elevation) of the Control Console
Height adjustment is done with the Lift UP / Lift DOWN button inside of the handlebar opening.
As long as a button is pressed, the control console can be lifted / lowered.
Caution
Make sure that nothing would be jammed while moving!
Components and Functions (Theory)
5-46
Voluson E-Series Service Manual
5539550APB Revision 6
