GE Voluson E Series - Connecting the Footswitch

3.5.10 Connecting the Footswitch
The Footswitch should be directly connected to any accessible USB-port on the Voluson E-Series (e.g., on
rear of the system).
Note Connection is always the same (no differences between PC-Motherboard version of the Voluson E-Series
system).
After physical connection, adjust the Footswitch as described in Section 3.7.1.8 on page 3-45 .

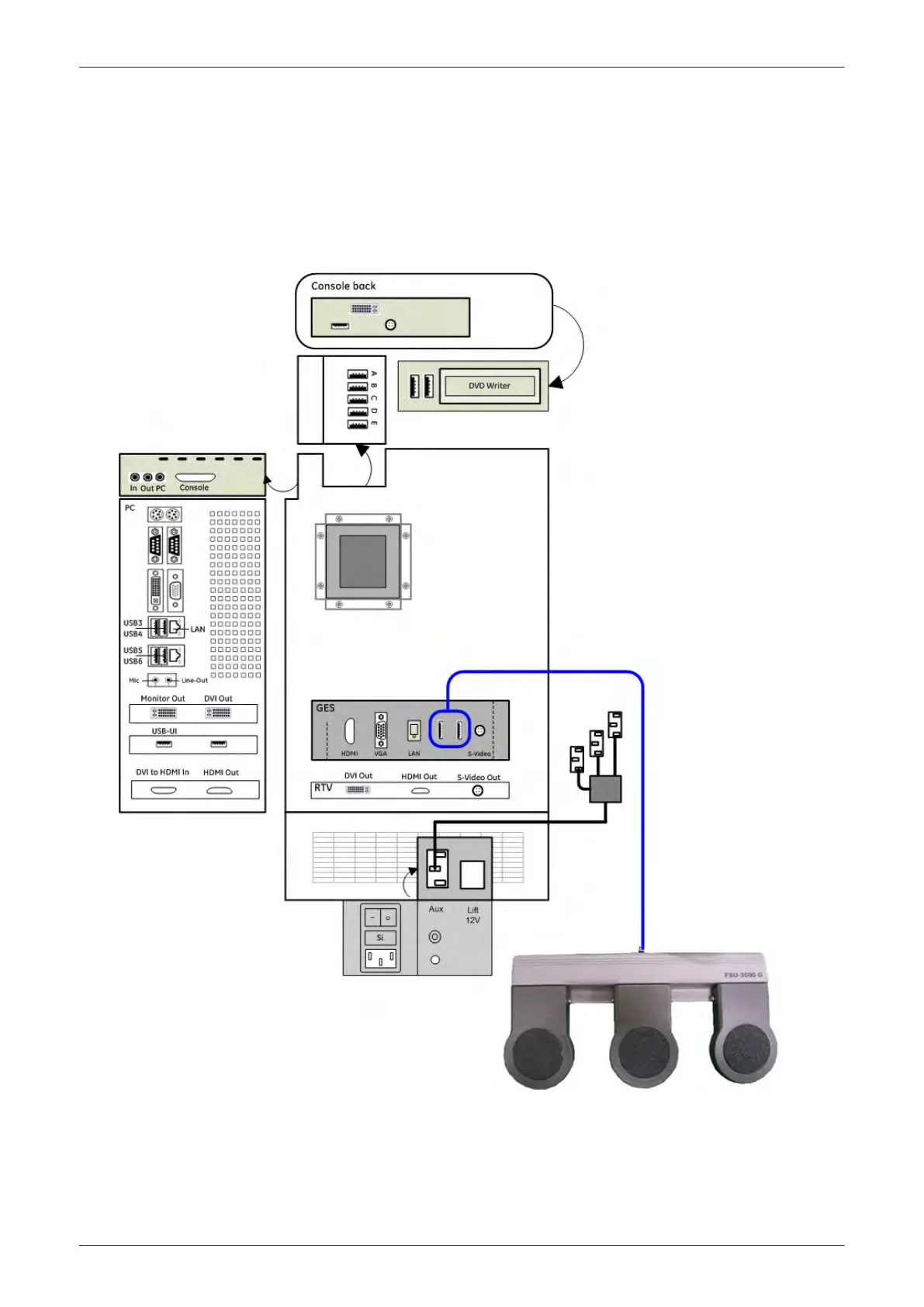

Figure 3-23 Connection Scheme - Footswitch
Setup Instructions
