8.17.1 Mounting/Replacing a Secondary "Patient" Monitor
Note
A Secondary Monitor is NOT intended for diagnostic use. It is an additional device used to allow the patient
to watch the proceedings.
8.17.1.1 Preparing the Isolation Transformer

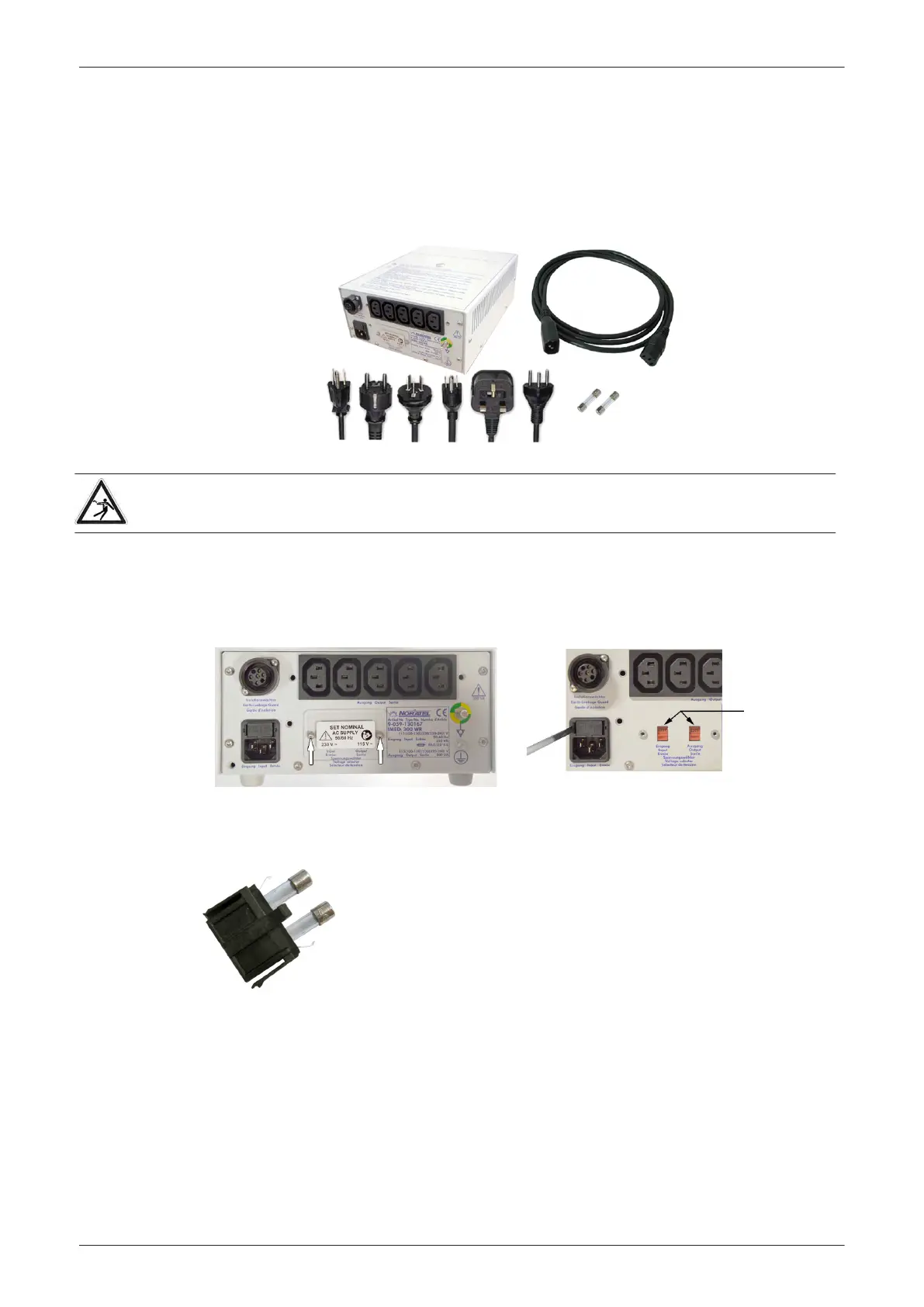

Figure 8-34 Isolation Transformer kit for Secondary Monitor
Caution
For changing the input/output voltage or fuses the isolation transformer should not be connected. The wrong
fuses and position of the input/output voltage selector may cause major damage on connected peripherals.
1. Before using the Isolation Transformer you must check the input/output voltage settings to meet the
ratings of the line power available in your location or country.
2.
For changing the input/output voltage, remove the label by means of a small socket wrench.
3. Switch both voltage selectors (input as well as output voltage) to 115V or 230V. Consider that changing
the input/output voltage also requires to change the fuses!
Figure 8-35 change input/output voltage
4. For changing the fuses, open the fuse protection at the power inlet block with a small screwdriver,
remove the fuse holder and exchange fuses.
Figure 8-36 exchange
fuses
115V (100-130V) -> 4AT
230V (220-240V) -> 2AT
5. Assure that the connected loads can be operated with the chosen voltage.
