3.9 External I/O Connectors

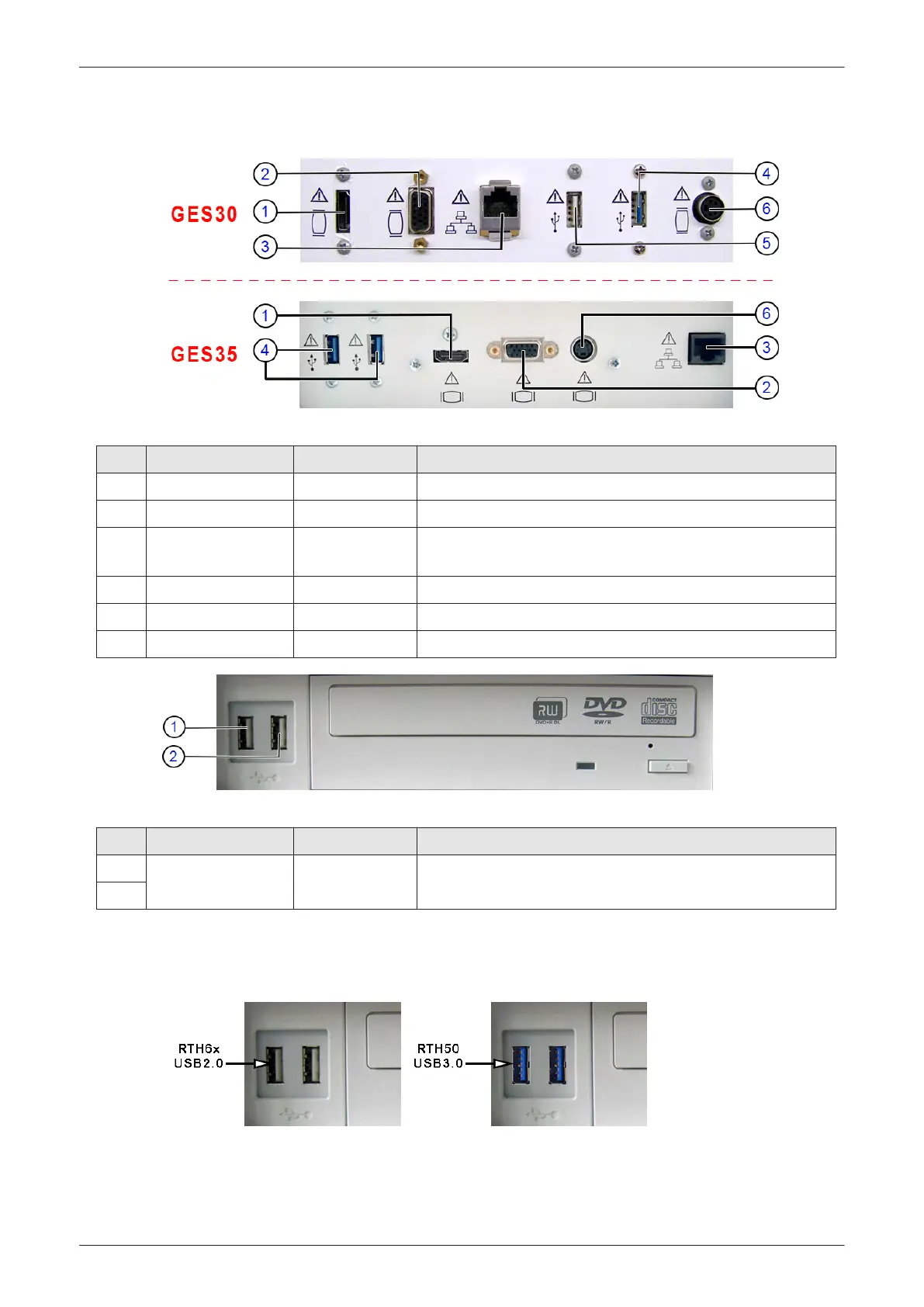

Figure 3-40 External I/O connectors - on rear of system (GES)
Item Connector Name Table Number Description
1 HDMI OUT Table 3-7 Connector for external monitor
2 VGA OUT Table 3-8 Connector for external monitor
3 Network Table 3-9 GES30: DICOM input/output, twisted pair RJ-45 10/100 megabit/s
GES35: DICOM input/output, twisted pair RJ-45 10/100/1000 megabit/s
4 USB Table 3-11 USB 3.0 port
5 USB Table 3-10 USB 2.0 port (GES30 only)
6 S-Video OUT Table 3-12 S-Video OUT connector, PAL/NTSC (depending on system setup)
Figure 3-41 External I/O connectors - next to DVD drive
Item Connector Name Table Number Description
1
USB
Table 3-10
Table 3-11
USB 2.0 port (RTT/RTH6x)
USB 3.0 port (RTH50)
2
How to identify User Interface components RTH6x and RTH50
The color of the USB ports for external use (beside the DVD drive) enable quick differentiation between
RTH6x and RTH50.
Figure 3-42 RTH6x => "white" USB2.0 ports / RTH50 => "blue" USB3.0 ports
Setup Instructions
3-50
Voluson E-Series Service Manual
5539550APB Revision 6
