8.15 Replacement of the Caps for Hardkeys
Note
Replacement procedure depends on key caps that have to be replaced!
•
If just the circle key caps have to be replaced, refer to: Section 8.15.1 on page 8-26
•
If trackball buttons or mode key slices have to be replaced too, please contact your local distributor or
GE service representative
8.15.1 Replacement of Circle Key Caps only
Manpower
One person, approx. 1 minute/cap
Tools
small-sized slotted screwdriver or tweezers
8.15.1.1 Circle Key Caps - Replacement Procedure
1. By means of a small slotted screwdriver, carefully push against the Circle Key Cap.
2. Lift the cap, until it is completely loosened from its base.

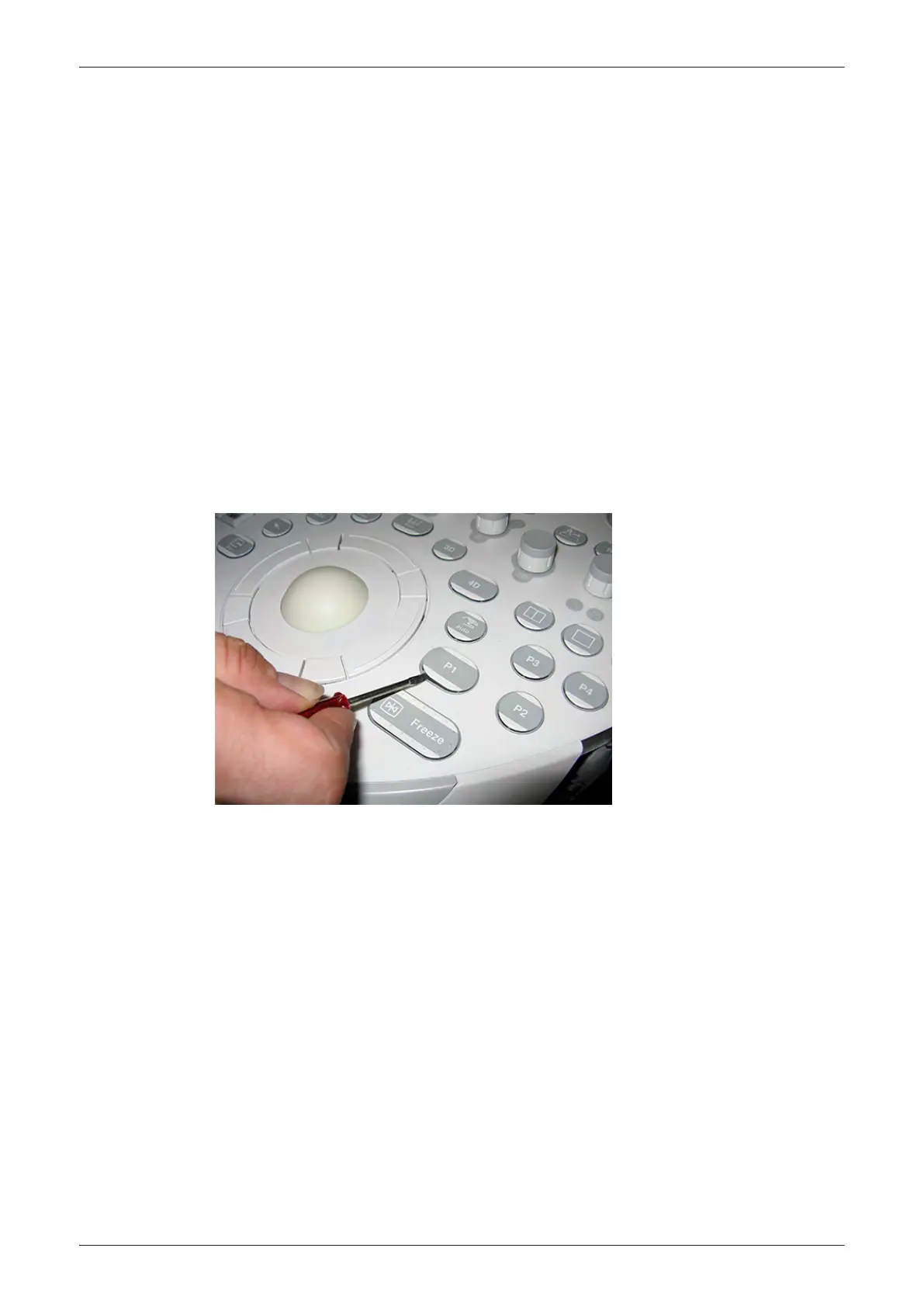

Figure 8-32 push against the circle cap and lift it
3. Place the new Key Cap down until it snaps into position.
Replacement Procedures
8-26
Voluson E-Series Service Manual
5539550APB Revision 6
