6.1 Regulatory
Verify, where applicable, that any regulatory information or tests required by national law are present and
accounted for, and any regulatory tests required by national law are performed and documented.
6.2 LCD Monitor Adjustment
The Voluson E-Series system has a free adjustable LCD Flat panel monitor in relation to the user interface.
Monitor Arm MTD20 (DAEIL) Monitor Arm (Ergotron)
•
tilt: + 40° / - 90°
•
rotate: +/- 90°
•
tilt: + 30° / - 75°
•
rotate: +/- 90°

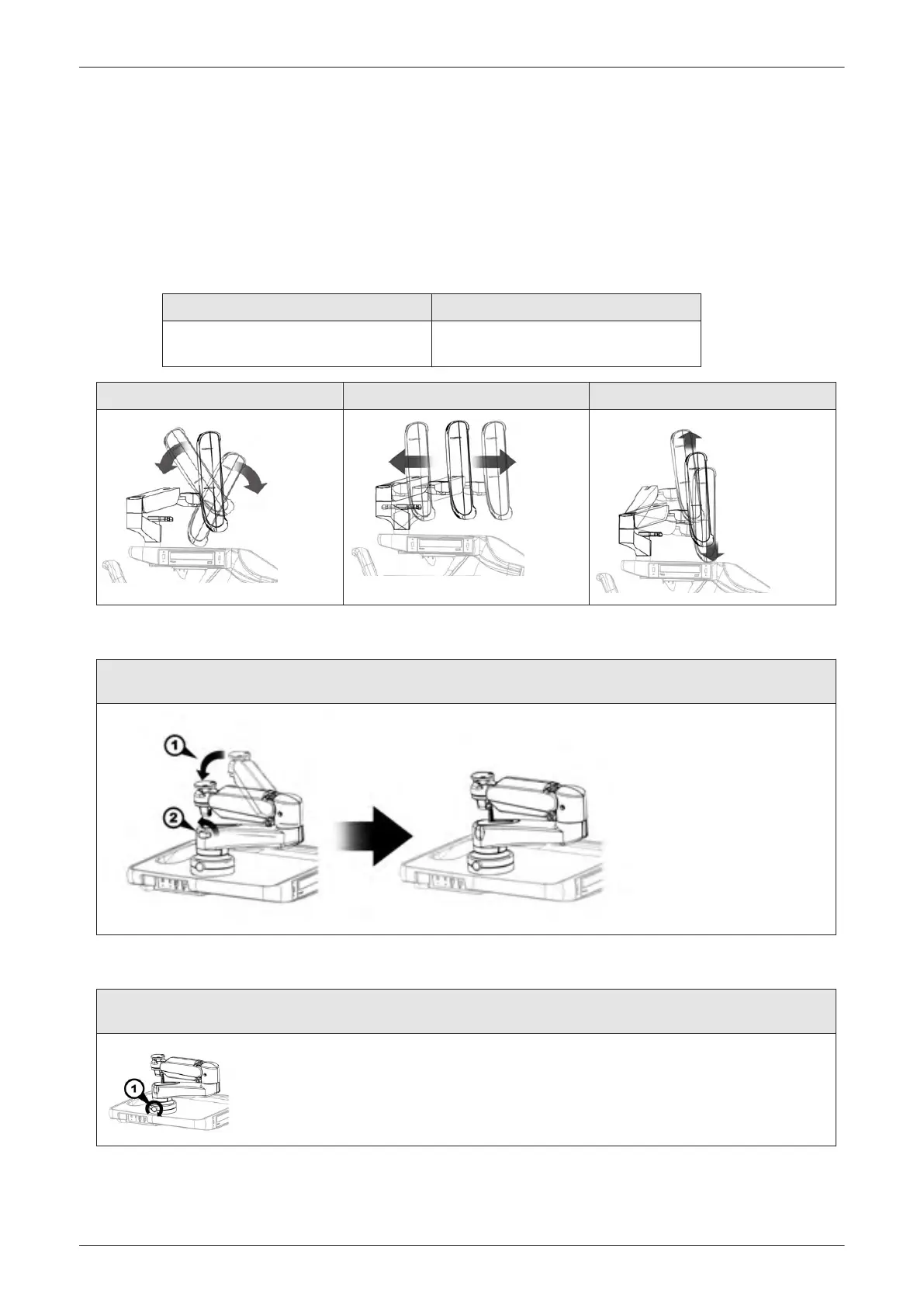

Incline the monitor Move back and forth Move up and down
Lock Height Adjustment
Move the upper monitor arm parallel to the lower arm and push it down (1), then lock it by turning the knob (2) counterclockwise.
Release by turning the knob clockwise.
Lock Arm Rotation
Rotate the arm to center position and turn the knob (1) clockwise till the rotation is locked. Release by turning the knob
counterclockwise.
Service Adjustments
6-2
Voluson E-Series Service Manual
5539550APB Revision 6
