7.8.6 DVD/CD-Drive Tests
Content in this section
7.8.6.1 Export images from "Local Archive" to DVD/CD+R/RW - - - - - - - - - - - - - - - - - - - 7-28
7.8.6.2 Record Spectral Doppler display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-30
7.8.6.1 Export images from "Local Archive" to DVD/CD+R/RW
1. Insert an empty, formatted DVD/CD+R/RW disc into the drive. At a DVR-Drive use a DVD+RW only!
2. Enter “Patient Archive” by pressing the Patient ID key on the control console.

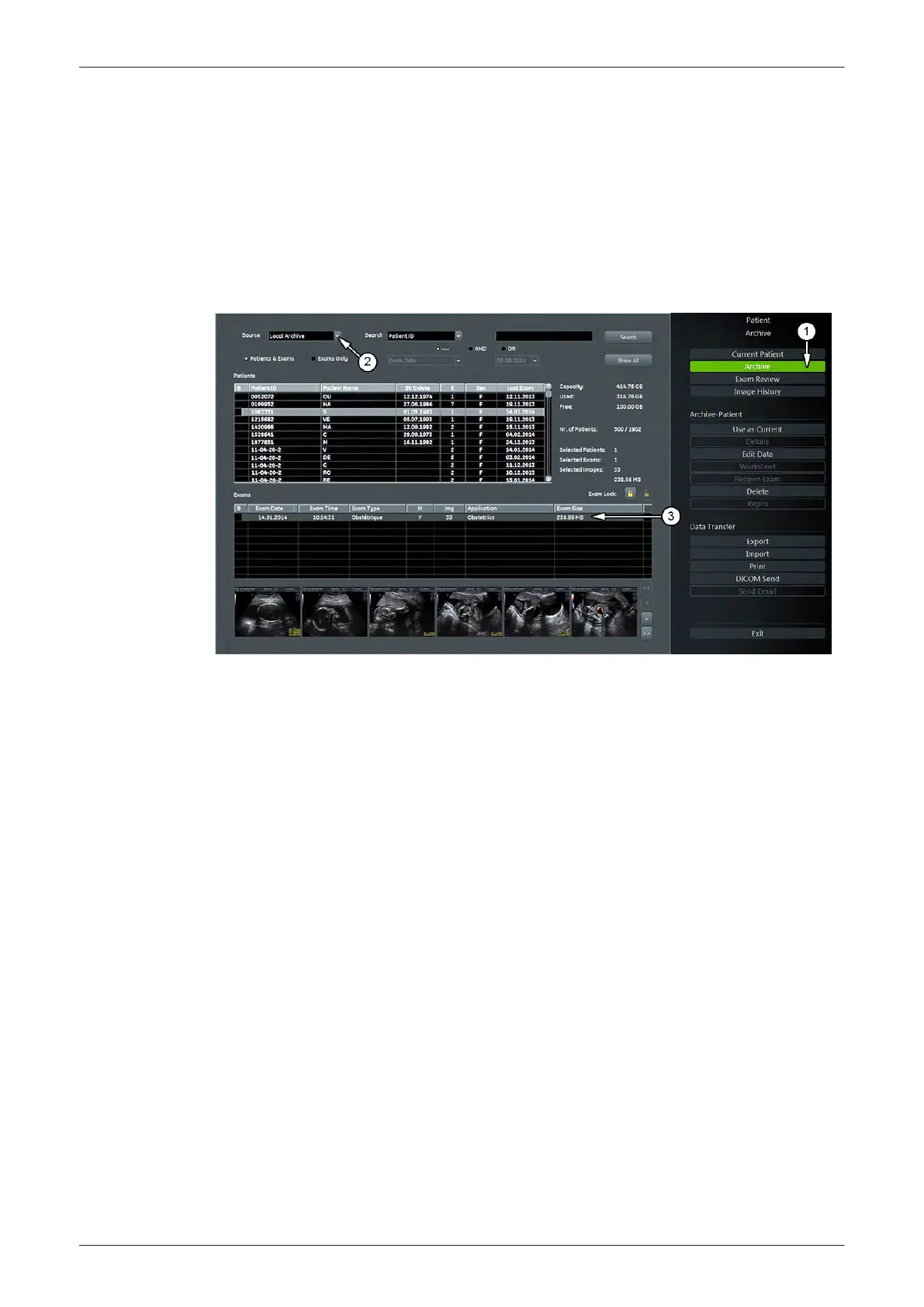

Figure 7-31 Patient Archive - ARCHIVE
3. On the right side of the screen select
Archive (1)
.
4. If not already selected, choose “Local Archive” from the
“Source”
pull-down menu (2).
5. Select an exam with images (3).
Diagnostics/Troubleshooting
7-28
Voluson E-Series Service Manual
5539550APB Revision 6
