Program description - Control adjust | Helicopter models
in its neutral position and can only be controlled via
mixers.
0%
+100%I5
Thr6
Gyr7
E8
TYP
SEL
+100%
0.0 0.0
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
GL
GL
GL
S11 ---
fr
fr
fr
---
---
---
Offset
GL
Normal
Switch assignment

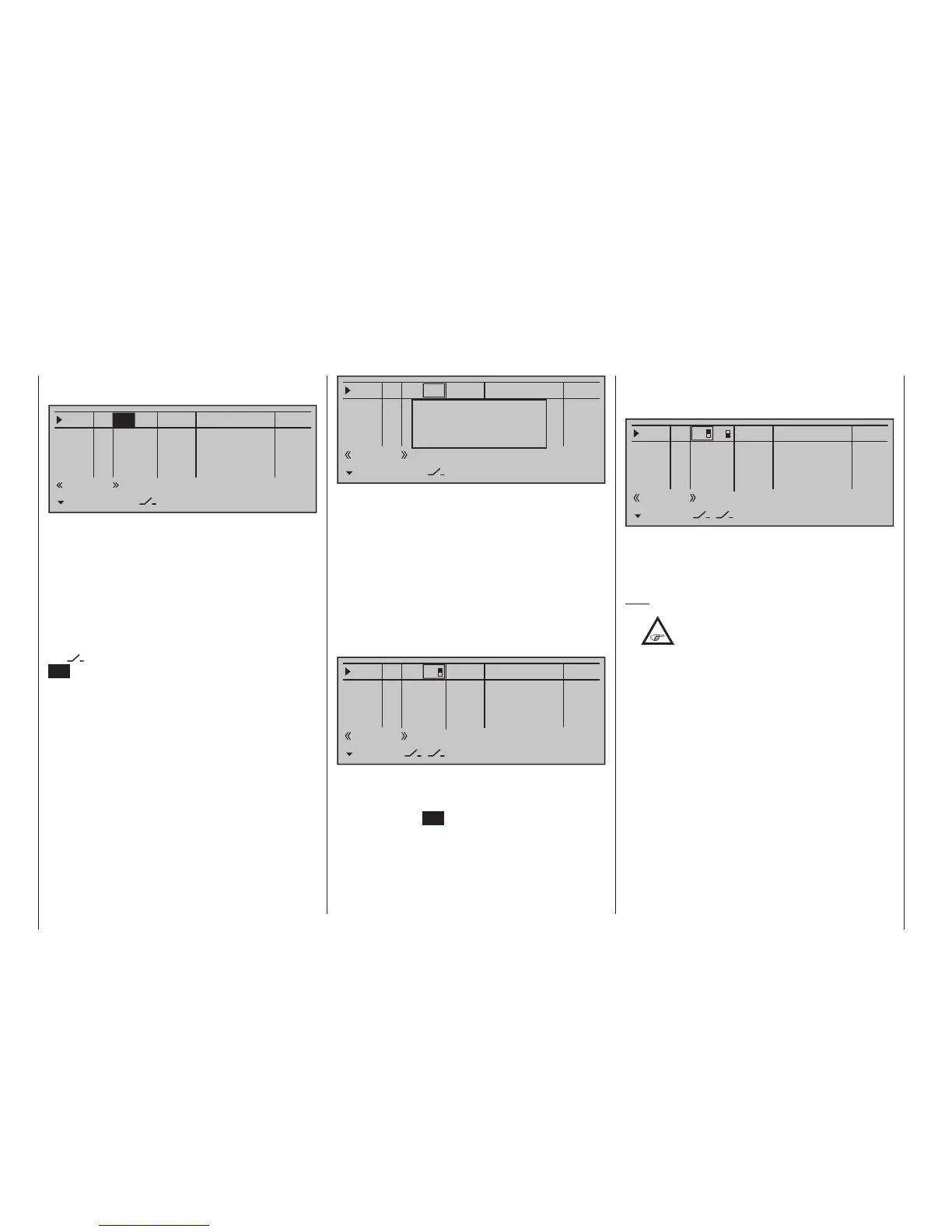

If the input is to be actuated like a switch module, the
input can alternatively be assigned to a switch.
A simple switch can be used to switch back and forth
between two limit values, for example motor On/Off.
A 3-way momentary or toggle switch, see appendix,
achieves the same effect as a 2-channel switch mod-
ule, for example motor Off/Half/Full.
Use the selection keys to move into the column above
the
switch symbol label. Briefly tap the centre
SET key of the right touch pad to activate the option
for assigning a switch.
0%
+100%I5
Thr6
Gyr7
I8
TYP
SEL
+100%
0.0 0.0
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
GL
GL
GL
---
fr
fr
fr
---
---
---
Offset
GL fr
Normal
Move desired switch
to ON position
(ext. switch: ENTER)
Actuate the desired toggle switch from its "OFF" to its
"ON" position or, for a 3-way switch, beginning from
its middle position, assign a switch direction – prefer-
ably the "second" direction. This means, if a function
is to be switched on by moving the switch forward two
positions, i. e. away from the pilot, then begin from the
switch's middle position and move the switch away
from the pilot.
The display will then present the switch number to-
gether with a symbol indicating the given switch direc-
tion. At the same time, the column label in the footer
line will change from SEL into another switch symbol.
0%
+100%I5
Thr6
Gyr7
I8
TYP
+100%
0.0 0.0
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
GL
GL
GL
fr
fr
fr
---
---
---
Offset
GL ---
Normal
7
Now put the 3-way switch back into its middle position.
Move the marker frame as necessary to the left into
the column labelled with the new switch symbol, briefly
tap on the centre SET key of the right touch pad then
assign the switch's other switch direction by once
again starting from the middle position but this time
move the switch in the other direction.
The display will now present the given switch number
together with a symbol indicating the given switch
direction.
0%
+100%I5
Thr6
Gyr7
I8
TYP
+100%
0.0 0.0
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
GL
GL
GL
fr
fr
fr
---
---
---
Offset
GL
Normal
7
8
A simultaneous tap on the or keys of the
right touch pad (CLEAR) while on an input line with
an active transmitter switch assignment – see above
figure – will reset the input back to "fr" and "---".
Tips:
•
When assigning switches, pay attention to
the desired switching direction and also
that all unused inputs remain "free" or are
again reset to "free". This is necessary to ensure
that inadvertent actuations of these unused
controls cannot cause malfunctions.
• The travel setting described below allows the
appropriate end state to be established for an
assigned switch.
Erasing a transmitter control or switch assignment
A simultaneous tap on the or keys of the
right four-way button (CLEAR) while on an input line
with an active transmitter control or switch assign-
ment – see above figures – will reset the given input
back to “fr” and “---”.
