252

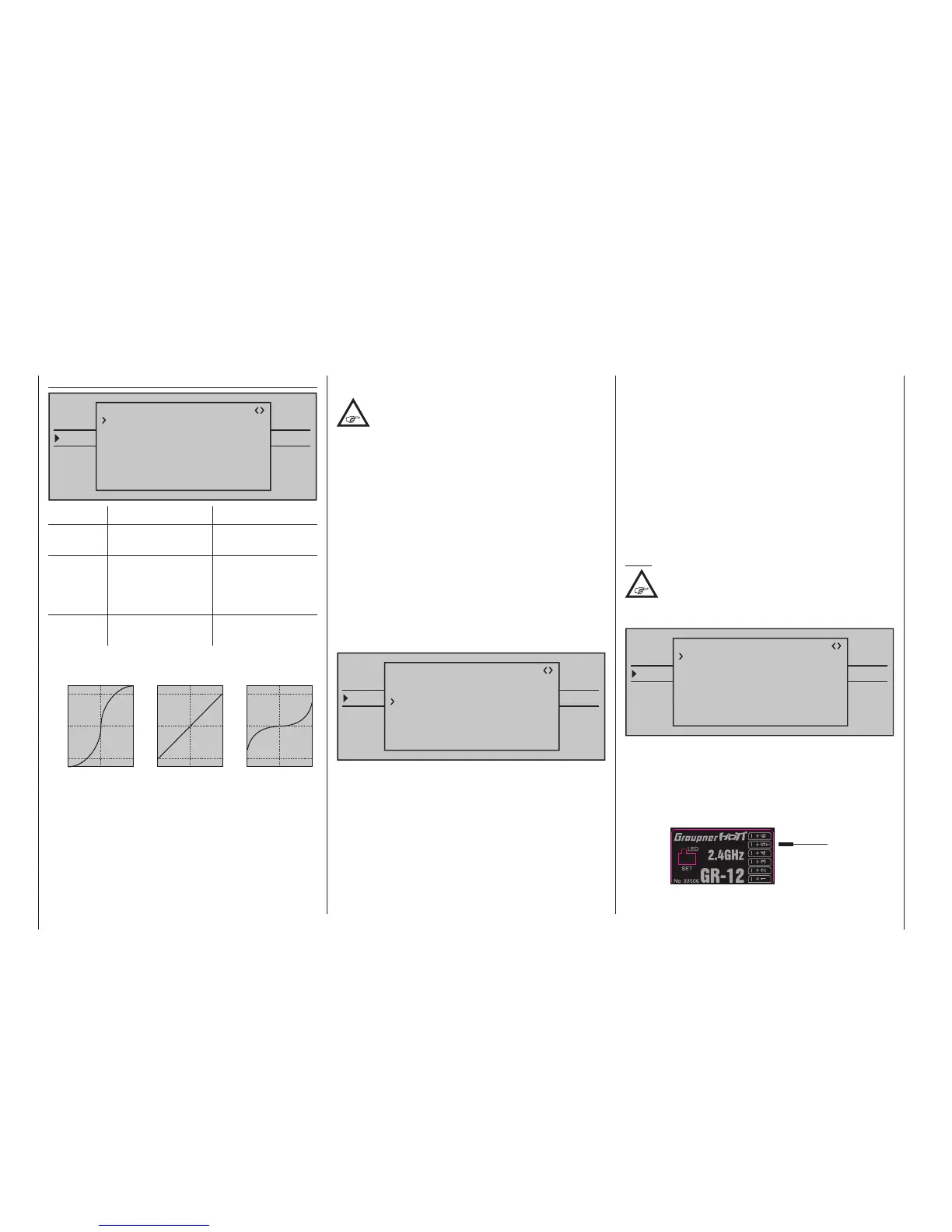

Program description - Telemetry
BUT CAUTION:
This assignment only applies when, on the
transmitter side, neither “2HRSv3+8" is speci-
fied in the “Tail type" line nor is “2AIL" or “2AIL
2FL" specified in the "Aileron/camber flaps" line of the
»Model type« menu, page 104 Otherwise, assign-
ments will have already been made in the transmitter
for control function 3 (elevator), which will then be
split between control channels 3 & 8, or control func-
tion 2 (aileron), which will then be split between con-
trol channels 2 & 5 for the left and right ailerons. The
corresponding control channels (INPUT CH) in the
receiver would in both cases be channels 03 & 08 or
02 & 05.
Therefore if, for example, "2AIL" has been specified
on the transmitter side and the intent here is to utilize
the RX CURVE option instead of the
mc-32 HoTT
transmitter's individually adjustable »Dual Rate /
Expo« menu (see page 132), then two curves must
be set:
TELEMETRY
SETTING & DATAVIEW
SENSOR SELECT
RF STATUS VIEW
VOICE TRIGGER
TELEMETRI RCV
BIND. 1
RX CURVE V3.98
TYPE : B
CURVE1 CH : 02
TYPE : B
CURVE2 CH : 05
TYPE : B
CURVE3 CH : 04
Otherwise, the left and right ailerons have different
control characteristics.
With the RX CURVE function you can manage the
control characteristics for up to three servos:
CURVE 1, 2 or 3 CH
Select the desired control channel (INPUT CH) of
the first servo.
The following setting in TYPE only pertains to the
channel selected here.
TYPE
Select the servo curve:
A: EXPO = -100 % and DUAL RATE = 125 %
The servo reacts strongly to movements of the
stick around the neutral position. As the rudder
throw increases, the curve becomes flatter.
B: Linear setting.
The servo follows the stick movement linearly.
C: EXPO = +100 % and DUAL RATE = 70 %
The servo reacts weakly to the stick movements
around the neutral position. As the rudder throw
increases, the curve becomes steeper.
Note:
The control characteristics programmed here
also affect the mapped receiver outputs.
5CH FUNCTION: "SERVO" or "SENSOR"
TELEMETRY
SETTING & DATAVIEW
SENSOR SELECT
RF STATUS VIEW
VOICE TRIGGER
TELEMETRI RCV
BIND. 1
RX CURVE V3.98
TYPE : A
CURVE1 CH : 02
TYPE : A
CURVE2 CH : 03
TYPE : B
CURVE3 CH : 04
5CH FUNCTION:SERVO
Some receivers have a specific servo connection
which has been made switchable rather than an
independent telemetry connection. Thus, for example,
on the GR-12 receiver included with the mx-12 HoTT
set, No. 33112, servo connector 5 has an extra "T"
mark and can be alternatively connected …
Servo
Sensor
OR
RX CURVE (EXPO)
TELEMETRY
SETTING & DATAVIEW
SENSOR SELECT
RF STATUS VIEW
VOICE TRIGGER
TELEMETRI RCV
BIND. 1
RX CURVE V3.98
TYPE : B
CURVE1 CH : 02
TYPE : B
CURVE2 CH : 03
TYPE : B
CURVE3 CH : 04
Value Explanation
Possible settings
Xx.xx Receiver’s
firmware version
None
CURVE1,
2 or 3 CH
Channel
assignment of the
respective curve
setting
1 … depending on
receiver
TYPE Curve type A, B, C
see figure
Expo = +100%
–100%
+100%
0
–100%
+100%
0
Expo = –100%
TYPE A
–100%
+100%
0
–100%
+100%
0
linear
–100%
+100%
0
–100%
+100%
0
TYPE B
TYPE C
DR = 125% DR = 70%
Servo travel
Control travel
Servo travel
Control travel
Servo travel
Control travel
Normally a non-linear control function, if applicable, is
used for the aileron (channel 2), elevator (channel 3)
and rudder (channel 4). These channel defaults also
correspond to the factory settings.
