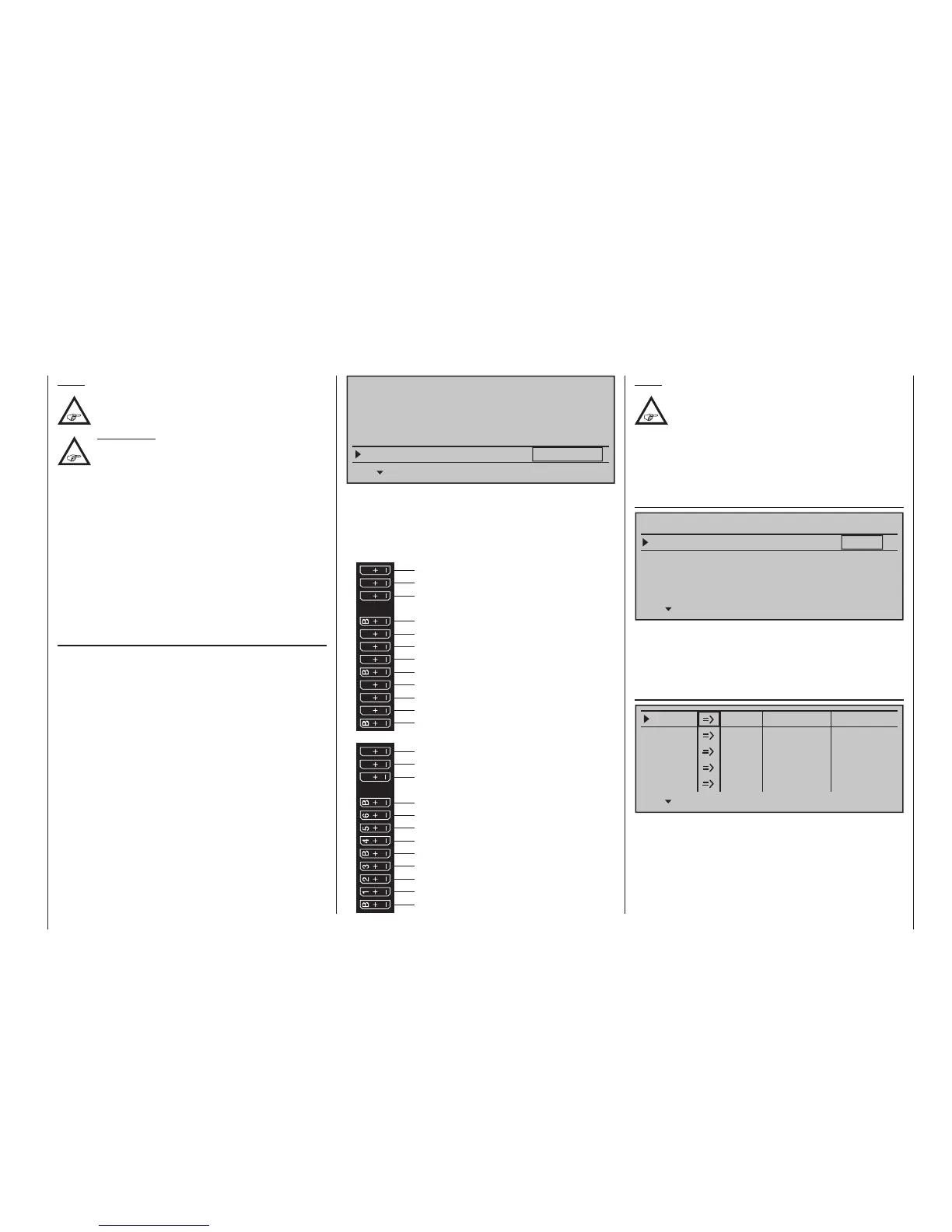

Programming examples - Helicopter models
Note:
More more information about the setting of
this "emergency shutoff", see the beginning
of the second following double-page.
Another tip:
Make a habit of giving all switches a common
switch-on direction; then a quick glance over
the transmitter prior to the ight should sufce – all
switches off.
Setting options for the "Autorotation C1 position",
"Motor stop", "Marking" and "Stick warning" are not
yet of particular interest …
… and the "Auto Trim" line should only be assigned
to a switch if "Initial trimming" is to be performed on
the helicopter in the context of a trimming flight. Fol-
lowing such a flight, this switch should be erased
once again, for reasons of safety.
Additional settings specific to helicopters are made in
the menu …
»Helicopter type« (page 108)
In the "Swashplate type" line, select control for
swashplate or pitch function. In this example:
"3Sv(2rol)".
The "Linearis. swashpl." line is not yet of interest.
In the "Rotor direction" line, it is established whether
the rotor – as viewed from above – turns to the right
(clockwise) or left (counter-clockwise). In other words,
whether it rotates counterclockwise or clockwise. In
this example "right".
Check the default for "Pitch min", which was adopted
from »General basic settings«, to confirm that the
entry "front" or "rear" is in keeping with personal pref-
erences or should be changed.
Linearis. swashpl.
Swashplate type
no
1 Servo
Rotor direction
right
HELTYPE
Pitch min. rear
SEL
Both "Expo throttle lim." as well as "Thr. limit warn-
ing", in bottom line of this display, are currently of no
interest.
By now, the servos should be plugged into the receiv-
er in the intended sequence:
Receiver power supply
Receiver power supply
13 14 T
15 16
S
77
8
9
10 11 12
Receiver power supply
Telemetry connection
Receiver power supply
free or aux. function
free or aux. function
SUMO / SUMI-connection
Receiver power supply
Receiver power supply
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or aux. function
free or aux. function
Tail rotor servo (gyro system)
Roll 1 servo
Pitch-axis 1 servo
free or speed governor
or aux. function
Roll 2 servo
free or aux. function
Throttle servo or speed controller
Gyro gain
Note:
Please note that on the newer Graupner-mc-
and mx- remote control systems, the rst
pitch servo and the throttle servo are
swapped in comparison to older systems.
Mix ratios and mix directions for swashplate pitch, roll
and nick servos are already pre-adjusted to +61 % in
the menu …
»Swashplate mixer« (page 224)
SWASH MIXER
Pitch
Roll
Pitch ax.
+61%
+61%
+61%
SEL
If the swashplate mixer should not follow stick move-
ments properly, first change the mixing directions
from "+" to "-" before changing servo directions in the
menu …
»Servo adjustment« (page 112)
0%
100%Servo 1
Servo 2
Servo 3
Servo 4
Servo 5
Rev cent.
100%
150% 150%
– travel + – limit +
0%
100%
100%
150% 150%
0%
100%
100%
150% 150%
0%
100%
100%
150% 150%
0%
100%
100%
150% 150%
This menu can also be used to adapt travel and direc-
tion for individual servos. However, one must attempt
to retain 100 % servo travel so as to achieve the best
possible resolution and control accuracy. The direc-
tion of travel is determined with "Rev." and, in the
process, make sure that the direction is correct. The
tail rotor servo must run so that the nose (!) of the
