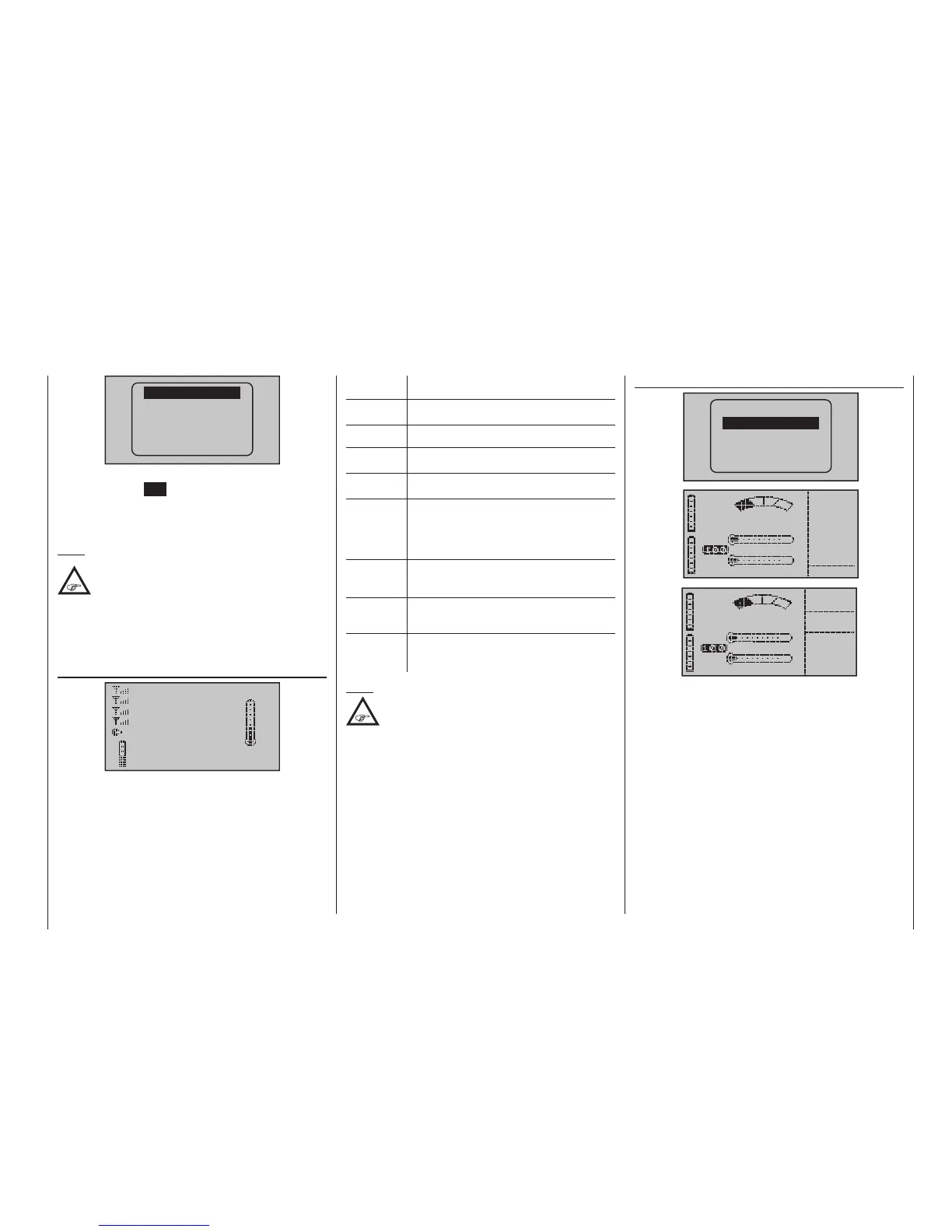

Transmitter description - Telemetry data display
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–SPG.:4.8 TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
GENERAL
ELECT. AIR
VARIO
GPS
RECEIVER
The selection can be confirmed right away by acti-
vating the centre SET key of the right touch pad or
by simply waiting until, after a brief pause, the main
display of the given selected sensor appears auto-
matically.
Note:
The sequence of the below described
displays is a consequence – starting from the
given main display – of taps on the key.
More details about the following named modules
can be found in the appendix and in Internet at
www.graupner.de in the web page for the given prod-
uct.
RECEIVER
RX–S QUA: 100%
RX–S STR: 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–VOLT:4.8 TMP
L–PACK: 10ms
CH OUTPUT TYPE:ONCE
R-LOW V:4.6 +22°C
This screen presents the »RX DATAVIEW« of the
Telemetry menu's »SETTING & DATAVIEW« sub-
menu, see page 246, with data processed and dis-
played graphically.
The displayed items are as follows:
Value Explanation
RX-S QUA signal quality in %
RX-S STR signal strength in %
RX-dBm Reception power in dBm
TX-dBm transmit power in dBm
L-PACK Indicates the longest time span in ms
in which data packages are lost in the
transmission from the transmitter to the
receiver.
RX-VOLT current operating voltage of the
receiver's power supply in volts
R-LOW V Lowest receiver operating voltage since
last startup, in volts
TMP the thermometer depicts the receiver's
current operating temperature
Note:
Detailed explanations of the “Value” column
quoted terms, see “RX DATA VIEW” page 246
GENERAL MODULE
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–SPG.:4.8 TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
RECEIVER
GENERAL
ELECT. AIR
VARIO
GPS
0.0V
BAT1
BAT2
0.0V T2 0°C
T1 0°C
E FUEL F
CELL.V
1:0.00
2:0.00
3:0.00
4:0.00
5:0.00
6:0.00
0
ON
0ml
0.0V
BAT1
BAT2
0.0V T2 0°C
T1 0°C
E FUEL F
ALT
0m
0m1
0m3
0.0A
POWER
0.0V
0
0ml
ON
If attached to the receiver, this screen will display
the data acquired by a General-Engine module, No.
33610, or a General-Air module, No. 33611. More
details about these modules can be found in the ap-
pendix or in Internet at www.graupner.de in the web
page for the given product.
Depending on how this module is equipped with sen-
sors, this screen can permanently display the data
shown in the table below.
The current voltage of up to two batteries (BAT1 and
BAT2), the measurement results of up to two tem-
perature sensors (T1 and T2) and a fill level gage for
the fuel tank.
