122 IconMaster Installation and Configuration Manual
Chapter 4: Router Connections

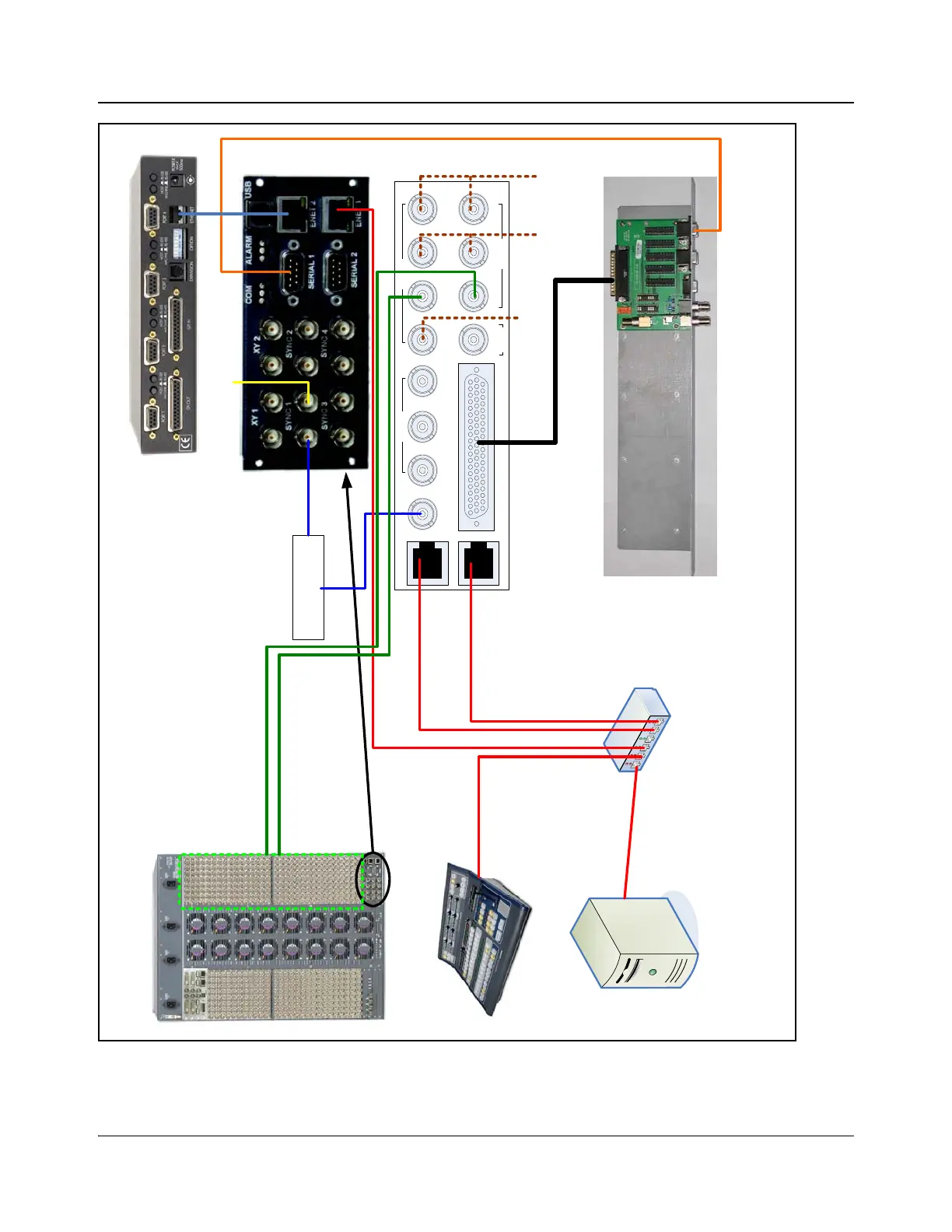

Figure 4-30. IconMaster System with External Platinum Router Using Ethernet Control, CENTRIO,
eBox, and Optional ICONM-BO-V Module
Genlock
Clean PGM PST
Squeeze
Bkgd
Bus A Key 1 Fill 2
Fill 1 Key 2Bus BPGM
MKE-3901-BM
Multi Function I/O
Outputs Inputs
InputsOutput
Ethernet 1
Ethernet 2
Optional ICONM-BO-V module
Ethernet switch
IconMaster
control panel
PC loaded with
IconMaster Soft Tools
Station Reference*
Ext Key 1 Ext Key 2
Connect to Ethernet 2
MKE breakout cable
165-000242-00
FX squeeze
background
Connect to RS232/422-E
* The same station reference must be used for all reference
inputs, either using loop thru or distribution amplifier.
Platinum router
Terminated
JLCooper eBox
CENTRIO output module
To Next Page
