IconMaster Installation and Configuration Manual 123
Chapter 4: Router Connections
4. Make Connections between CENTRIO Multiviewer and JLCooper eBOX
Before you can make any connections to an IconMaster, the JLCooper eBOX
must already be configured as desired. If your eBOX is already operational, you
do not need to configure it. If, however, your eBOX is not already operational,
you must install and configure it as desired for your facility. For information
about configuring your e-BOX, see your JLCooper eBOX documentation.
5. Make Connections between the Platinum and MKE-3901
1. On the Platinum router, connect the inputs to the input BNC connections on
the CENTRIO modules.
2. Terminate the loop-thru (XY) BNC connectors on the communications back
panel (PT-CBP).
3. Connect the first desired output on the PT-CBP to Input Bus A on the
MKE-3901.
4. Connect second desired output on the PT-CBP to Input Bus B on the
MKE-3901.
5. On the PT-CBP, connect the station reference to one connector on an
available Sync connection.
6. On the MKE-3901 back module, connect the signal Squeeze Bkgd input to
the output on the PT-CBP.
7. Connect an available serial port (SERIAL1 or SERIAL2) on the PT-CBP to
Serial Port E in the Multi Function I/O connector on the MKE-3901. This
can be done by direct connection or by ICONM-BO-V breakout module
connection. When using the ICONM-BO-V breakout module, either serial
port of the PT-CBP must be connected to the RS-232/422-E port on the
breakout module as indicated in Figure 4-31.

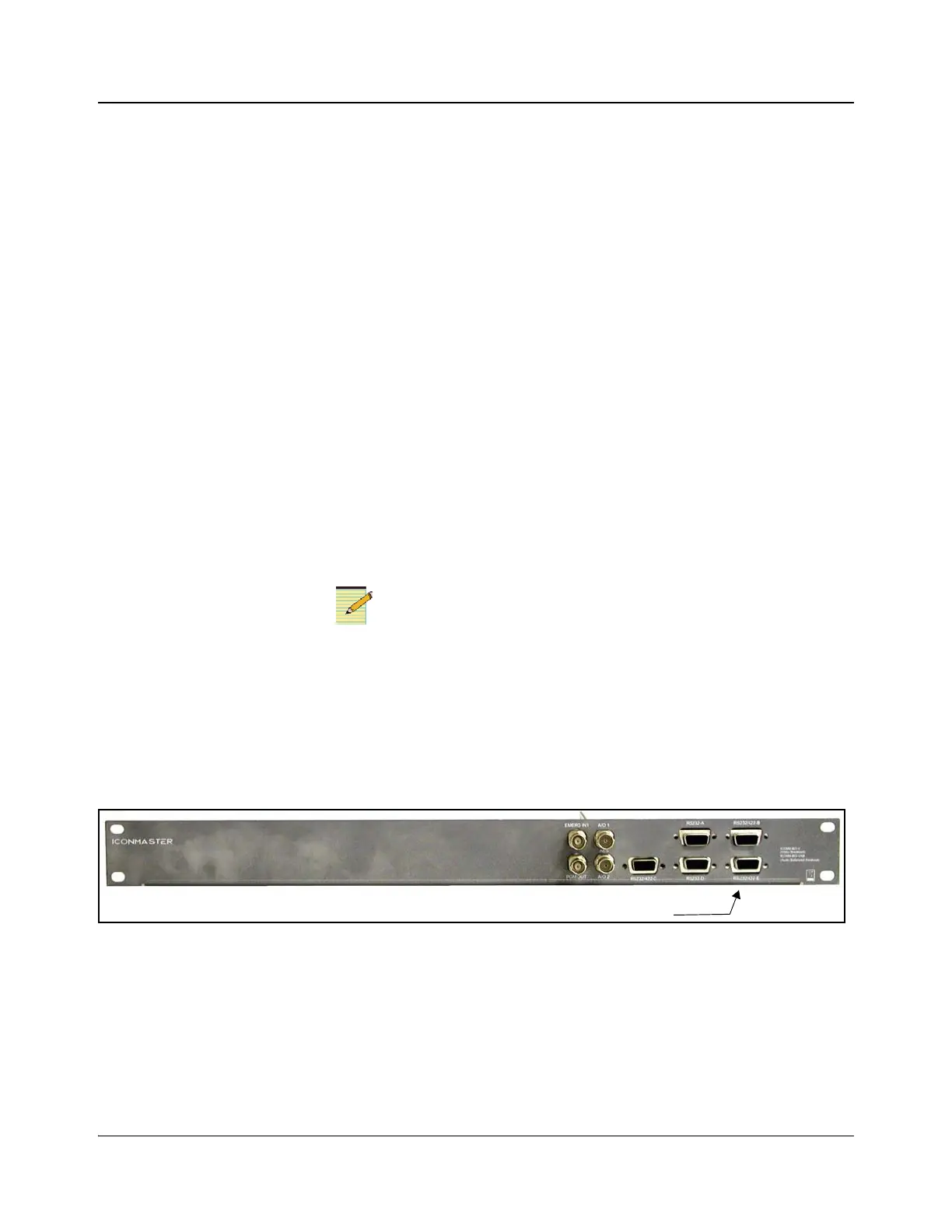

Figure 4-31. RS-232/422-E Port on the ICONM-BO-V Breakout Module
8. On the MKE-3901 back module, connect the Key 1 input source to Key 1
and Fill 1 as appropriate.
9. On the MKE-3901 back module, connect the Key 2 input source to Key 2
and Fill 2 as appropriate.
The Platinum router serial port baud rate must be set to 38400.
