IconMaster Installation and Configuration Manual 45
Chapter 2: Installation
GPI/GPO Connections

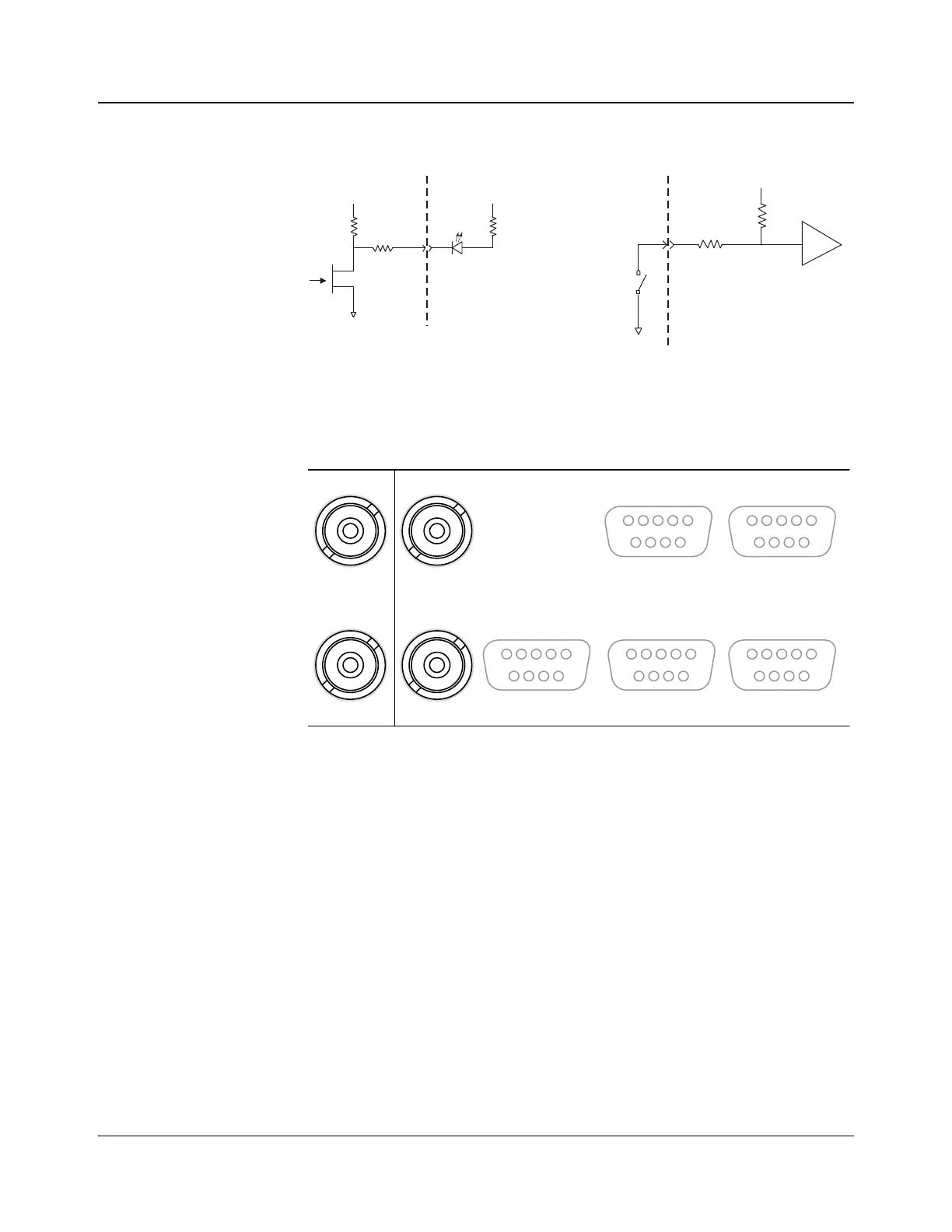

Figure 2-28. GPI and GPO (GPI Out) Connections
BNC Connectors
Figure 2-29. ICONM-BO-V BNC Connectors
Jumpers for AES Audio Over Impedance
The ICONM-BO-V video breakout module includes four jumpers (J1, J2, J3,
and J4), which are used to set the impedance of AES Audio-Over 1 and
Audio-Over 2. The orientation of the jumper pins in Figure 2-30 matches the
way you view them as you read the “J” labelling on the board.
TTL compatible
+5V
100
10k
+Vcc
**Max Vcc is
+5V
GPO GPI
ICONM-BO-V Video Breakout
PGM Out
Emerg In 1
AES
A/O 1
A/O 2
RS232/422-C RS232-D RS232/422-E
RS232/422-BRS232-A
