52 IconMaster Installation and Configuration Manual
Chapter 2: Installation

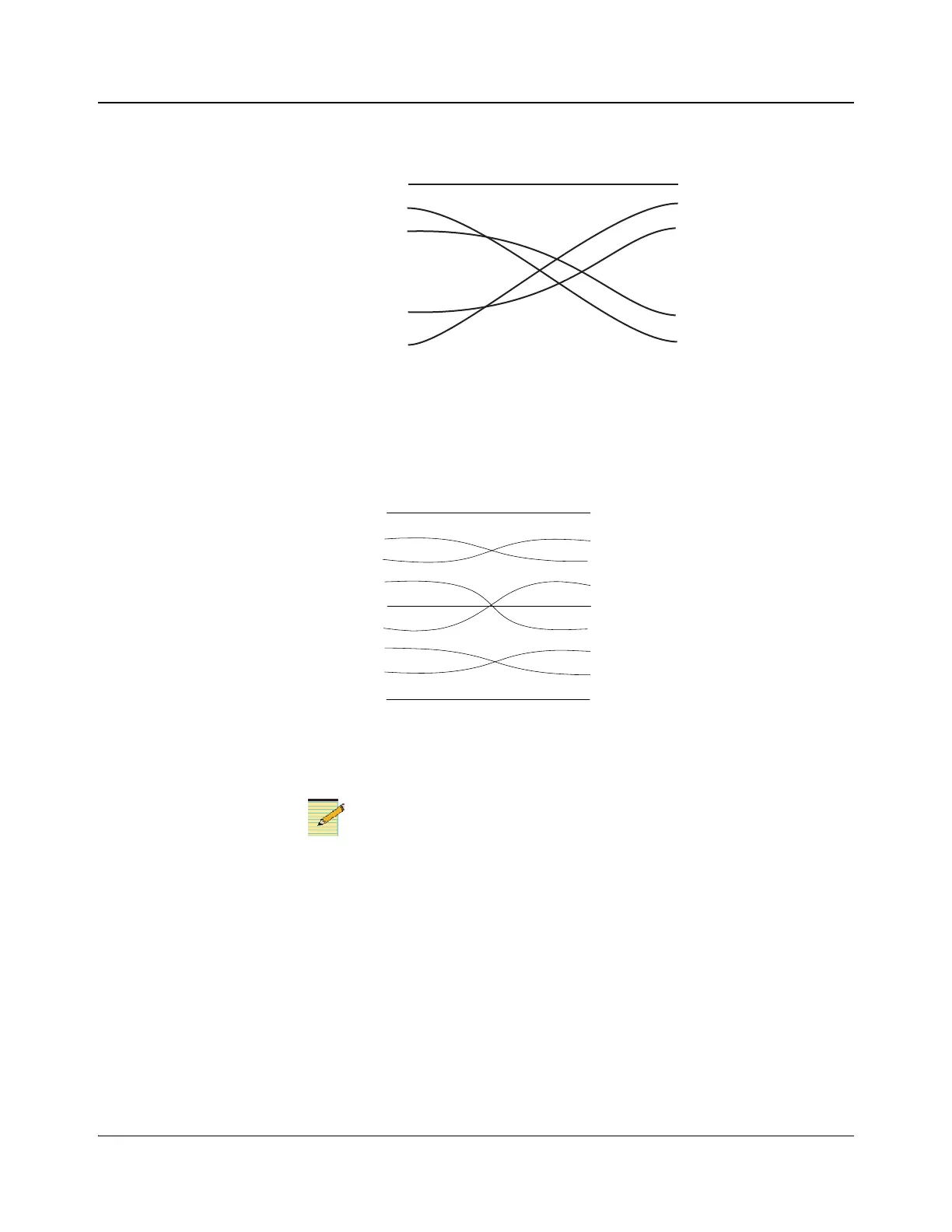

Figure 2-37. RS-422 IconMaster Port E to Integrator or Panacea Pin
Connections
Figure 2-38. RS-232 IconMaster Port B to Common PC Serial Port Pin
Connections
Note
If re-assigned to port A, use a straight-through connection instead
of this null-modem connection.
Integrator /
Panacea RS-422
1 GND
2 TX-
3 RX+
4
5
6
7 TX+
8 RX-
9
IconMaster
GND 1
TX- 2
RX+ 3
4
5
6
TX+ 7
RX- 8
9
IconMaster
1
2
3
4
5
6
7
8
9
PC 9-pin
RS-232 port
1
2
3
4
5
6
7
8
9
RxD
TxD
GND
RxD
TxD
GND
