Chapter 2: Installation
Connections with ICONM-BO-VAB Module
When using the ICONM-BO-VAB module, connect PGM Output on the
MKE-3901-BM to the PGM IN on the Video Bypass module using the
provided coax cable, as shown in Figure 2-45.

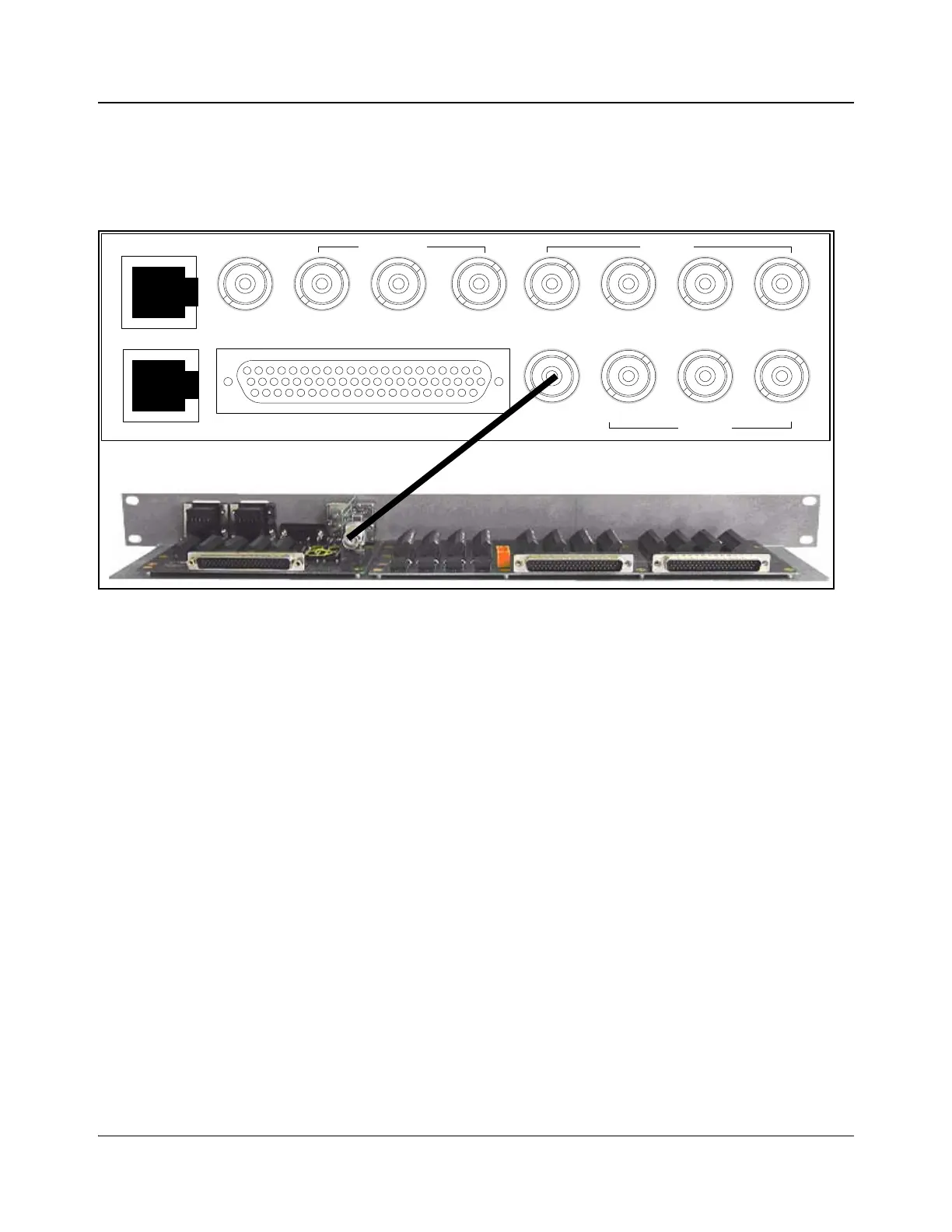

Figure 2-45. MKE-3901 Connections to the Video Relay Bypass Using the ICONM-BO-VAB
Genlock
Clean PGM PST
Squeeze
Bkgd
Bus A Key 1 Fill 2
Fill 1 Key 2Bus BPGM
MKE-3901-BM
Multi Function I/O
Outputs Inputs
Inputs
Output
Ethernet 1
Ethernet 2
